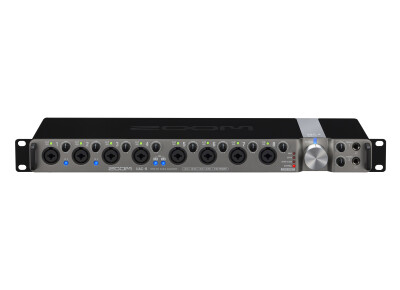

Zoom UAC-8
+

Zoom UAC-8

  • J'aime
  • Tweet
  • Pin it

UAC-8, Interface audionumérique USB de la marque Zoom appartenant à la série UAC.


test de la rédaction
Neuf à partir de 594 € Prix moyen : 621 €

Test Zoom UAC-8

Test de la Zoom UAC-8

Test de la Zoom UAC-8

On en a UAC ? Nous testions il y a un peu plus de six mois la première interface audio Thunderbolt de la marque japonaise Zoom, la TAC-2, qui à défaut d’être parfaite pouvait se targuer d’être la moins chère du marché. Depuis, le catalogue s’est étoffé, avec une version dotée de 8 préamplis en Thunderbolt, mais aussi en USB 3. C’est cette dernière qui nous intéresse aujourd’hui. Lire la suite…

Acheter neuf Zoom UAC-8

Univers Sons
(92 avis)
UAC-8 594 €
SonoVente
(107 avis)
UAC-8 594 €
Music Store
(407 avis)
UAC-8 USB Audio-Interface 598 €
Energyson
(22 avis)
UAC-8 699 €

Fiche technique Zoom UAC-8

  • Fabricant : Zoom
  • Modèle : UAC-8
  • Série : UAC
  • Catégorie : Interfaces audionumériques USB
  • Fiche créée le : 14/03/2014

La UAC-8 est une interface audio USB 3.0 disposant de 8 entrées et 10 sorties. Elle est compatible avec Windows et iOS.

Features

  • 18‐in/20‐out USB 3.0 SuperSpeed audio interface
  • Standalone mode allows use as an 8-channel mic preamp and A/D or D/A converter without connection to a computer
  • Support for recording and playback of up to 24‐bit/192kHz high‐resolution audio
  • Low latency audio streaming
  • 8 combo balanced XLR/TRS analog input connectors accept both mic and line‐level signal
  • High‐performance mic preamps with up to +60dB of amplification
  • Hi‐Z switches allow direct connection of electric guitar or bass (INPUT1, INPUT2)
  • Independent gain controls and clip LEDs for each input
  • Switchable +48V phantom power (INPUTS 1‐4, INPUTS 5‐8)
  • 10 balanced TRS output jacks for connection to mixers, amplifiers, self‐powered speakers, headphones, or effects devices
  • Dual front-panel 1/4" headphone outputs with dedicated volume controls
  • Large knob output volume control
  • 4x upsampling during A/D and D/A conversion for reduced noise and enhanced fidelity
  • Asynchronous transfer system unaffected by computer jitter
  • S/PDIF IN/OUT: 2IN / 2OUT, up to 24‐bit/192kHz
  • ADAT Optical IN/OUT: 2 IN / 2 OUT at 192/176.4kHz (S/MUX4 compatible), 4 IN/4 OUT at 96/88.2kHz (S/MUX compatible), 8 IN / 8 OUT at 48/44.1kHz
  • Word Clock in/out
  • Clock source indicator
  • MIDI in/out
  • Rack-mountable (1U space)
  • Robust metal housing
  • Works with all USB 3.0-equipped Mac and Windows computers and Apple iPad*

* Apple Camera Connection kit or Lightning to USB Camera Adapter required



Specifications

ANALOG INPUTS: INPUTS 1–8
Connectors:

XLR/TRS combo jacks
(XLR: 2 hot, TRS: TIP hot)

Input gain:

0–60 dB (1 dB steps)

Input impedance:

5 kΩ
1 MΩ (When IN1/IN2 Hi-Z on)

Maximum input level:

+13 dBu (XLR at 0 dBFS)
+21 dBu (TRS at 0 dBFS)

Phantom power:

+48 V

ANALOG OUTPUTS: MASTER OUTPUTS
L/R Connectors:

TRS jacks (balanced)

ANALOG OUTPUTS: LINE OUTPUTS 1-8
Maximum output level:

+14 dBu (at 0 dBFS)

Output impedance:

150 Ω

ANALOG OUTPUTS: PHONES 1/2
Connectors:

Standard stereo phone jacks
20 mW × 2 (into 32 Ω load)

Maximum output level:

+10 dBu

Output impedance:

33 Ω

DIGITAL IN/OUT: ADAT OPTICAL
Connectors:

ADAT Optical (lightpipe)
8 IN/OUT: 44.1 kHz/48 kHz
4 IN/OUT: 88.2kHz/96kHz, S/MUX compatible
2 IN/OUT: 176.4kHz/192kHz, S/MUX4 compatible

DIGITAL IN/OUT: S/PDIF
Connectors:

RCA (coaxial)

Supported sampling frequencies:

44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz

DIGITAL IN/OUT: WORD CLOCK
Connectors:

BNC

Supported sampling frequencies:

44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz

Output impedance:

75 Ω

OTHER
Frequency characteristics :

44.1 kHz: −1.0 dB, 20 Hz–20 kHz
96 kHz: −1.0 dB, 20 Hz–40 kHz
192 kHz: −1.0 dB, 20 Hz–60 kHz

Input conversion noise:

Measured EIN: 125 dB (IHF-A)
at 60dB, 150Ω input

Dynamic range:

AD: 120 dB typical (IHF-A)
DA: 120 dB typical (IHF-A)

Sampling frequencies:

192 kHz, 176.4 kHz, 96 kHz, 88.2 kHz, 48 kHz, 44.1 kHz

Bit depth:

24-bit

Interface:

USB 3.0 / 2.0

MIDI IN/OUT:

5-pin DIN jacks

Power supply:

AD-19 DC12V 2A AC adapter

External dimensions:

6.2 in. (D) × 19 in. (W) ×  1.8 in. (H)
157.65 mm (D) × 482.6 mm (W) × 46.03 mm (H)

Weight (main unit only):

4.4 pounds / 2.02 kg



Note: 0dBm=0.775Vrms

NUMBER OF RECORDING AND PLAYBACK CHANNELS
AUDIO INTERFACE AND STANDALONE MODES: At 44.1 kHz and 48 kHz :

Recording:   18 channels (ANALOG: 8, S/PDIF: 2, ADAT Optical: 8)
Playback:   20 channels (ANALOG: 10, S/PDIF: 2, ADAT OPTICAL: 8)

AUDIO INTERFACE AND STANDALONE MODES: At 88.2 kHz and 96 kHz:

Recording:   14 channels (ANALOG: 8, S/PDIF: 2, ADAT Optical: 4)
Playback:   16 channels (ANALOG: 10, S/PDIF: 2, ADAT OPTICAL: 4)

AUDIO INTERFACE AND STANDALONE MODES: At 176.4 kHz and 192 kHz:

Recording:   12 channels (ANALOG: 8, S/PDIF: 2, ADAT Optical: 2)
Playback:   14 channels (ANALOG: 10, S/PDIF: 2, ADAT OPTICAL: 2)

CLASS COMPLIANT MODE: At 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz:

Recording:   8 channels (ANALOG: 8)
Playback:   10 channels (ANALOG: 10)

UAC-8 SYSTEM REQUIREMENTS
Windows:

OS: Windows® 7 SP1 or later / 8 / 8.1 / 10 (32bit/64bit)
CPU: Intel® Core i3 or faster*
USB: USB 3.0/USB 2.0**

* Operation is not guaranteed with CPUs from Atom, Celeron or Pentium series or CPUs made by AMD.
** Only USB host controllers with Intel Chipsets are supported. Operation is not guaranteed when used with USB hubs or expansion cards.

Mac:

OS: Mac® OS X 10.8.5 or later / 10.9 / 10.10 / 10.11
CPU: Intel® Core i3 or faster
USB: USB 3.0/USB 2.0*

* Operation is not guaranteed when used with USB hubs or expansion cards.

iPad:

OS: iOS 7.1 or later

* Apple Camera Connection kit or Lightning to USB Camera Adapter required.

Source : https://www.zoom.co.jp/products/audio-converter/uac-8-usb-30-audio-converter
