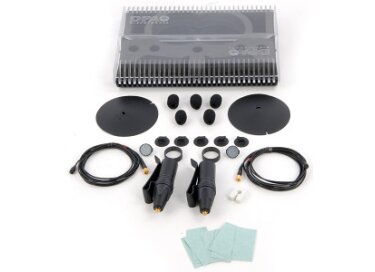

Acheter neuf DPA Microphones SMK-SC4060
- Thomann En stock / Livré en 48h 1 098,00 €
- Musik Produktiv En stock / Livré en 48h 1 098,00 €
- Bax Music Pas de stock / Livré en 6 jours 1 098,00 €
- Woodbrass Pas de stock / Livré en 11 jours 1 098,00 €
- Music Store Pas de stock / Livré en 48h 1 178,80 €
Annonces SMK-SC4060
Alerte nouvelle annonceImages
Fiche technique
- Fabricant : DPA Microphones
- Modèle : SMK-SC4060
- Série : d:screet
- Catégorie : Kits microphones
- Poids du colis : 520 g
- Fiche créée le : 21/06/2013
| Directional characteristics | Omnidirectional |
|---|---|
| Principle of operation | Pressure |
| Cartridge type | Pre-polarized condenser element with vertical diaphragm |
| Frequency range, ± 2 dB | Soft boost grid: 20 Hz - 20 kHz, 3 dB soft boost at 8 - 20 kHz, High boost grid: 20 Hz - 20 kHz ±2 dB, 10 dB boost at 12 kHz |
| Sensitivity, nominal, ±3 dB | 20 mV/Pa; -34 dB re. 1 V/Pa |
| Equivalent noise level A-weighted | Typ. 23 dB(A) re. 20 µPa (max. 26 dB(A)) |
| Equiv. noise level ITU-R BS.468-4 | Typ. 35 dB (max. 38 dB) |
| S/N ratio, re. 1 kHz at 1 Pa (94 dB SPL) | 71 dB(A |
| Total harmonic distortion (THD) | <1% THD up to 123 dB SPL peak |
| Dynamic range | Typ. 100 dB |
| Max. SPL, peak before clipping | 134 dB |
| Output impedance | 30 - 40 Ohm |
| Cable drive capability | Up to 300 m (984 ft) |
| Power supply | For wireless systems: Min. 5 V – max. 50 V through DPA adapter; with DAD6001: 48 V phantom power ±4 V. |
| Connector | MicroDot |
| Weight | 7.5 g (0.26 oz) incl. cable and MicroDot connector |
| Microphone length | 12.7 mm (0.5 in) |
| Cable length | 3 m (9.4 ft) |
| Sensitivity selection tolerance (at 1 kHz) | ± 1.5 dB |
Source : http://www.dpamicrophones.com/en/products.aspx?c=item&category=130&item=24083
