ST2011C, Kit Microphones de la marque DPA Microphones appartenant à la série d:dicate.

Neuf à partir de 1 549 € prix moyen : 1 575 €

Fiche technique DPA Microphones ST2011C

  • Fabricant : DPA Microphones
  • Modèle : ST2011C
  • Série : d:dicate
  • Catégorie : Kits Microphones
  • Fiche créée le : 17/07/2015
Directional pattern Cardioid
Principle of operation Pressure gradient, with interference tube
Cartridge type Pre-polarized condenser, Twin Diaphragm Capsule
Frequency range 20 Hz - 20 kHz
Frequency range, ± 2 dB, at 30 cm 50 Hz - 17 kHz with 3 dB soft boost at 12 kHz
Sensitivity, nominal, ± 2 dB at 1 kHz 10 mV/Pa; -40 dB re. 1 V/Pa
Equivalent noise level, A-weighted Typ. 20 dB(A) re. 20 µPa (max. 23 dB(A))
Equivalent noise level, ITU-R BS.468-4 Typ. 33 dB (max. 36 dB)
S/N ratio (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL) Typ. 74 dB(A)
Total Harmonic Distortion (THD) at 1 kHz < 1 % up to 137 dB SPL peak
Dynamic range Typ. 117 dB
Max. SPL, peak before clipping 146 dB
Minimum load impedance 2 kohm
Output impedance < 200 ohm
Cable drive capability 100 m (328 ft)
Output balance principle Impedance balancing with Active Drive
Common Mode Rejection Ratio (CMRR) > 50 dB
Power supply (for full specifications) 48 V Phantom power (± 4 V)
Current consumption 2.8 mA
Connector XLR-3M. Pin 1: shield, Pin 2: signal + phase, Pin 3: - phase
Color Matte black
Weight 64 g (2.3 oz)
Microphone diameter 19 mm (0.75 in)
Microphone length 92 mm (3.6 in)
Output voltage, RMS > 4 V
Polarity +V at pin 2 for positive sound pressure
Temperature range -40 °C to 45 °C (-40 °F to 113 °F)
Relative Humidity (RH) Up to 90%
Sensitivity selection tolerance (at 1 kHz) ± 1.5 dB

Source : http://www.dpamicrophones.com/en/products.aspx?c=Item&category=123&item=24424

Distribué par Audio 2

»

Acheter neuf DPA Microphones ST2011C

Le Microphone
(22 avis)
ST2011 C - COUPLE STEREO COMPACT 1 600 €
Woodbrass
(420 avis)
St2011c 1 549 €

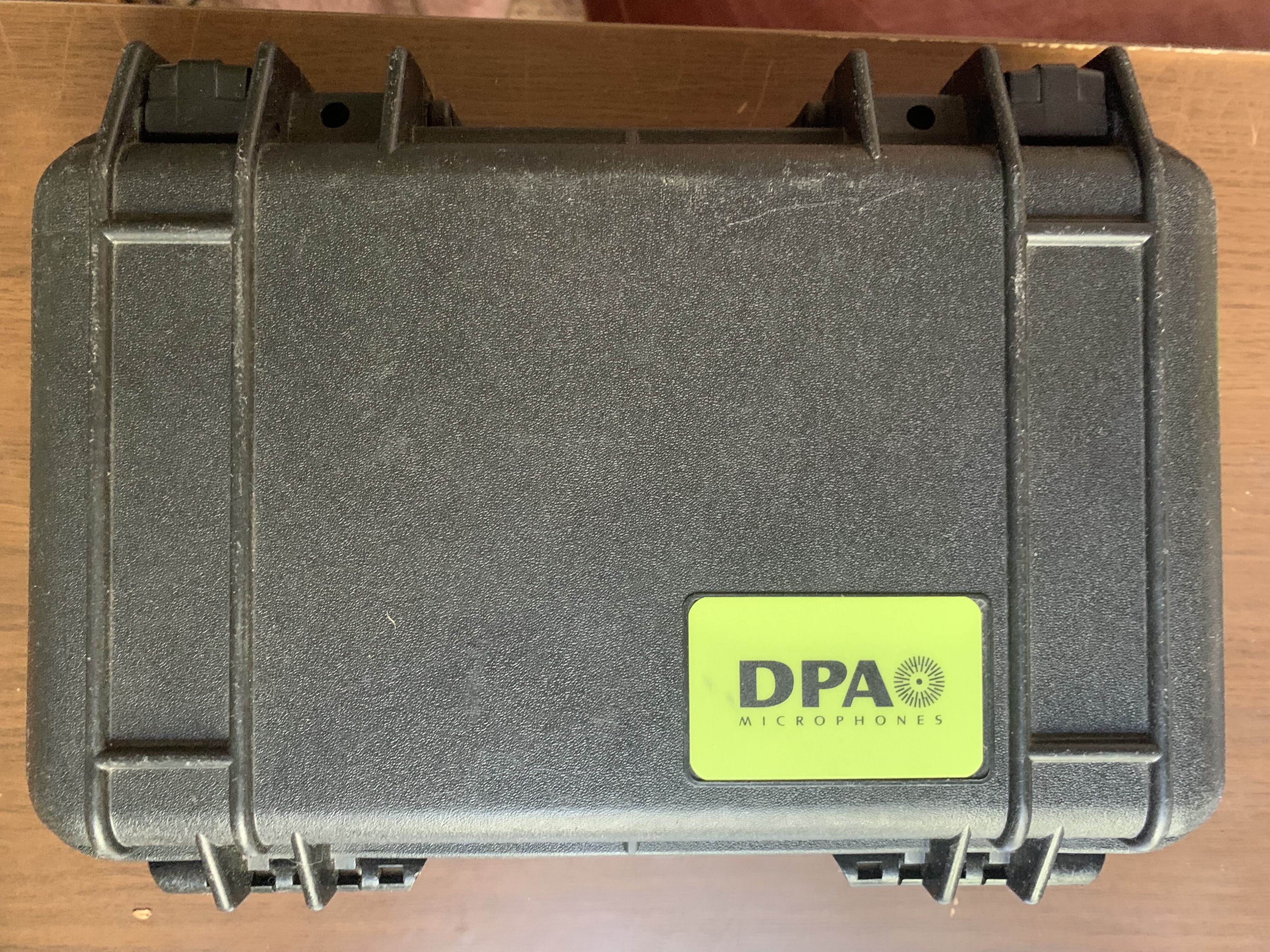

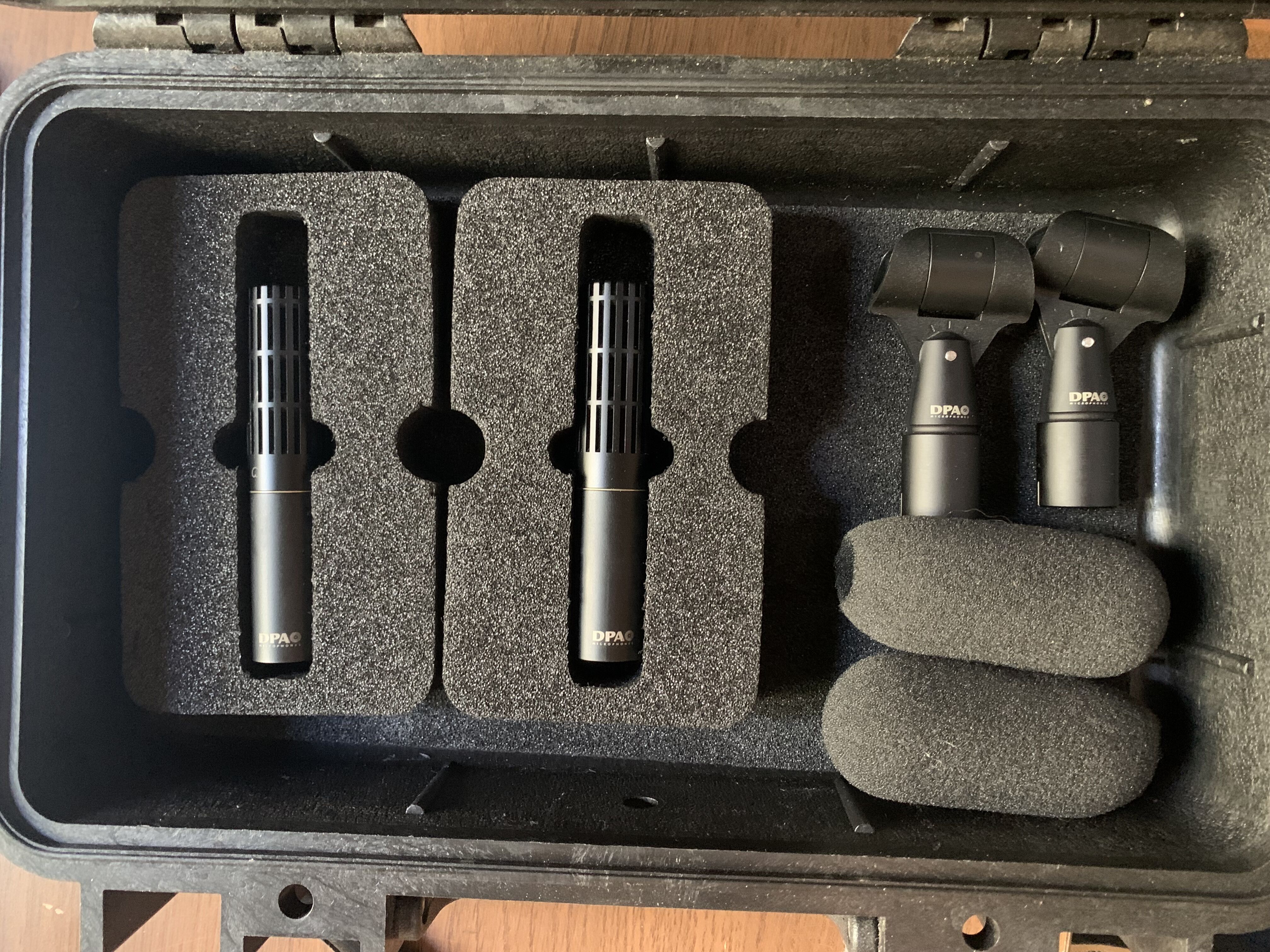

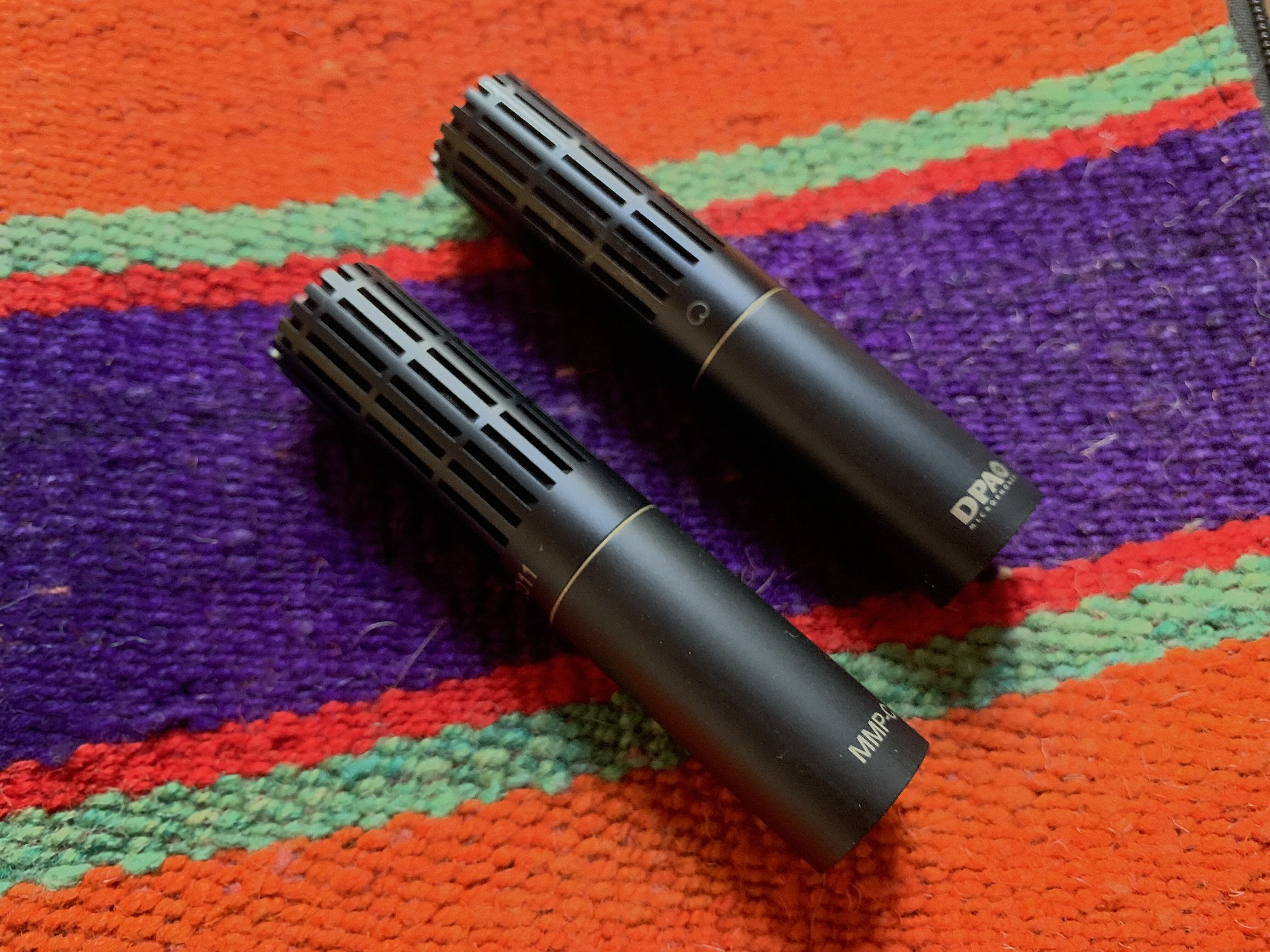

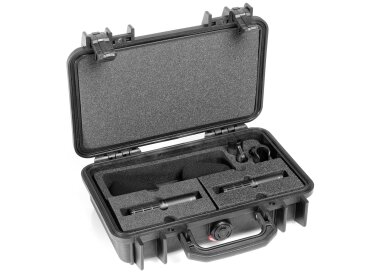

Images DPA Microphones ST2011C
