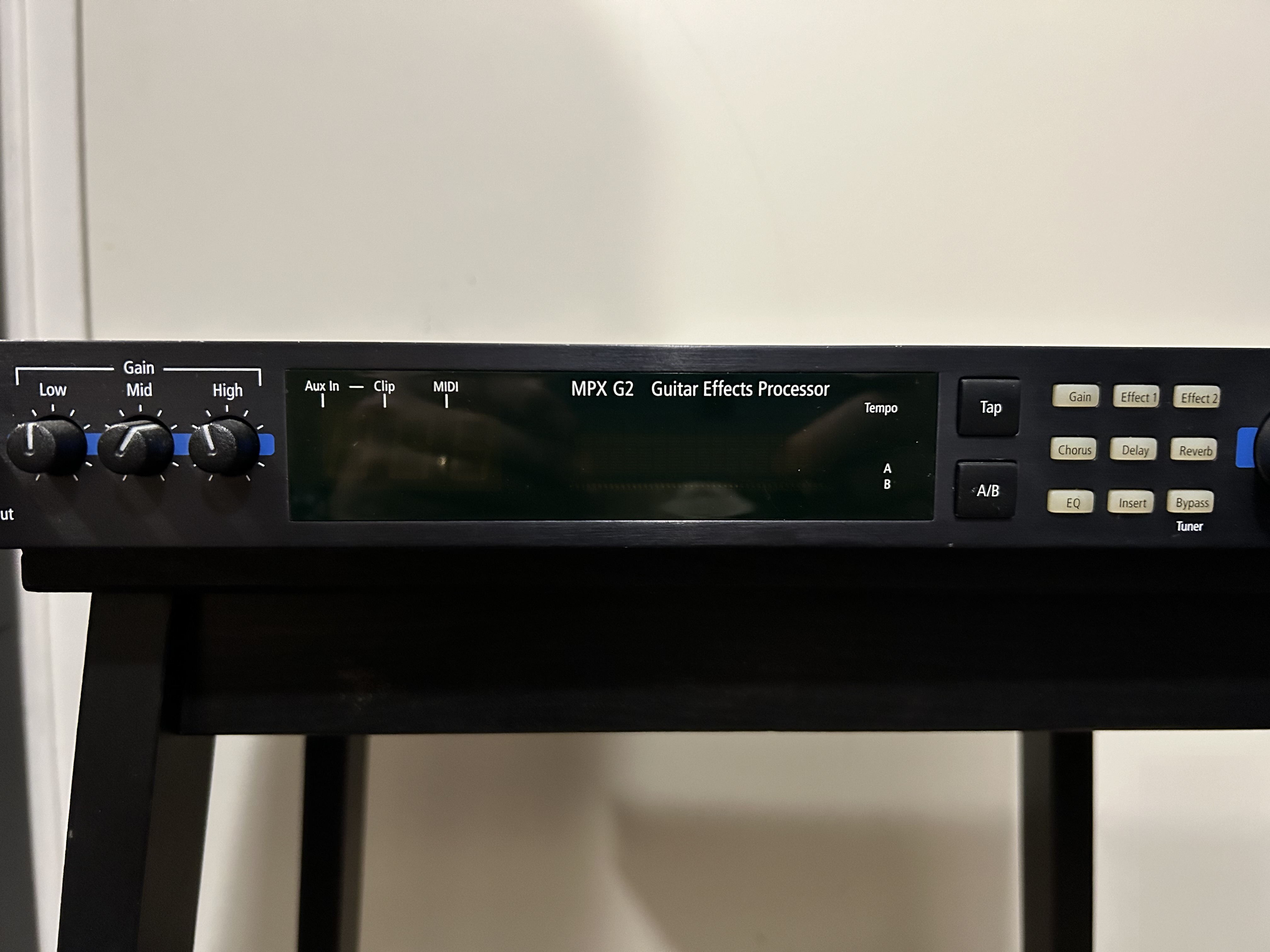

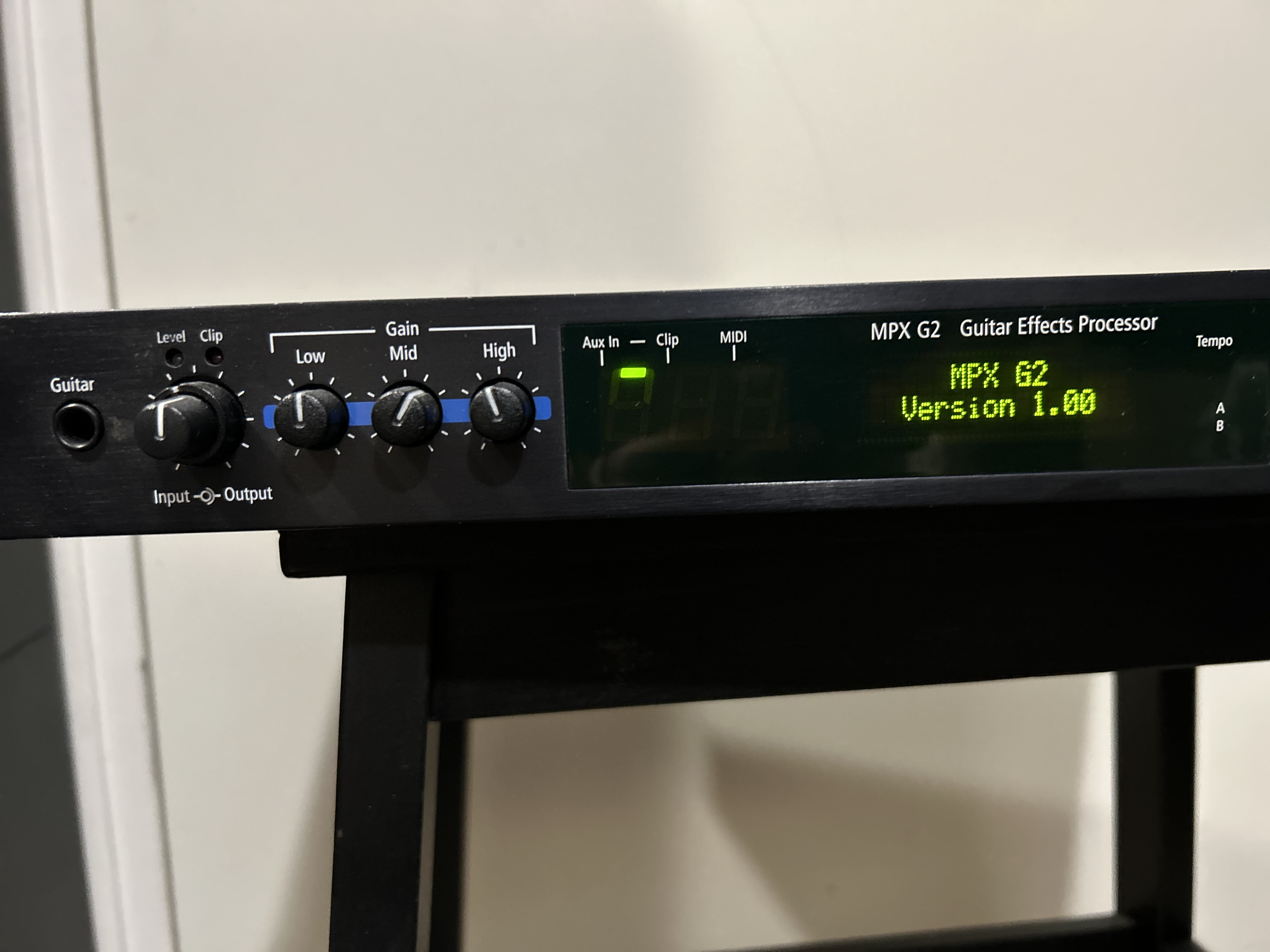

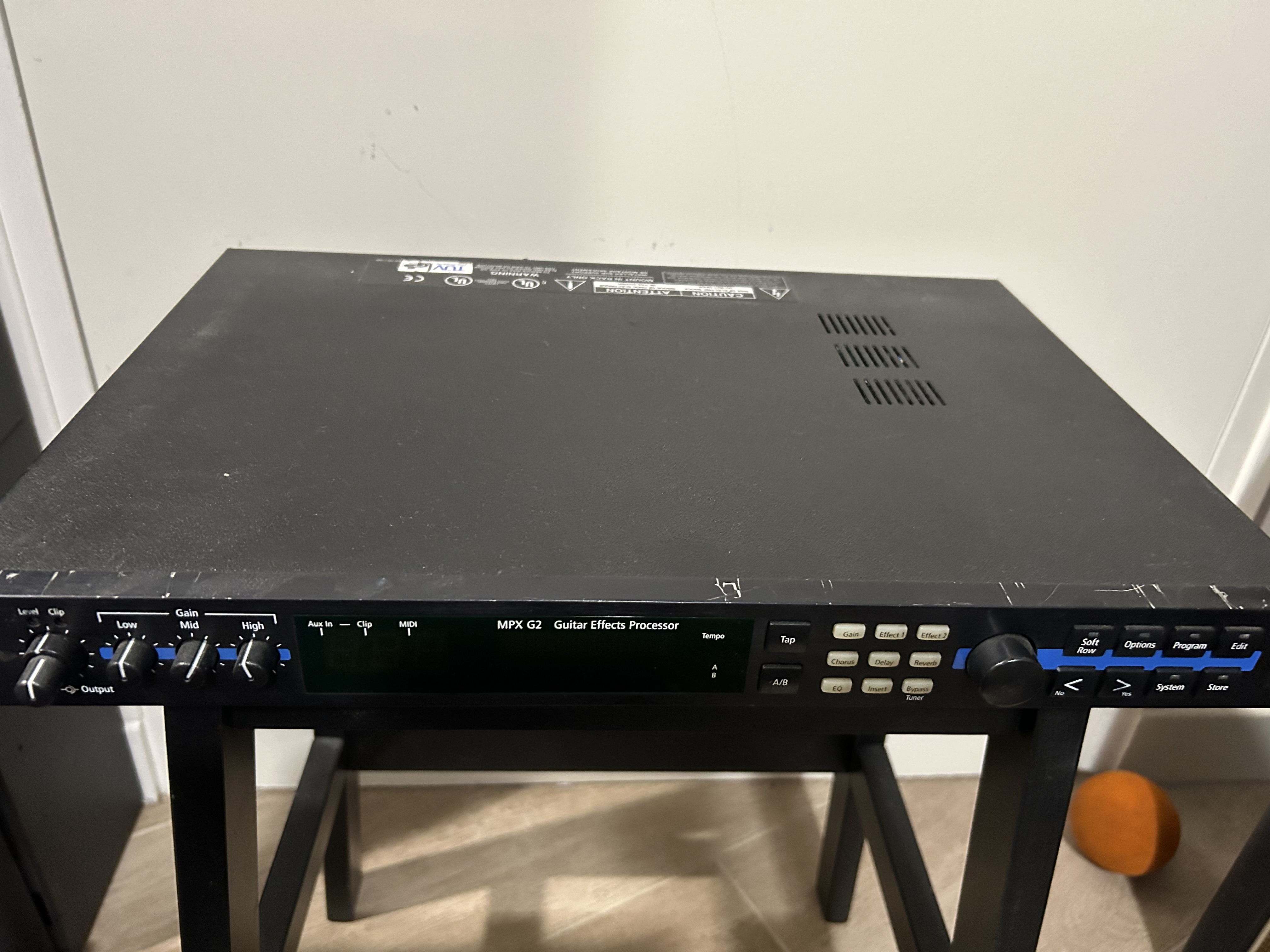

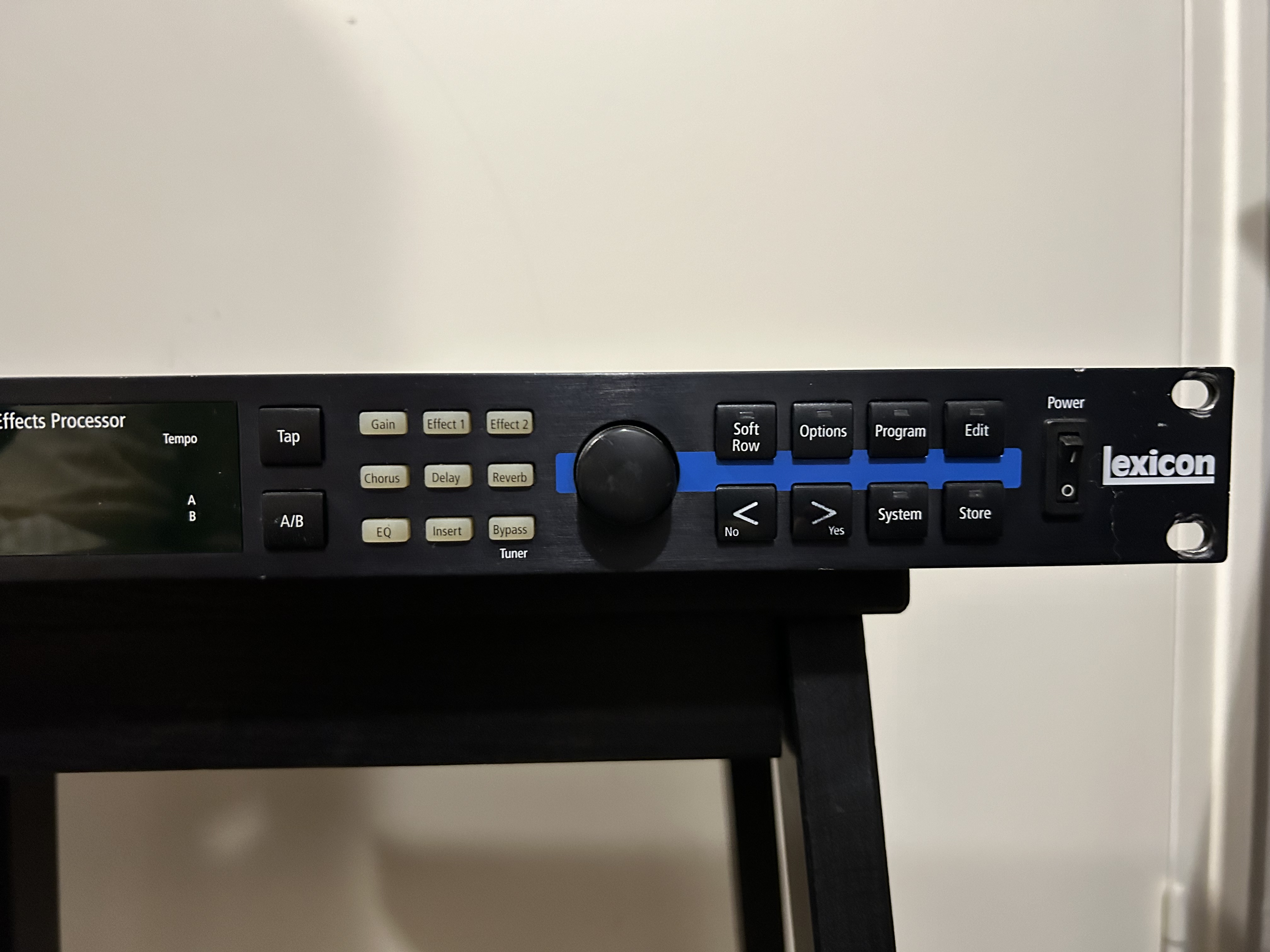

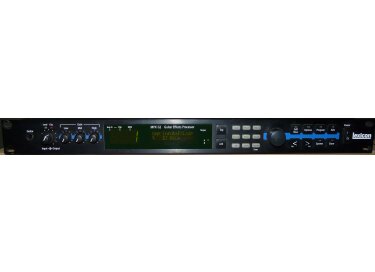

Lexicon MPX G2

Features:
World-class Lexicon reverb: Plate, Gate, Hall, Chamber, and
Ambience
• 2 DSP engines including Lexicon’s proprietary LexiChip®
• 24-bit A/D and D/A
• 250 presets; 50 user programs
• Lexicon’s analog distortion technology Dynamic Gain for
screaming overdrive and distortion
• Two separate audio paths to place effects both in front of the
amp and in its effects loop
• Use without an amp as a stand-alone preamp with effects
• Over 70 effects
• Balanced analog inputs and outputs (XLR and 1/4”)
• Tap Tempo for instant setting of delay and modulation times
(may be set using footswitch)
• Full MIDI control
• Internal power supply
• Optional MPX R1 remote controller

Specs:

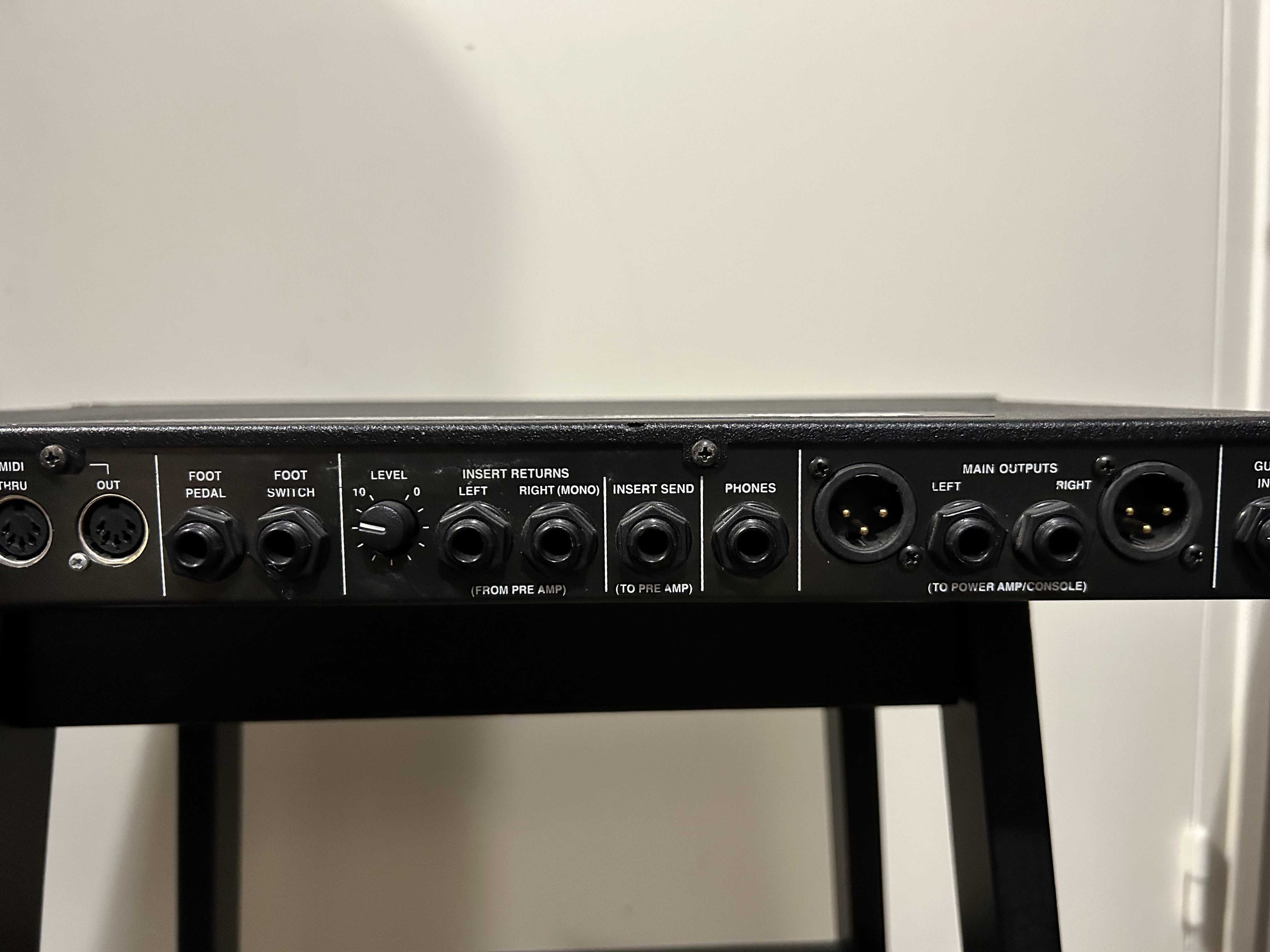

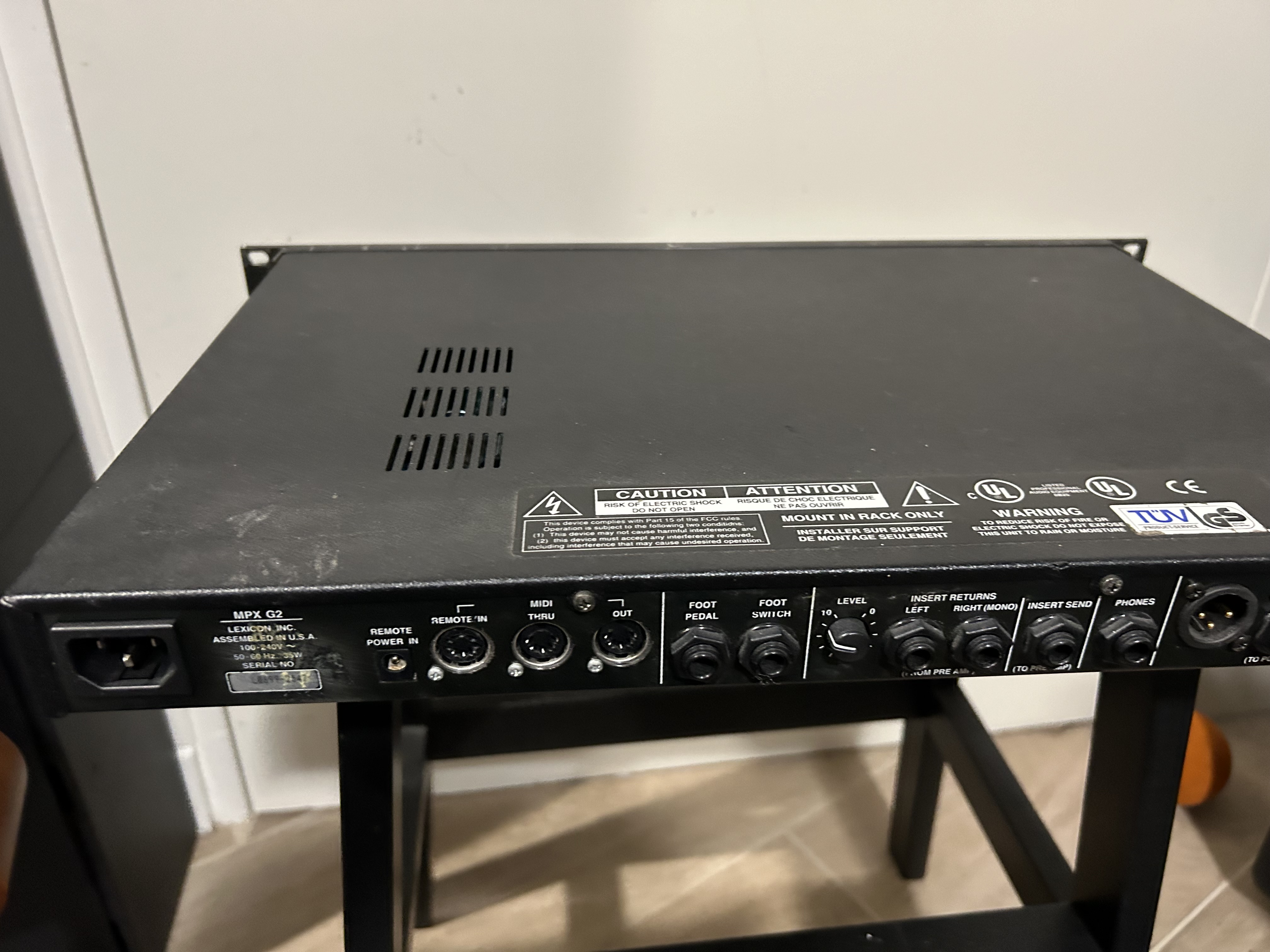

Instrument Input: Mono 1/4”
Input Level: +2.2dBu to +10dBu
Input Impedance: 1megΩ, unbalanced
Return Inputs: Stereo 1/4”
Input Level: -10dBu to +18dBu (+4 nominal inputs)
Input Impedance: 50kΩ, unbalanced
Send Output: Mono 1/4” unbalanced
Output Level: +4dBu to +18dBu, unbalanced
Output Impedance: 100kΩ, unbalanced
Analog Audio Output: XLR and 1/4” balanced (T/R/S)
Output Level: +18dBu, balanced; +21dBu, unbalanced
Output Impedance: 600Ω, balanced; 100kΩ, unbalanced
Conversion: 24-bit A/D; 24-bit D/A
Internal Audio DSP: 32-bit
Frequency Response: 20Hz - 20kHz ±1dB
THD + Noise: <0.01%, 1kHz
Dynamic Range: A/A: 97dB typical,
20Hz - 20kHz, unweighted

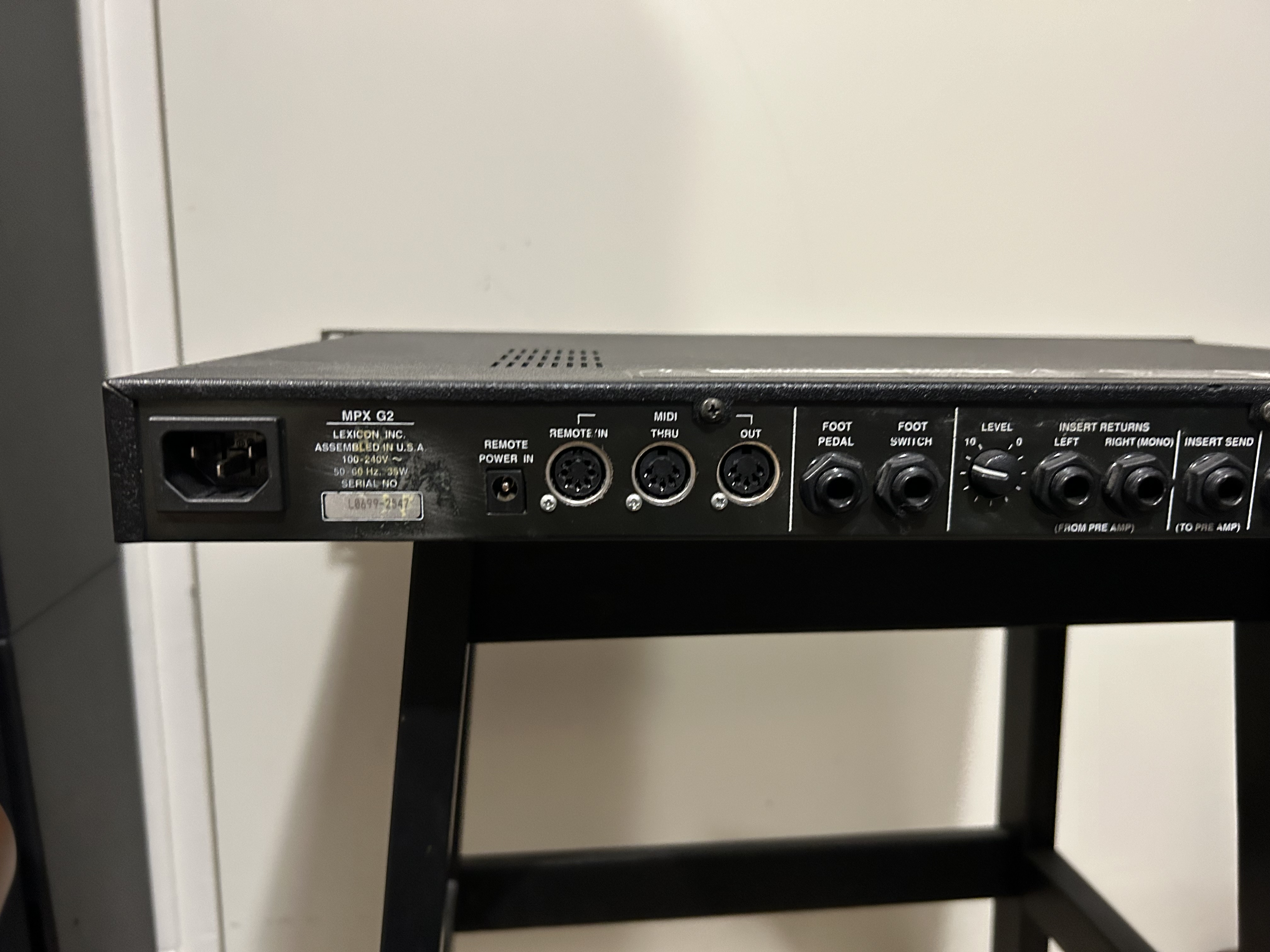

MIDI Interface: 7-pin DIN connector for MIDI IN and powered bidirectional remote; 5-pin DIN connectors for MIDI THRU and OUT
Footswitch: 1/4" T/R/S connector for three independent footswitches
Footpedal: 1/4" T/R/S connector (10kΩ - 100kΩ impedance)
Power Requirements: 100 - 240 volts AC; 50 - 60Hz; 25 watts (3-pin IEC connector)
Remote Power In: 2.5 mm 9 volts AC (not included)
Dimensions: 19" W x 1.75" H (1U) x 13" D (483 x 45 x 330 mm), rack mount standard
Weight: 7.125 lbs. (3.2 kg)
Operating Temperature: 32° to 104°F (0° to 40°C)
Maximum Humidity: 95% without condensation
