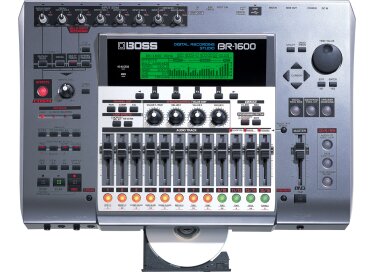

Boss BR-1600CD Digital Recording Studio

• Fabricant : Boss
• Modèle : BR-1600CD Digital Recording Studio
• Série : BR
• Catégorie : Studios intégrés numériques
• Fiche créée le : 05/01/2004

Le BR-1600CD est un studio intégré numérique. Il possède 16 pistes mais aussi 256 pistes virtuelles. Il est sorti en 2003.

Features

• 16-track (256 V-Track) digital studio with 80GB hard drive and CD-R/RW drive
• Record all 8 XLR inputs simultaneously—ideal for tracking live performances
• Powerful onboard effects including COSM modeling for guitar, bass and vocals
• New Vocal Tool Box with auto pitch correction and Harmony Sequence function
• 16 individual Track EQs, plus 8 dedicated compressors
• Mastering Tool Kit with multi-band compression for loud and punchy CDs
• Create backing tracks quickly via independent Drum/Bass and Loop Phrase tracks
• USB port for easy data exchange, plus V-LINK video control*
• COSM models added (derived from BOSS’s GT-6B)
• Enhanced Vocal Tool Box for better vocals and backings
• MIDI Slave capable for control from external MIDI devices
• BR-1180CD/1200CD data compatible (V2 firmware)

General Specs

• Tracks:
• Track: 16
• V-Track: 256 (16 V-Tracks per each Track)
• Up to 8 tracks can be recorded simultaneously, and up to 16 tracks can be played back simultaneously.
• Maximum Useful Capacity/Recording Time:
• Internal Hard Disk: 40 GB
• Recording Time: 120 hours (conversion in one track)
• Display: 130 x 36 mm (Backlit LCD)
• Connectors:
• Inputs: Guitar/Bass, Mic 1-8 (XLR), Input 1-8 (1/4"), Digital In
• Outputs: Line Out (2x RCA), Phones1-2, Digital Out
• Controls: Foot SW, EXP Pedal
• MIDI: In, Out
• USB: B Type
• DC In

Technical Specs

• Signal Processing:
• AD Conversion:24 bit, AF Method (Guitar/Bass), 24 bit, â–³Σ Modulation (VOCAL, MULTI-TRACK, STEREO TRACKS)
• DA Conversion: 24 bit, â–³Σ Modulation
• Internal Processing: 24 bit (digital mixer section)
• Recording Data:16 bit linear
• Sample Rate: 44.1 kHz
• Frequency Response: 20 Hz to 20 kHz (+1/-3 dB)
• Total Distortion: 0.02 % or less
• Nominal Input Level (Variable):
• Guitar/Bass: -10 dBu
• Mic 1-8: -40 dBu
• Input 1-8: -10 dBu
• Input Impedance:
• Guitar/Bass: 1 MOhm
• Mic 1-8: 12.5 KOhms (Hot-Cold), 6.5 KOhms (Hot-Gnd, Cold-Gnd)
• Input 1-8: 22 KOhms
• Nominal Output Level (Line Out): -10 dBu
• Output Impedance:
• Line Out: 2 KOhms
• Phones 1,2: 100 Ohms
• Recommended Load Impedance:
• Line Out: 20 KOhms or greater
• Phones 1,2: 8 to 50 Ohms
• Residual Noise Level (Line Out): -90 dBu or less
• Power Supply: DC 12V (AC Adaptor Roland PSB-7U)
• Power Consumptio: 3A
• Dimensions (WxDxH): 494 x 339 x 99 mm / 19 1/2 x 13 3/8 x 3 15/16 inch
• Weight: 4.9 Kg / 10 lb 13 oz

Source : https://www.boss.info/us/products/br-1600cd/specifications/
