- Fabricant : Decibel Eleven
- Modèle : Hot Stone HC
- Catégorie : Alimentations pour pédales
- Fiche créée le : 12/07/2012

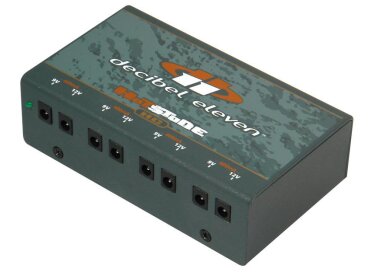

The Hot Stone HC features 4 isolated and regulated high current outputs, super efficient Toroidal transformer and short circuit protection on all outputs.
Features
- 4 Isolated, 400mA sections at 9V and 12VDC – for powering high current pedals with no hum or interaction including Eventide, Strymon, TC Electronic Nova, Line 6 modelers (4 button), Boss Twin and more
- 8 total available outlets – all can be used simultaneously.
- Toroidal transformer with additional magnetic shielding – no stray magnetic fields.
- Short circuit protection on all outlets – cable shorts won't harm outputs.
- Outputs can be combined for 18V or 24VDC* – for powering MXR Flanger or EHX Deluxe Memory Man and more
- Heavy duty chassis with 2mm steel – built like a tank
- All outputs capable of meeting full rated currents simultaneously without ripple – 1600mA total
- 5 year warranty
* With voltage doubling cable
Specifications
Outputs
All outlets: 5.5 x 2.1mm barrel connectors, center negative.
All outlets: regulated and filtered DC voltage.
All outputs: short circuit protected.
Outlet 1-2: 9V and 12V, 400mA
Outlet 3-4: 9V and 12V, 400mA
Outlet 5-6: 9V and 12V, 400mA
Outlet 3-8: 9V and 12V, 400mA
Input
Detachable IEC line cord
120V 50/60Hz (North American model)
230V 50/60Hz (Europe/Australian model)
Included Cables
(4) 5.5 x 2.1mm
(4) 5.5 x 2.5mm
Physical Dimensions & Weight
(W x D x H): 5.83" x 3.46" x 1.73"
Weight: 2.6 lbs
»
