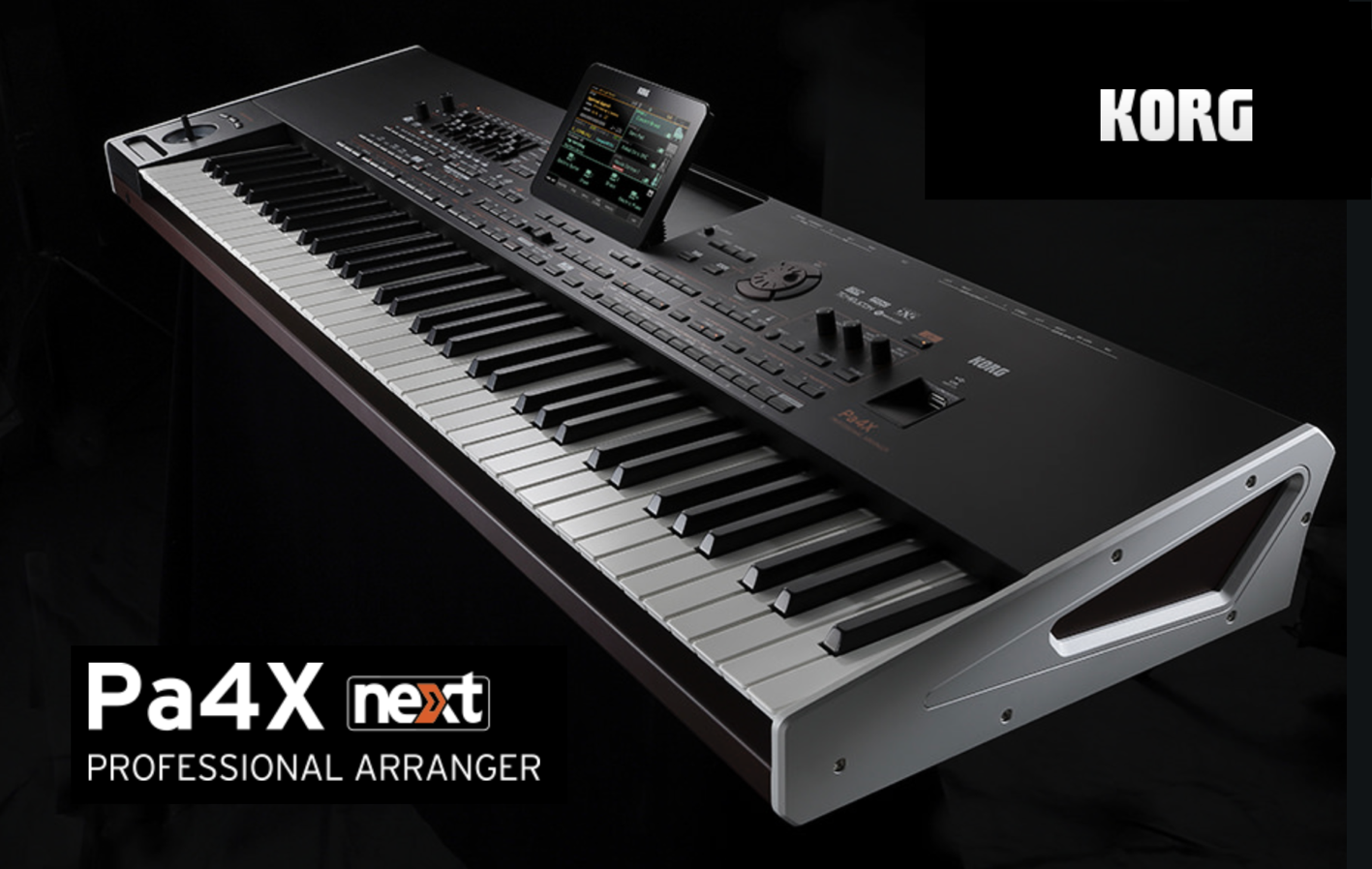

Korg Pa4X 76

• Fabricant : Korg
• Modèle : Pa4X 76
• Série : Pa4X
• Catégorie : Claviers arrangeurs
• Poids du colis : 22 kg
• Fiche créée le : 03/09/2015

76-key professional arranger keyboard

76 (E1 – G7) Semi–weighted keys with Velocity and Aftertouch

System

Upgradable Operating System

Multitasking, load while play feature

Sound Generator

EDS-X (Enhanced Definition Synthesis-eXpanded)

Filters with Resonance - Three band EQ for each track

Polyphony

128 Voices, 128 Oscillators

Effects

Accompaniment/Song: 4 Insert Effects; 3 Master Effects (142 Types)

Keyboard Tracks: 1 Insert Effect; 2 Master Effects (142 Types)

Final Mastering Effects: Waves Audio Ltd. MAXX Suite (Includes MaxxEQ™, MaxxBass™, MaxxTreble™, MaxxStereo™, MaxxVolume™)

Voice Processor Technology by TC Helicon®

Four-part Harmonizer, Double, µMod, Reverb, Delay, Filter, HardTune, Pitch Correction;

plus Compressor, EQ, Gate (Adaptive Mic Setting on the Mic input)

Sounds / Drumkits

Factory: More than 1,500 Factory Sounds including a new multilayer Stereo Piano with damper/body resonance, GM/XG sound sets and more than 90 Drumkits* including Ambient Drums

User Area: 512 Sounds, 128 Drumkits

Digital Drawbars: 9 Footages, Percussion, Key On/Off, Leakage (Effect section includes rotary speaker)

Defined Nuance Control (DNC) Technology

Natural Ambience Drums Sound

Full Sounds/Drumkits editing capability

User PCM RAM Memory: 400 MB

Sampling

Load KORG, Wav, AIFF and SoundFont™ formats

Save KORG, Wav and AIFF formats

Full Edit, Time Slice, Sampling feature

Styles

More than 500 preloaded Styles, freely reconfigurable

1,872 locations including the User banks and Direct function

Eight Style tracks, 4 Keyboard Sets, 4 Pads and one Style Setting per Style

Guitar Mode 2, Parallel and Fixed NTT

Style Record with Step Record, Track and Event Edit functions

Style controls: 3 Intros, 4 Variations, 4 Fills, Break, 3 Endings, Synchro Start, Synchro Stop, Tap Tempo/Reset, Bass Inversion, Auto Fill, Manual Bass, Memory, Accompaniment Mute, Drum Mapping, Snare & Kick Designation, Style to KBD Set Mode

Chord Sequencer

Chord Sequence recorder in Style Play mode

Chord Sequence save in Style and SongBook entries

Edit functions: delete, copy from Style/SongBook, import/export from/to SMF

Keyboard Set Library

Memorize keyboard tracks settings

1,584 locations including the User banks and Direct function

“My Setting” special Keyboard Set

Song Play

Patented XDS Crossfade Dual Sequencer Player with X-Fader Balance control

Supported formats: MID, KAR, MP3 + lyrics, MP3+G

2 Players with separate Select, Start/Stop, Home, Rewind and Fast Forward controls

Lyrics, Score, and Chord data can be displayed on screen, or on external video monitor

Markers with Add, Delete, Edit and Loop functions

Jukebox function

MP3 Player / Recorder

Double MP3 Player and MP3 Recorder

Transpose (+6/-5 semitones)

Tempo change (±30%)

Advanced Vocal Remover

Record MP3 files including Styles, SMF, MP3, Keyboard Tracks, Pads, Microphone and Effects

Sequencer

Quick Record (Backing Sequence), Multitrack and Step Record functions -

Full-featured sequencer, 16 tracks, Up to 200,000 events, SMF native format

SongBook

Fully programmable music database, based on Styles, SMF, Karaoke, MP3 with automatic selection of Style Play and Song Play modes

User-definable Set Lists with layout button association

Filtering and Ordering options

Compatibility

"i-Series" models: Styles

 “Pa-Series” models: Style, Performance, Program/Sound, Song, SongBook, Pad

Pads

4 Assignable Pads + Stop Button - Pad Record function

General Controls

Master Volume; Fade In/Out; Keyboard-Acc/Song Balance Volume; Ensemble; Octave Transpose; Master Transpose; Quarter Tone and Arabic Scale memorized inside Keyboard Sets; Joystick (pitch + modulation); Ribbon; Mic Volume; Harmony/Double; Delay/Reverb; Mic Preset; Mic On/Off; Harmony On/Off; Double On/Off; 8 Assignable Sliders; Slider Mode; MP3 Volume; 3 Assignable Switches; Tempo +/-; Tempo Lock; Metronome On/Off; Dial; Up/+; Down/-; Search; Shift; Chord Scan (Lower, Upper); Split; Keyboard Tracks Sound Select and On/Off; Record

Control Inputs

Damper pedal (support half-pedaling with optional DS-1H pedal)

Assignable pedal/switch

EC5 multiswitch pedal

Mic/Line InputsMic: Combo XLR balanced with Gain control and Phantom Power
Line 1: Left/Right Jack (1/4") Line Input, balanced
Line 2: Stereo Mini-jack (1/8") Line Input, unbalanced

Outputs

Audio Output: Left/Right, Out 1, Out 2; (1/4" TRS) balanced

Headphone Output x 1 (Front panel)

Video Out x 1, RCA type

MIDI

IN, OUT, THRU standard MIDI connectors

USB to MIDI using the USB Device port

8 user definable MIDI Setups

Storage

Hard Drive:

 - Standard

Micro SD card: (Card not included)

 - Rear panel slot with plastic cover

USB Flash Drive: (Drive not included)

 - 1 Front panel port

 - 1 Rear panel port

Display

7” Wide capacitive color TouchView™ TFT display

Clock

Internal System Clock

AC -
Power Consumption

100-240 Volts, 50/60 Hz

0.5 Watt in standby / 16 Watt normal / 38 Watt with PaAS installed

Dimensions (W x D x H)

Pa4X-76: 1,192 x 364.4 x 125.56 mm / 46.93" x 14.35" x 4.94" with display fully lowered

Pa4X-76: 1,192 x 364.4 x 207.43 mm / 46.93" x 14.35" x 8.17" with display fully raised

Pa4X-76: 16.3 kg/35.93 lbs

Accessories

AC Power Cable, Music Stand, Owner Manual, DVD-ROM: includes Owner’s manuals in pdf format, Video Manual, and KORG USB-MIDI Driver

Options

PaAS Amplification System

ST-SV1 Keyboard Stand

HDIK-3 Hard Disk Installation Kit (for 61 keys only)

EC-5 External Controller

EXP-2 Foot Controller

XVP-10 Expression/Volume Pedal

DS-1H Damper Pedal (support half-pedaling)

PS-1 Pedal Switch

PS-3 Pedal Switch

Distribué par Algam / La boîte noire du Musicien
