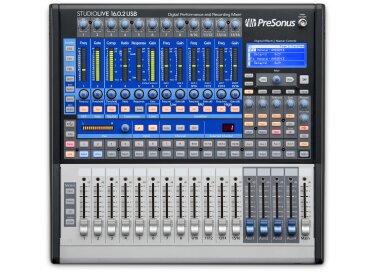

PreSonus StudioLive 16.0.2 USB

Name: StudioLive 16.0.2 USB
Brand: PreSonus
SKU: 263514
Rating: 2.0 (1 reviews)

Console numérique de la marque PreSonus appartenant à la série StudioLive Classic

1 avis

Présentation du produit Présentation

Avis 1 1

Comparateur de prix 10 10

Petites annonces Annonces 1 1

Forums 6 6

Actu 1 1

Sommaire - accès rapide

News (1)
Images (22)
Vidéos (1)
Avis (1)
Fiche technique (1)

Acheter neuf PreSonus StudioLive 16.0.2 USB

Amazon.fr En stock / Livré en 24h 869,00 €
Music Store En stock / Livré en 48h 869,00 €
Thomann En stock / Livré en 48h 869,00 €
Energyson En stock / Livré en 48h 908,00 €
Terre de Son En stock / Livré en 5 jours 949,00 €

Annonces StudioLive 16.0.2 USB

Alerte nouvelle annonce

Forums PreSonus StudioLive 16.0.2 USB

News

[NAMM] Une version USB de la StudioLive 16.0.2

PreSonus a bien compris que le FireWire devenait obsolète et vient d’installer de l’USB 2 sur sa console de mixage numérique StudioLive 16.0.2.

13/07/17 19

Images

Voir les 22 photos de la PreSonus StudioLive 16.0.2 USB

Vidéos

Presonus Studiolive 16.0.2 Usb

Avis

2.0/5

(1 avis)

100 %

(1 avis)

Donner un avis

Cible : Tout public Rapport qualité/prix : Correct

PATRISCO

PROBLEME DE SIGNAL DE SORTIE

Publié le 09/12/19 à 20:59

Bonjour depuis l'achat de ce produit j'ai un soucis sur le présonus studio live 16.0.2 depuis 3 mois il fonctionne bien a froid mais quand on éteint et on le rallume il y a plus de son à la sortie général aux 1 2 3 4 et pourtant les signal musical de output s'affiche et je rencontre des problèmes au niveau des entrées parfois entrée 9 10 qui ne fonctionne pas ou bien 13 14 qui ne fonctionne pas et le niveau de aux 1 qui est pas très fort problème de contact sans doute au potentiomètre cela fait beaucoup de choses et le cout de réparation risque d'être onéreux …

Lire moins

Fiche technique

Fabricant : PreSonus
Modèle : StudioLive 16.0.2 USB
Série : StudioLive Classic
Catégorie : Consoles numériques
Poids du colis : 10.5 kg
Fiche créée le : 13/07/2017

Version avec port USB de la console de mixage numérique de 16 canaux StudioLive 16.0.2 pour le studio et le live

8 mono mic/line channel inputs, each with:

High-headroom Class A XMAX mic preamplifier
XLR mic and balanced ¼-inch line inputs
60 mm precision fader

4 stereo line channel inputs, with:

High-headroom Class A XMAX mic preamplifier (Ch. 9, 11, 13, and 15)
XLR mic inputs (Ch. 9, 11, 13, and 15)
Balanced ¼-inch line inputs (Ch. 9-16)
Unbalanced RCA line inputs (Ch. 13-16)
60 mm precision fader (4 stereo)
4 Auxiliary buses (pre/post-fader send)

2 Internal FX buses 2 stereo 32-bit digital effects processors with customizable reverb and delay presets Fat Channel signal processing on all channels and buses, with:

3-band semi-parametric EQ (individual band on/off)
Full-featured compressor
Standard downward expander
Limiter
Phase reverse (12 mic preamplifiers only)
Pan with dedicated 15-LED display
Stereo link for input channels and aux buses
Highpass filter

One 31-band stereo graphic EQ (on main outputs only) 18-in/16-out USB recording interface (24-bit/44.1 kHz and 48 kHz)

Compatible with most audio software via ASIO, Windows Audio, Core Audio

Scene store and recall Settings can be copied among channels and buses and saved as user presets. Software bundle includes:

PreSonus® Studio One® Artist digital audio workstation for Mac® and Windows ®
PreSonus Capture™ live-recording software for Mac and Windows
PreSonus UC Surface mixer-control software for Mac, Windows, Android™, and iPad®
Free downloadable PreSonus QMix®-UC software for iPhone®/iPod touch® and Android™ provides wireless remote control of aux mixes

Lockout mode protects your settings from meddlers and accidents MIDI Control Mode provides control over:

Scene and FX Preset recall
Main Volume, FXA, and FXB output levels
FXA and FXB assign/unassign to Mains

Technical Specifications

Microphone Preamp
Type	XLR Female, Balanced
Frequency Response to Direct Output (at unity gain)	20 Hz-40 kHz, 0 / -0.5 dBu
Frequency Response to Main Output (at unity gain)	20 Hz-20 kHz, ±0.5 dBu
Input Impedance (Balanced)	1 kΩ
THD to Direct Output (1 kHz at unity gain)	<0.005%, +4 dBu, 20 Hz–20 kHz, unity gain, unwtd
THD to Main Output (1 kHz at unity gain)	0.005%, +4 dBu, 20 Hz-20 kHz, unity gain, unwtd
EIN to Direct Output	+125 dB unwtd, +130 dB A-wtd
S/N Ratio to Direct Output (Ref = +4 dB, 20 kHz BW, unity gain, A-wtd)	-97 dB
S/N Ratio to Main Output (Ref = +4 dB, 20 kHz BW, unity gain, A-wtd)	-94 dB
Common Mode Rejection Ratio (1 kHz at unity gain)	+65 dB
Gain Control Range (± 1 dB)	-16 dB to +67 dB
Maximum Input Level (unity gain)	+16 dBu
Phantom Power (± 2 VDC)	+48 VDC

Line Inputs, Balanced
Type	¼" TRS Female, balanced mono
Frequency Response to Direct Outputs (at unity gain)	10 Hz-40 kHz, 0 / -0.5 dBu
Frequency Response to Main Outputs (at unity gain)	20 Hz-20 kHz, 0/-0.5 dBu
Input Impedance	10 kΩ
THD to Direct Output (1 kHz at unity gain)	<0.0007%, +4 dBu, 20 Hz-20 kHz, unity gain, unwtd
THD to Main Output (1 kHz at unity gain)	<0.005%, +4 dBu, 20 Hz-20 kHz, unity gain, unwtd
S/N Ratio to Direct Output (Ref = +4 dBu, 20 kHz BW, unity gain, A-wtd)	-105 dB
S/N Ratio to Main Output (Ref = +4 dBu, 20 kHz BW, unity gain, A-wtd)	-94 dB
Gain Control Range (± 1 dB)	-20 dB to +20 dB
Maximum Input level (unity gain)	+22 dBu

Line Inputs, Unbalanced
Type	RCA Female, unbalanced (stereo pair)
Maximum Input Level	+22 dBu

Main Outputs
Type	XLR Male, balanced (stereo pair); ¼” TRS Female, balanced (stereo pair)
Rated Output Level	+24 dBu
Output Impedance	100Ω

Aux Outputs
Type	¼” TRS Female, balanced (mono)
Rated Output Level	+18 dBu
Output Impedance	100Ω

Monitor Outputs
Type	¼” TRS Female, balanced (stereo pair)
Rated Output Level z	+18 dBu
Output Impedance	100Ω

System Crosstalk
Input to Output (Ref = +4 dBu, 20 Hz-20 kHz, unwtd)	-90 dBu
Adjacent Channels (Ref = +4 dBu, 20 Hz-20 kHz, unwtd)	-87 dBu

Noise Gate (Expander)
Threshold Range	-84 dB to 0 dB
Attack Time	Adaptive (0.2 - 2.5 ms)
Release Time	70 ms
Expander Attenuation Range	2:1

Compressor
Threshold Range	-56 dB to 0 dB
Ratio	1:1 to 14:1
Response Time (Attack/Release	0.2 ms / 1.0s (“Tight”) to 180 ms / 1.0s (“Smooth”)
Auto Attack and Release	Attack = 10 ms, Release = 150 ms
Curve Types	hard and soft knee

EQ
Type	2nd-order shelving filter (Q = 0.55)
Low (Low-pass or Bandpass)	36 to 465 Hz, ±15 dB
Mid	260 Hz to 3.5 kHz, ±15 dB
High (High-pass or Bandpass)	1.4 kHz to 18 kHz, ±15 dB

Digital Audio
Host Interface	USB 2.0
ADC Dynamic Range (A-wtd, 48 kHz)	118 dB
DAC Dynamic Range (A-wtd, 48 kHz)	118 dB
Internal Processing	32-bit, floating point
Sampling Rate	44.1, 48 kHz
A/D/A Bit Depth	24 bits
Reference Level for 0 dBFS	+18 dBu
