Fiche technique
- Fabricant : Soundcraft

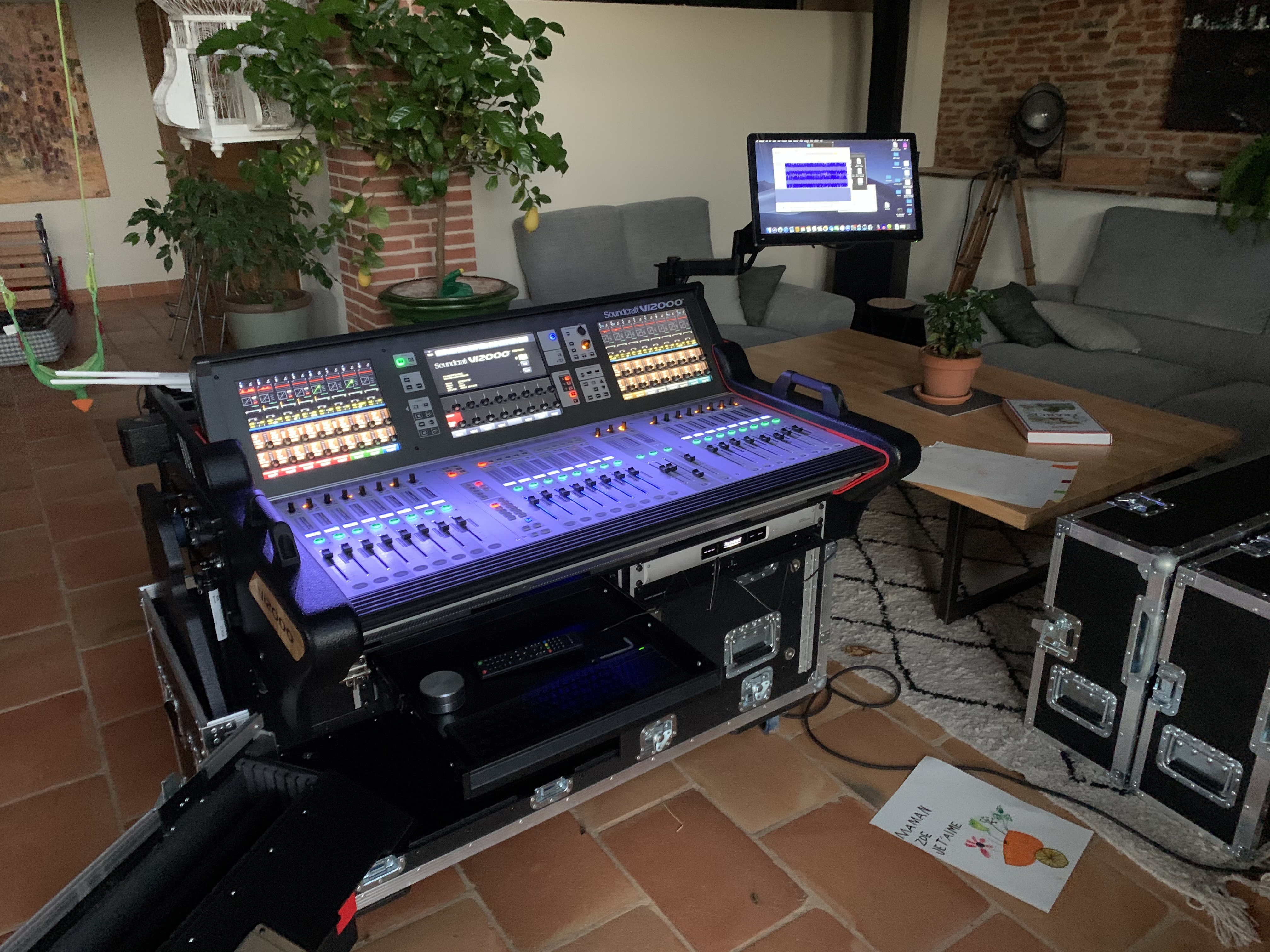

- Modèle : Vi2000
- Série : Vi
- Catégorie : Consoles numériques
- Autres dénominations : vi 2000, vi20 00, vi 20 00
| Control Surface | |
| Input Faders | 16 |
| Output Faders | 8 +3 (LRC masters) +1 (Monitor A/B) |
| Total Faders | 28 |
| 3D Vistonics screens | 3 (2 input, 1 master) |
| Fader bay operation | 4x Fixed Input layers A/B/C/D giving 64 inputs on 16 fdrs. Input channels can be assigned to Master bay for 24 input fdrs. 5x User layers 1-5 1x Busses 1-16 Layer plus screen assign 17-24, for 24 mono/stereo busses VCA/A/B/C/D/E output/input fader pages, (A-E user definable) |
| Local I/O Physical connectors | |
| Mic/Line Inputs | 48, 32 or 16 configurable (max 3x 16ch out cards of 4 total) (Last 5 outs default to local monitors but can be repatched) |
| AES/EBU In | 2 (=4ch) plus optional 16ch via Vista1 card (remove 2 mic or line out cards to fit). |
| AES/EBU Out | 2 (=4ch) plus optional 16ch via Vista1 card (remove 2 mic or line out cards to fit). |
| TB Mic in | 1 front panel, with rear-switched 48V. |
| Phones out | 1 ste jack, under armrest |
| Optical MADI In/Out | 1 (outputs paralleled with Dante interface). |
| Dante ports | 1x 64ch in/out (2x Ethercon Pri/Sec). Dante inputs are A/B switched with optical MADI. |
| D21m Option Slots | 2 double/4single (total 128ch) |
| AES/EBU Input Sample Rate | 32–108kHz (with SRC enabled) |
| Total number of simultaneous IO channels | 246 inputs / 214 outputs (assumes 48 mic in/16 line out config) |
| DSP Mixing Core | Soundcraft® SpiderCore |
| Processing | 40-bit Floating point, 48kHz sample rate |
| Input Channels to mix | 96 mono Pairable to 48 stereo |
| Busses - Aux/Grp | 24 mono/stereo |
| Busses - Matrix | From 24 bus pool – max 16 mono/stereo. |
| Busses - Master | 3 (LRC) |
| Assignable Insert Points | 64 + 4FX |
| Tie Lines | 128 (allow Stagebox IO to connect to Local IO without using mixing channels. |
| Lexicon FX | 4 units (14 reverbs, 7 delays, 8 pitch-shift effects in each unit) Tap Delay from F-key 1-4. |
| BSS GEQ | 24 mono/stereo +LRC. |
| External Control Ports | |
| Ethernet | 1 (dedicated HiQnet / Realtime Rack control) |
| MIDI | 1 In, 1 Out |
| Other Ports | |
| Mains Input | 2, switched (redundant power supplies built in) |
| USB2.0 | 4 (2 front, 2 rear) |
| Wordclock | In /Out 2x BNC |
| DVI out | Reserved for future use |
| Gooseneck lamp 4-pin XLR | 2, for rear panel illumination |
| Stagebox | Optional, via MADI optical or Cat 5 option cards fitted to D21m expansion slots. Can connect up to 2 x 64ch Vi Stageboxes. Also compatible with Compact Stagebox and Mini Stagebox |
| Frequency Response | |
| Stagebox Mic input to Line output | +0/-1dB, 20Hz-20kHz |
| AES/EBU In to AES/EBU Out | +0/-0.2dB, 20Hz-20kHz |
| T.H.D. & Noise | |
|
22Hz-22kHz |
|
|
Stagebox Mic In (min gain) to Local Line Out |
<0.003% @ 1kHz |
|
Stagebox Mic In (max gain) to Local Line Out |
<0.020% @ 1kHz |
|
Local Line In to Line Out |
<0.003% @ 1kHz |
|
Mic Input E.I.N. |
<-126dBu (150Ω source) |
|
22Hz-22kHz bandwidth, unweighted |
|
| Residual Noise | -91dBu |
| Stagebox line output; no inputs routed, Mix fader @0dB | |
|
CMRR, Stagebox Mic input |
80dB @ 1kHz |
| Sampling Frequency | 48kHz |
|
Latency |
|
|
Stagebox Mic Input to Local Line output |
< 2ms @48kHz |
|
AES/EBU Input Sample Rate |
32-108kHz (with SRC enabled) |
| DSP Resolution | 40-bit floating point |
| Internal Clock Accuracy | < +/- 50ppm |
| Internal Clock Jitter | < +/- 2ns |
|
External Sync |
BNC Wordclock |
|
Input & Output Levels |
|
|
Mic Inputs |
+28dBu max |
|
Line Inputs |
+22dBu max |
|
Line Outputs |
+22dBu max |
|
Nominal Operating Level |
+4dBu (-18dBFS) |
|
Input & Output Impedances |
|
|
Mic Inputs |
2k7Ω |
|
All other analogue Inputs |
>10kΩ |
|
Line Outputs |
<75Ω |
|
AES/EBU Outputs |
110Ω |
|
Oscillator |
20Hz to 20kHz/Pink/White Noise, variable level |
|
|
|
|
Stagebox HP Filter |
80Hz fixed, 12dB per octave |
|
Channel HP Filter |
20Hz-600Hz, 18dB per octave |
|
Channel LP Filter |
1kHz-20kHz, 18dB per octave |
|
EQ (Inputs and Bus Outputs) |
|
|
HF |
20Hz-20kHz, +/-18dB, Q=0.3-8.7 or shelving |
|
Hi-Mid |
20Hz-20kHz, +/-18dB, Q=0.3-8.7 |
|
Lo-Mid |
20Hz-20kHz, +/-18dB, Q=0.3-8.7 |
|
LF |
20Hz-20kHz, +/-18dB, Q=0.3-8.7 or shelving |
|
Metering |
Internal 20-segment LED bargraphs plus 9-segment gain reduction meters for all inputs and Outputs. Peak hold variable from 0-2s. |
| Mains Voltage Operating Range | 90-264V, 47-63Hz, auto-ranging |
| Mains Power Consumption | 250W |
| Temperature/Humidity Range | |
|
Operating Temperature Range |
0°C to 45°C (32°F to 113°F) |
|
Relative Humidity |
0% - 90%, non-condensing Ta=40°C (104°F) |
|
Storage Temperature Range |
-20°C to 60°C (-4°F to 140°F) |
