Soundcraft Vi5000
Photos
1/1

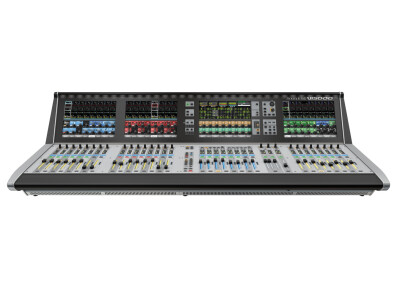

Soundcraft Vi5000

Console numérique de la marque Soundcraft appartenant à la série Vi

Écrire un avis ou Demander un avis

Acheter neuf Soundcraft Vi5000

  • Woodbrass Pas de stock / NC 37 498,00 €

Annonces Vi5000

Alerte nouvelle annonce

News

Vidéos

Fiche technique

  • Fabricant : Soundcraft
  • Modèle : Vi5000
  • Série : Vi
  • Catégorie : Consoles numériques
  • Fiche créée le : 17/04/2015

128 inputs and 32 mono/stereo busses digital mixing consoles

  • The latest Vistonics™ & FaderGlow™ interface
  • Up to 128 inputs and 32 mono/stereo busses
  • Enhanced audio processing with 96kHz sample rate option
  • Powerful new features including BSS DPR901ii™ Dynamic EQ
  • New Local Rack hardware for 384 I/O channels
  • 128 channel record interface via MADI or Dante™
  • Mix live with UA™ plug-ins (via Realtime Rack)
  • Huge connectivity options - Dante™, Rocknet™, Ethersound™, Cobranet™, MADI and more
Frequency Response
Stagebox Mic input to Line output +0/-1dB, 20Hz-20kHz
AES/EBU In to AES/EBU Out. +0/-0.2dB, 20Hz-20kHz
T.H.D. & NOISE
Stagebox Mic In (min gain) to Local Line Out, 22Hz-22kHz <0.003% @ 1kHz
Stagebox Mic In (max gain) to Local Line Out, 22Hz-22kHz  <0.020% @ 1kHz
Local Line In to Line Out, 22Hz-22kHz <0.003% @ 1kHz
Mic Input E.I.N (22Hz-22kHz bandwidth, unweighted <-126dBu (150Ω source)
Residual Noise, Stagebox line output; no inputs routed, Mix fader @0dB -91dBu
CMRR, Stagebox Mic input. 80dB @ 1kHz
Sampling Frequency 48kHz or 96kHz
Latency, Stagebox Mic Input to Local Line output  <2ms @48kHz
AES/EBU Input Sample Rate 32–108kHz (with SRC enabled)
DSP resolution 40-bit floating point
Internal clock accuracy <+/-50ppm
Internal clock jitter  <+/-5ns
External Sync BNC Wordclock
Input & Output Levels
Mic Inputs +28dBu max
Line Inputs +22dBu max
Line Outputs +22dBu max
Nominal Operating Level +4dBu (-18dBFS)
Input & Output Impedances
Mic Inputs 10kΩ
All other analogue Inputs >10kΩ
Line Outputs <75Ω
AES/EBU Outputs 110Ω
Oscillator 20Hz to 20kHz/Pink/White Noise, variable level
Stagebox HP Filter 80Hz fixed, 12dB per octave
Channel HP filter 20Hz-600Hz, 18dB per octave
Channel LP filter 1kHz-20kHz, 18dB per octave
EQ (Inputs and bus Outputs) HF: 20Hz-20kHz, +/-18dB, Q= 0.3-8.7 or shelving
Hi-Mid: 20Hz-20kHz, +/-18dB, Q=0.3-8.7
Lo-Mid: 20Hz-20kHz, +/-18dB, Q=0.3-8.7
LF: 20Hz-20kHz, +/-18dB, Q= 0.3-8.7 or shelving
Metering Internal 20-segment LED bargraphs plus 9-segment gain reduction meters for all inputs and Outputs.
Peak hold variable from 0-2s.
Mains Voltage operating range 90-264V, 47-63Hz, autoranging
Mains Power Consumption 300W
Operating Temperature Range 0°C – 45°C (32°F – 113°F)
Relative Humidity 0% – 90%, non-condensing Ta=40°C (104°F)
Storage Temperature Range -20°C – 60°C (-4°F – 140°F)

Distribué par Freevox

»
