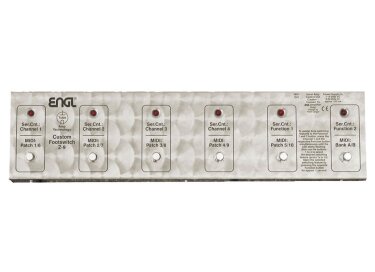

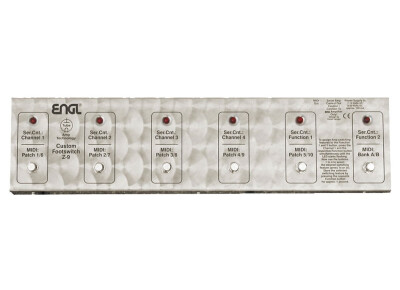

ENGL Z-9 Footswitch

Power supply
external power unit: 7 to 14 volts AC or 9 to 20 volts DC, approx. 100 mA;
or via a stereo cord with 1/4" jack plugs (5 Volts DC) connected to S.A.C. Port at specific ENGL Amp;
or via MIDI cable (10 - 12 Volt AC) connected to a MIDI In port at an ENGL Amp providing phantom power

Logic control system, Processor, software
AT89C52 with internal 8K Flash for source code
EEPROM 93C46 for data storage.

S.A.C.
Proprietary ENGL asynchronous data protocol.
CAUTION: Connect the Z-9's only to the of an ENGL amp!

MIDI interface
Asynchronous data protocol compliant with the MIDI standard

Basic channels
Channel 1 (0hx) in accordance with the MIDI

Program change
Program numbers 1 to 10 (0hx - 9hx) in accordance with the MIDI specification
the 10 MPN's are organized in two banks A and B

Dimensions (WxDxH)
500 x 120 x 50 mm

Weight
approx. 1.8 kg
