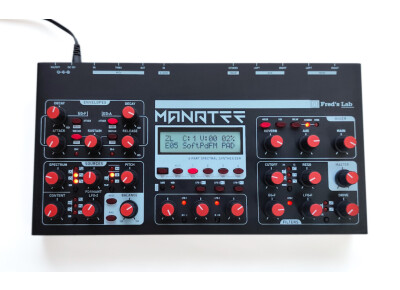

Fred's Lab Manatee

• Fabricant : Fred's Lab
• Modèle : Manatee
• Catégorie : Synthétiseurs numériques en rack
• Fiche créée le : 12/05/2022

Manatee is a professional MPE & multitimbral digital synthesizer with a polyphony ranging from 10 to 16 voices (depending on patches complexity), 4 parts and multiple carefully crafted audio algorithms for sound generation.

The instrument MIDI implementation is extensive and well documented and fully complies with the recent MPE - MIDI Polyphonic Expression - specifications. Thus making Manatee the perfect companion for any expressive MIDI controller and all advanced hardware or software MIDI sequencers.

Fred's Lab instruments are still proudly & manually assembled at our facilities in Bonn / Germany using premium components and material sourced from all over the globe.

=====================================================================================================

Until offical release, all specifications advertised are preliminary!

Patch modes

Patches can be:
• monophonic, with optional legato & unisono modes
• polyphonic, with optional unisono mode

Unisono modes allocates two voices per note.
Voices stereo spreading and detuning are configurable.

Sound sources

1x Spectral Generator with:
• reference spectrum selection
• choice of reconstruction waveform
• formant, rotation & inversion controls

1x Sub-oscillator with:
• sinus / 2-op FM engine
• saw / super-saw engine
• pulse / super-pulse engine
• triangle / folder engine
• waveform player

Sub-oscillator and Spectral Generator can be mixed as needed.

Ring Modulator with:
• O1 x O2 operation
• volume and noise controls

Sound shapers

Multimode Filter with:
• 12 and 24dB / Octave attenuation
• custom LowPass, BandPass & HighPass models
• self-oscillating with built-in saturation
• tracking control

RC Filter with:
• 6 dB / Octave attenuation
• custom LowPass & HighPass models

Saturator module with:
• tube, fuzz, bit-crush models
• drive + dry/wet controls

Modulation Sources

2x Meta-envelope with:
• common attack, sustain and release controls
• individual decay, aftertouch, velocity controls
• masked modes including ADSR, -DSR, A-SR, AD-R, gate ...
• retriggering and cycling options
• velocity influence on times adjustments
• target and expressor choices

1x Custom-LFO with:
• wide selection of algorithmic waveforms
• waveforms chaining options
• rate and start phase controls
• MIDI synchronous modes
• integrated AR envelope
• target and expressor choices

3x Modulation Matrix Slots:
• in addition to default routings
• in addition to modulator targets

Spectrum Maker:
• producing the timbre for the Spectrum Generators

Noise Source with:
• sample rate control
• built-in noise color filter

2x Custom-LFO with:
• as the other ones

Stereo Delay with:
• multiple algorithms (mono, stereo, ping-pong ...)
• delay length from 1ms to 8s (model dependent)
• MIDI synchronous modes

2x Stereo Equalisers with:
• multiple shapes (low/high, cut, shelf, boost...)
• center frequency control

Arpeggiator

Master Reverberation with:
• several algorithms (hall, plate, room ...)

=====================================================================================================

Until offical release, all specifications advertised are preliminary!

• 2x 200MHz 16bit dual-core DSPs
• 4x 24bit Burr Brown DACs
• 64 MBit of fast PSRAM

• 250x preset storage locations
• 32x multi storage locations
• 1x system configuration

• 1x 2.1mm DC jack input
• 1x DIN5 MIDI input
• 1x DIN5 MIDI through
• 1x DIN5 MIDI output
• 1x 3.5mm TRS jack clock + start/stop input
• 1x 3.5mm TRS jack headphones output
• 2x TRS 6.35mm jack input / output - aux left & right
• 2x TS 6.35mm jack output - main left & right

• 23x quality metal potentiometers
• 18x illuminated switches
• 8x tactile switches
• 22x oldschool red LEDs
• 2x16 FSTN+ character LCD display
• bright & dimmable LED backlight

• powder coated steel chassis
• acrylic display window
• quality rubber feet
• 267 x 140 x 60 mm
• 1470 grams

• DC 12V with center positive
• Max 350mA consumption
