ARQ Aero RhythmTrak, Séquenceur hardware de la marque Zoom.


test de la rédaction
Neuf à partir de 179 € prix moyen : 276 €
Occasion à partir de 150 € argus occasion : 250 €Attention, cote argus calculée sur un petit nombre d'annoncesAvertissement important

Test Zoom ARQ Aero RhythmTrak

On refait le patch #45 : Test du Zoom ARQ Aero RhythmTrak

On refait le patch #45 : Test du Zoom ARQ Aero RhythmTrak

Pour auréoler vos prestations ? Grand spécialiste des enregistreurs portables et des effets guitare, Zoom avait bien proposé par le passé quelques boîtes à rythmes et un sampleur, mais ne s’était jamais fendu d’un concept aussi barré que cet ARQ dont nous allons tenter de faire le tour. Lire la suite…

Acheter neuf Zoom ARQ Aero RhythmTrak

Amazon.fr
(11 avis)
ARQ Aero Rhythm Contrôleur Trak Bague de 96 séquence/AR 456,95 €
Woodbrass
(386 avis)
Arq Aero Rhythmtrak 179 €
Star's Music
(196 avis)
Arq aero rhythmtrack 199 €
Bax Music
(713 avis)
ARQ Aero RhythmTrak 179 €
SonoVente
(69 avis)
ARQ Aero RhythmTrack 179 €

Acheter d'occasion Zoom ARQ Aero RhythmTrak

Zoom ARQ Aero RhythmTrak groovebox zoom arq 96 neuve,sous garantie hors frais de port. 150 € »

Fiche technique Zoom ARQ Aero RhythmTrak

  • Fabricant :Zoom
  • Modèle :ARQ Aero RhythmTrak
  • Catégorie :Séquenceurs hardware
  • Fiche créée le :21/01/2016

L'ARQ combine une boîte à rythmes, un séquenceur, un synthé, un looper et un contrôleur MIDI capable de déclencher des clips.

Features

  • Drum machine, sequencer, synthesizer, looper, clip launcher, and MIDI controller in one device
  • Includes 468 drum/instrument sounds ("one-shot" sampled waveform sounds), 70 types of synthesizer sounds, and dozens of digital effects
  • Ring Controller can be used wirelessly as a handheld aerial instrument and to launch audio clips from DAW software
  • 96 velocity- and pressure-sensitive pads and 160 programmable color LEDs
  • Grip Detection to automatically prevent accidental note triggering
  • 3-axis accelerometer for altering effects parameters and sending MIDI control messages
  • Dedicated buttons for sequence REC/PLAY/STOP and for effects on/off
  • Use up to 5 effects simultaneously, applied to overall drum kit or individual drum sounds
  • Split mode allows one instrument to be assigned to multiple pads for ease of input
  • Onboard mixer for setting volumes and muting/soloing parts
  • Flexible precount, quantize, swing, and beat settings
  • Audible and/or visual click
  • Dual 1/4" inputs for phrase recording and loop creation
  • Audio capture from patterns and songs, from SD card, or from incoming audio signal
  • Create up to 99 mono or stereo loops, play up to 32 simultaneously
  • Loop start and end points can be set on the fly or adjusted manually
  • Loop tempo synchronization, pitch change, and reverse playback functions
  • Programmable synthesizer engine
  • 531 oscillator types and 16-voice polyphony
  • Sound-shaping controls include effects, envelope generators, and stepped and smooth modulation
  • Play sounds chromatically, or choose from dozens of preset scales in any key
  • Adjustable pad velocity and pressure sensitivity
  • Dedicated tap tempo button for synchronization
  • Selectable LED light-show animations
  • Dual 1/4" line outputs and separate 1/4" headphone output with dedicated volume control
  • USB port and SD card slot
  • Bluetooth LE for low power consumption and extended usage times



Specifications

ANALOG: PADS
Number of pads:

96

Velocity sensitive:

Yes

Pressure sensitive:

Yes

Sensitivity curves:

4 types

Velocity (send):

Yes

Aftertouch
(send):

Yes

Number of LEDs :

160

LED color:

Multi

ANALOG FUNCTIONS
Accelerometer:

Yes

Number of parameter knobs:

4

Number of control keys:

Base Station: 17

Ring Controller: 11

INTERFACE
USB MIDI:

Yes

Bluetooth LE:

Connect to Mac/iOS via MIDI over Bluetooth LE

CONTROLLER
MIDI controller:

MIDI control function and Live Mode

ANALOG INPUTS
Type:

1/4" TRS

Number of inputs:

2

Function:

Line

Impedance:

50 kΩ

Gain:

0~-∞dB

Dynamic range:

92 dB typ (IHF-A)

ANALOG OUTPUTS
Type:

1/4" TRS

Number of outputs:

2

Impedance:

100 Ω

Dynamic range:

106 dB typ (IHF-A)

ANALOG: PHONES
Type:

1/4" Phone(20mW x2 [32 Ω])

Impedance:

10 Ω

Dynamic range:

102 dB typ (IHF-A)

SOUND ENGINE: SOUND SYSTEM
Internal sound engine:

Yes

Sampling frequency:

44.1 kHz

Bit rate:

24-bit

Maximum polyphony:

16

Number of instruments:

33

Number of oscillator types:

538 (468 PCM sounds + 70 synth sounds)

Number of patterns:

400 (200 preset)

Number of filter types:

8

Number of Insert FX types:

11

Number of Delay types:

1

Number of Reverb types:

4

Number of Master FX types:

14

Number of Modulation types:

8

Number of Modulations:

2

Number of Envelope Generators:

2

SOUND ENGINE: SEQUENCER
Number of Steps:

32

Motion Sequences:

256 motions

Song mode:

Yes

Tempo:

40.0~250.0 bpm

SOUND ENGINE: SAMPLER/CAPTURE
Sampling frequency:

44.1 kHz

Bit rate:

16-bit

MEDIA
Media type:

SD, SDHC, SDXC

Internal memory:

32 MB

POWER SOURCE: INTERNAL BATTERY
Type:

Li-ion Polymer,
DC 4.2V maximum voltage,
DC 3.7V nominal voltage,
450mAh capacity

Battery life:

5 hours

Recharging times:

2.5 hours

EXTERNAL POWER SOURCE: BASE STATION
Type:

AC adapter (AD-14)

Input voltage:

5V 1A

Electricity consumption:

Max: 1.25W (No charging)
Max : 4.5W (Charging)

EXTERNAL POWER SOURCE: RING CONTROLLER
Type:

Internal battery

Electricity consumption:

Max: 2W

OS SUPPORT: BLUETOOTH LE
Windows:

No

Mac OS:

10.10.4 or later

iOS:

8.0 or later

OS SUPPORT: USB MIDI
Windows:

Windows 7 SP1 or later
Windows 8 (including 8.1)
Windows 10

Mac OS:

10.8 or later

iOS:

No

PHYSICAL MEASUREMENTS: BASE STATION
Dimensions:

280mm (W) x 50mm (H) x 280mm (D)

Weight:

1.2 kg / 2.65 lbs

Display:

2.0 inch (320 x 240) full color TFT

PHYSICAL MEASUREMENTS: RING CONTROLLER
Dimensions:

280mm (W) x 33mm (H) x 280mm (D)

Weight:

520 g / 1.15 lbs

Source : https://www.zoom.co.jp/products/digital-instrument/arq-aero-rhythmtrak

Distribué par Mogar

»

News Zoom ARQ Aero RhythmTrak

Zoom met à jour le firmware de son ARQ

Zoom met à jour le firmware de son ARQ

11 Publiée le 20/06/17
C’est une version profondément remaniée que Zoom propose avec la version 2 du firmware AR-96 de son séquenceur, contrôleur en anneau ARQ.

[NAMM][VIDEO] Contrôleur MIDI Zoom Arq

11 Publiée le 23/01/16

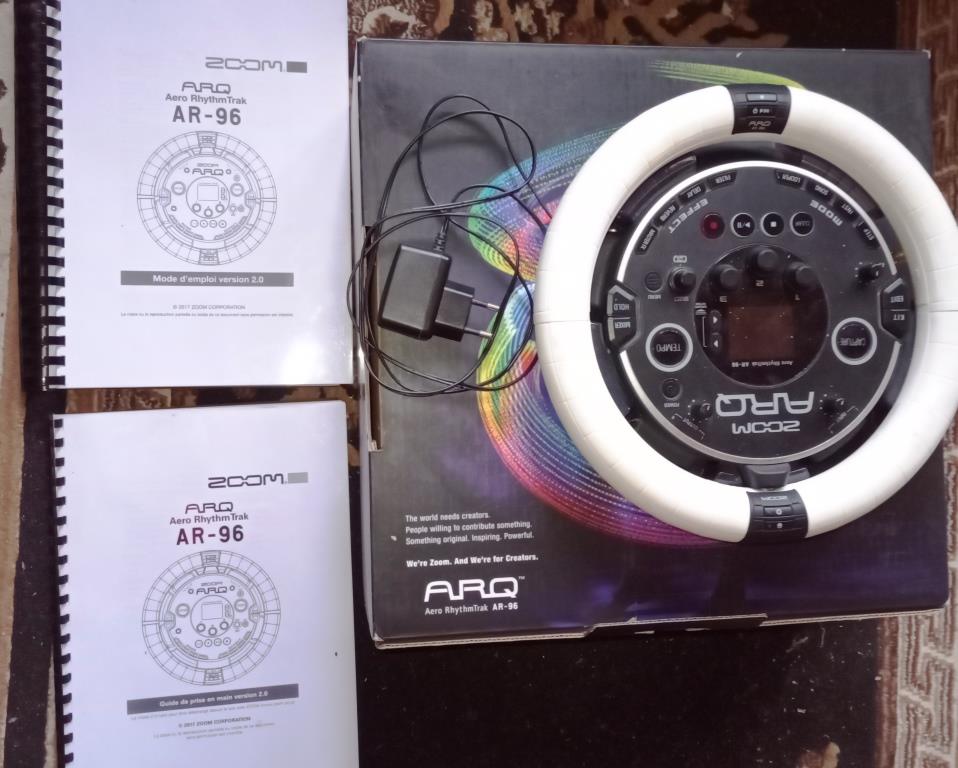

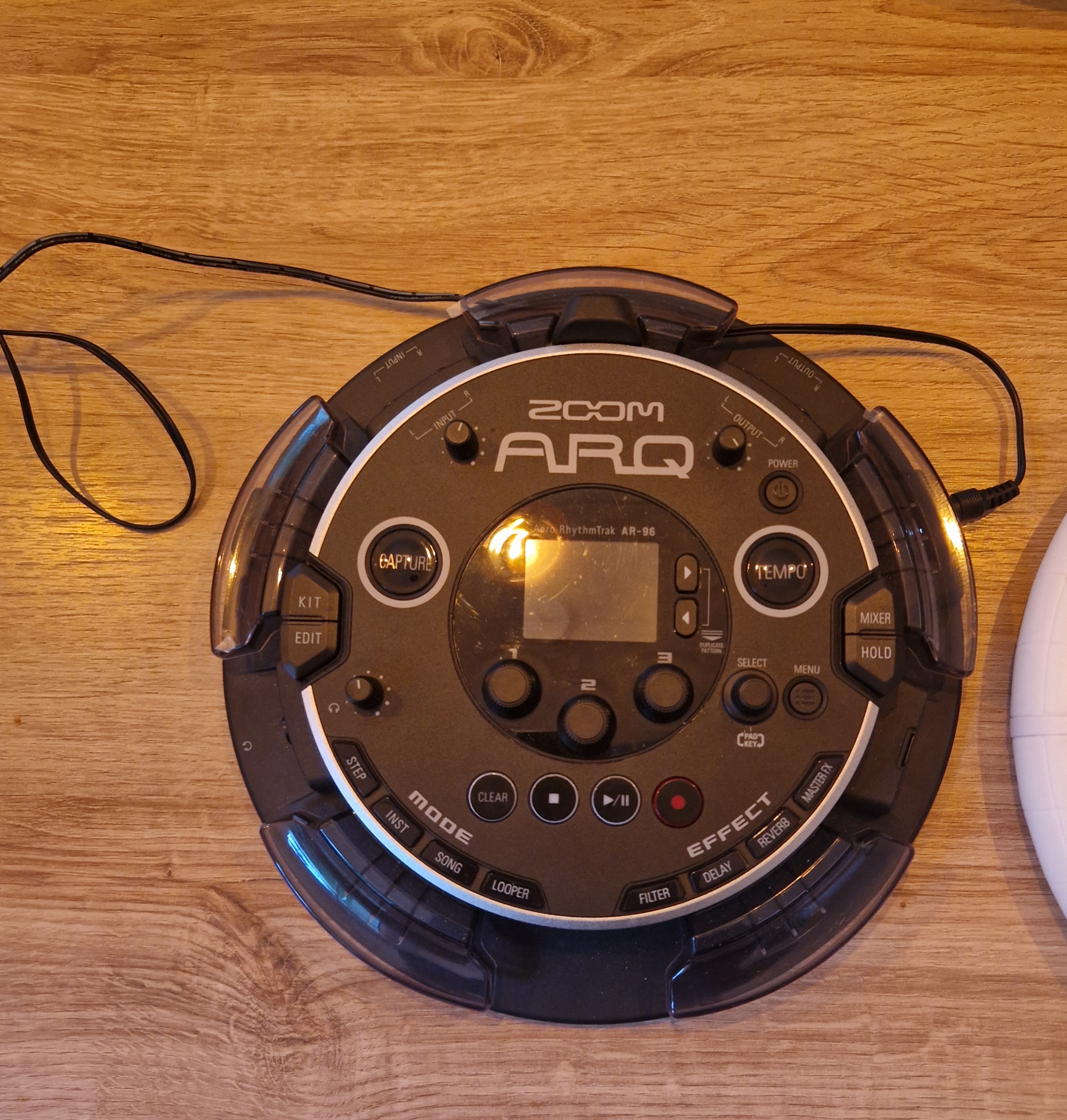

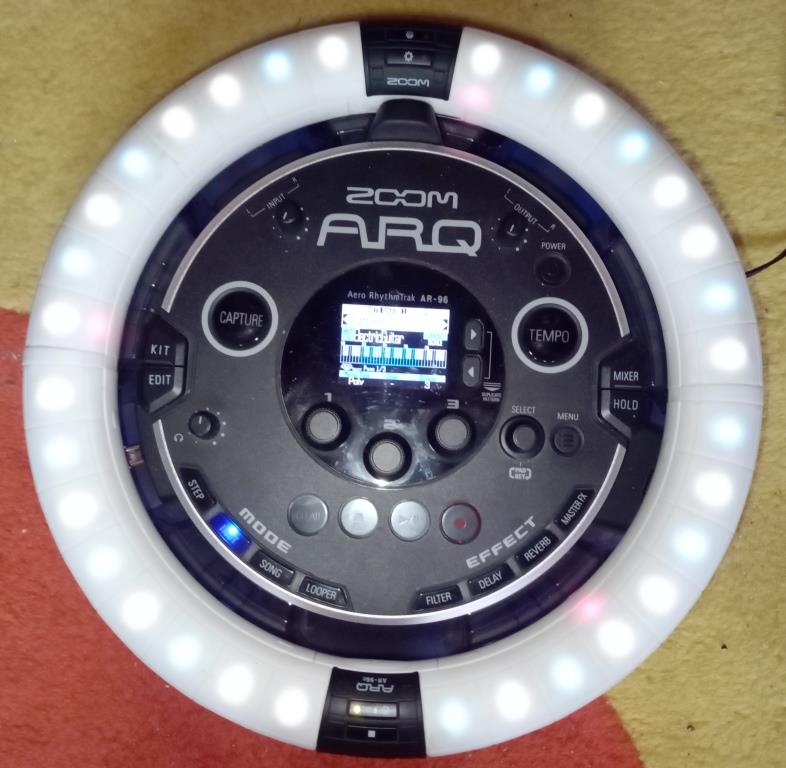

Images Zoom ARQ Aero RhythmTrak
