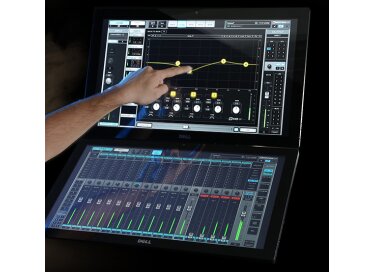

Waves eMotion LV1 Live Mixer – 64 Stereo Channels

The eMotion Mixer engine is powered by low-latency Intel-based Waves SoundGrid DSP Servers. Features include low-latency Waves plugin processing on every channel; support for multiple mixers, I/O boxes and SoundGrid DSP servers over a single network; hardware scalability using standard network components; compatibility with standard control surfaces; Multi-Touch support; Windows and Mac compatibility; and preset sharing across consoles and platforms.

• Windows and Mac compatible
• 32-bit floating point mix engine, with latency as low as 0.8 ms
• Sample rate: 44.1–96 kHz
• Patch up to 16 hardware and software SoundGrid I/Os
• Run up to 8 plugins per channel
• All processing is done on an external SoundGrid DSP server
• Option to add a redundant DSP server
• Compatible with up to four multi-touch screens, as well as diverse hardware control surfaces
• Touch-and-Slide slider for fine control over plugin parameters
• 6 control windows: Mixer 1, Mixer 2, Channel, Show, Patch, Setup
• Different control windows can run simultaneously on different touchscreens
• Each Mixer window provides 8 layers, each with up to 16 channel strips
• Each channel strip provides control over its channel’s input, dynamics/EQ/filters, plugin rack, sends and routing
• Up to 1000 scenes, including recall filters and recall-safe options
• Sends-on-faders mode per Mixer window for each of the 16 aux busses, with auto cue on aux
• MIDI control over scene change
• Preamp control and digital trim per channel input
• Automatic latency compensation on internal mix busses
• Delay groups for output delay alignment
• Multiple outputs available per channel, each with digital trim per output
• Advanced stereo Imager, including balance, rotation, width and L/R panning
• 16 link control groups, providing global control over inputs, plugins, EQ, dynamics and sends for assigned channels
• DCA fader per link control group
• 8 mute groups, with an additional Mute All output option
• Global tempo control per scene
• Show Lock option for locking plugin instantiations, external routing, and complete surface lock
• Comprehensive meter and clip settings
• 8 user-assignable keys for personalization of control over mixer operation (e.g., open specific plugin, tap tempo, recall specific scene)
• Solo-in-place option, with automatic solo-safe sources and destinations
• Copy & paste channel names, processing and routing
• A/B input options, for quick patch changes
• External insert for outboard gear connection, as part of the plugin rack chain
• Offline operation mode, including offline configuration and patching of I/O devices
• Complete channel processing presets, compatible with Waves MultiRack and StudioRack presets
