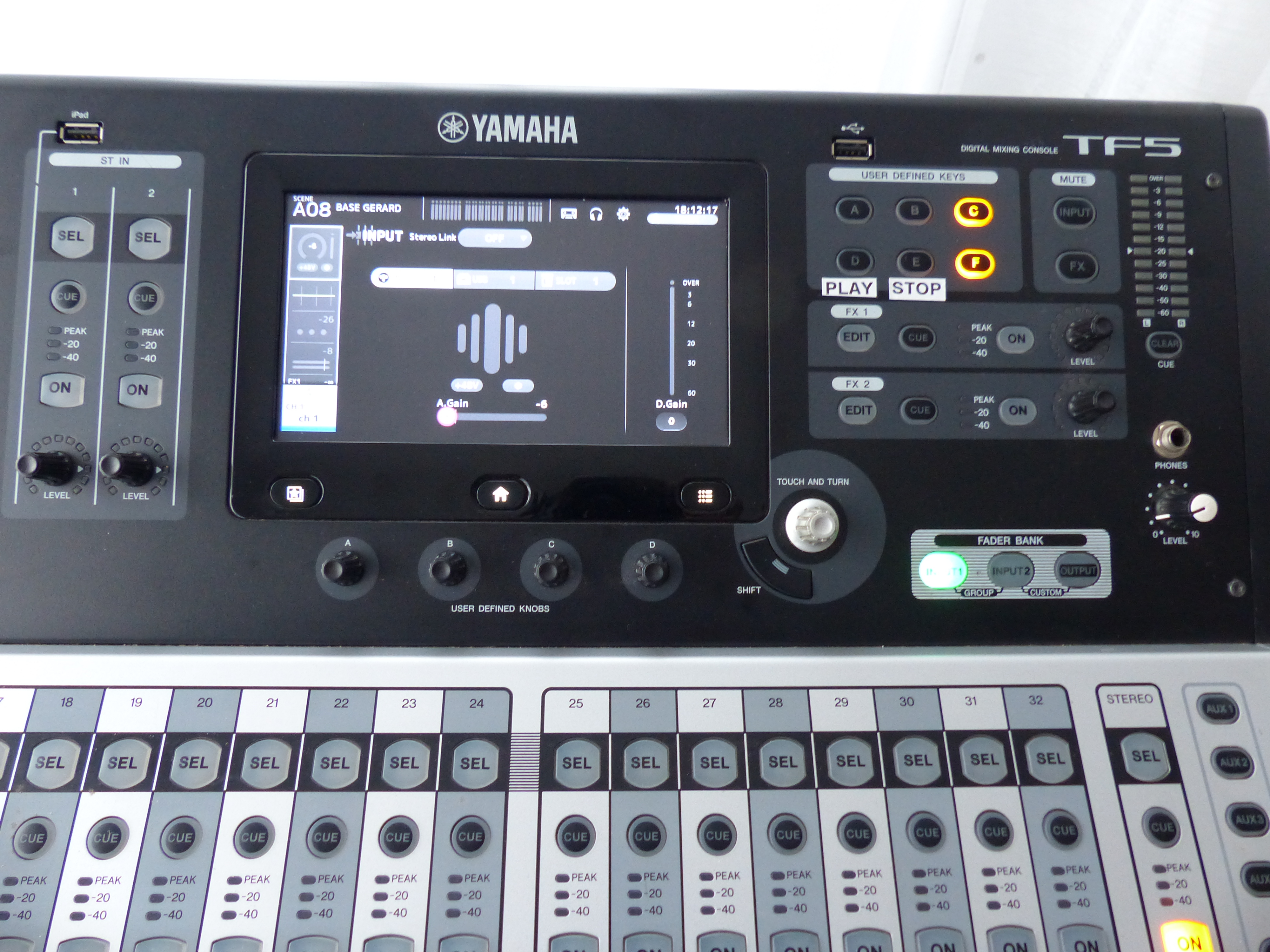

TF5, Console numérique de la marque Yamaha appartenant à la série TouchFlow.

Neuf à partir de 3 459 € prix moyen : 3 563 €

Fiche technique Yamaha TF5

  • Fabricant : Yamaha
  • Modèle : TF5
  • Série : TouchFlow
  • Catégorie : Consoles numériques
  • Fiche créée le : 20/04/2015

48 input TouchFlow digital mixing console with touch screen and 34 x 34 channel USB 2.0 audio interface

Fader Configuration 32 + 1 (Master)
Mixing CapacityInput Channels 48 (40 mono + 2 stereo + 2 return)
Aux Buses 20 (8 mono + 6 stereo)
Stereo Buses 1
Sub Buses 1
Input channel functions 8 DCA Groups
I/OInputs 32 mic/line (XLR/TRS combo) + 2 stereo line (RCA pin)
Outputs 16 (XLR)
Expansion slots 1
On-board processorsDSP 8 Effects + 10 GEQ
USB 34x34 USB Audio Interface, 2-track recording via USB Storage Device

General specifications

Sampling frequency rateInternal 48 kHz
Signal delay Less than 2.6 ms, INPUT to OMNI OUT, Fs=48 kHz
Fader 100 mm motorized, Resolution = 10-bit, +10 dB to –138 dB, –∞ dB all faders
Total harmonic distortion Less than 0.05% 20 Hz–20 kHz @+4 dBu into 600 , INPUT to OMNI OUT, Input Gain=Min. (Measured with a –18 dB/octave filter@80 kHz)
Frequency response +0.5, –1.5 dB 20 Hz–20 kHz, refer to +4 dBu output @1kHz, INPUT to OMNI OUT
Dynamic range 110 dB typ., DA Converter, 107 dB typ., INPUT to OMNI OUT, Input Gain=Min.
Hum & noise levelEquivalent input noise –128 dBu typ., Input Gain=Max. (Measured with an A-Weight filter)
Residual output noise –85 dBu, ST master off (Measured with an A-Weight filter)
Crosstalk –100 dB (Measured with a –30 dB/octave filter@22 kHz), adjacent INPUT/OMNI OUT channels, Input Gain=Min.
Power requirements 100–240 V 50/60 Hz
Power consumption 120 W
DimensionsW 866 mm (34.1in)
H 225 mm (8.9in)
D 599 mm (23.6in)
Net weight 20.0 kg (44.1lb)
Accessories Quick Guide, Power Cord, CUBASE AI download information
Options Expansion Card, Foot Switch (FC5)
Others Operating temperature range: 0–40 °C, Storage temperature range: -20–60 °C

Analog input characteristics

Input TerminalsGAINLoad
Impedance
For Use With
Nominal
Input LevelConnectorbalanced /
Unbalanced
Sensitivity*1NominalMax. before clip
INPUT1-32 +66dB 7.5KΩ 50-600Ω Mics
or 600Ω Lines
-82dBu (61.6V) -62dBu (0.616mV) -42dBu (6.16mV) Combo Jack (XLR-3-31 type *2
or TRS phone *3)
Balanced
-6dB -10dBu (245mV) +10dBu (2.45V) +30dBu (24.5V)
ST IN 1,2 10kΩ 600Ω Lines -30dBV (31.6V) -10dBV (316mV) +10dBV (3.16V) RCA Pin Jack Unbalanced

*1. Sensitivity is the lowest level that will produce an output of +4dBu (1.23V) or the nominal output level when the unit is set to maximum gain. (All faders and level controls are at maximum position.)
*2. 1: GND, 2: HOT, 3: COLD
*3. Tip: HOT, Ring: COLD, Sleeve: GND
*In these specifications, 0dBu = 0.775Vrms.
*+48V DC (phantom power) can be supplied to INPUT XLR type connectors via each individual software controlled switch.

Analog output characteristics

Output TerminalsSource
Impedance
For Use With
Nominal
GAIN SWOutput LevelConnectorbalanced /
Unbalanced
NominalMax. before clip
OMNI OUT 1-16 75Ω 600Ω Lines “+24dBu” position (default)

+4dBu (1.23 V) +24dBu (12.3 V) XLR-3-32 type *1 Balanced
PHONES *3 100Ω 40Ω Phones 3mW 75mW Stereo Phone Jack (TRS) *2 Unbalanced

*1.1: GND,2: HOT, 3: COLD
*2 Tip: LEFT, Ring: RIGHT, Sleeve: GND
*3 The position of the level control is lowered by 16dB from the maximum.
*In these specifications, 0dBu = 0.775Vrms.
*All output DA converters are 24bit, 128times oversampling.

Digital input/output specifications

TerminalsFormatData lengthAudioConnector
USB (TO HOST) USB 24bit 34ch input / 34ch output, PCM USB (B type)
iPad USB Playback: MP3 or WAV file data / Record: WAV file data USB (A type)



Control I/O specifications

TerminalsFormatLevelConnector
NETWORK IEEE802.3 10BASE-T/100Base-TX RJ-45
FOOT SW TS Phone
