PreSonus FireStudio Project

• Fabricant : PreSonus
• Modèle : FireStudio Project
• Série : Firestudio
• Catégorie : Interfaces audionumériques FireWire
• Fiche créée le : 18/09/2007

Features:

• Input/Output

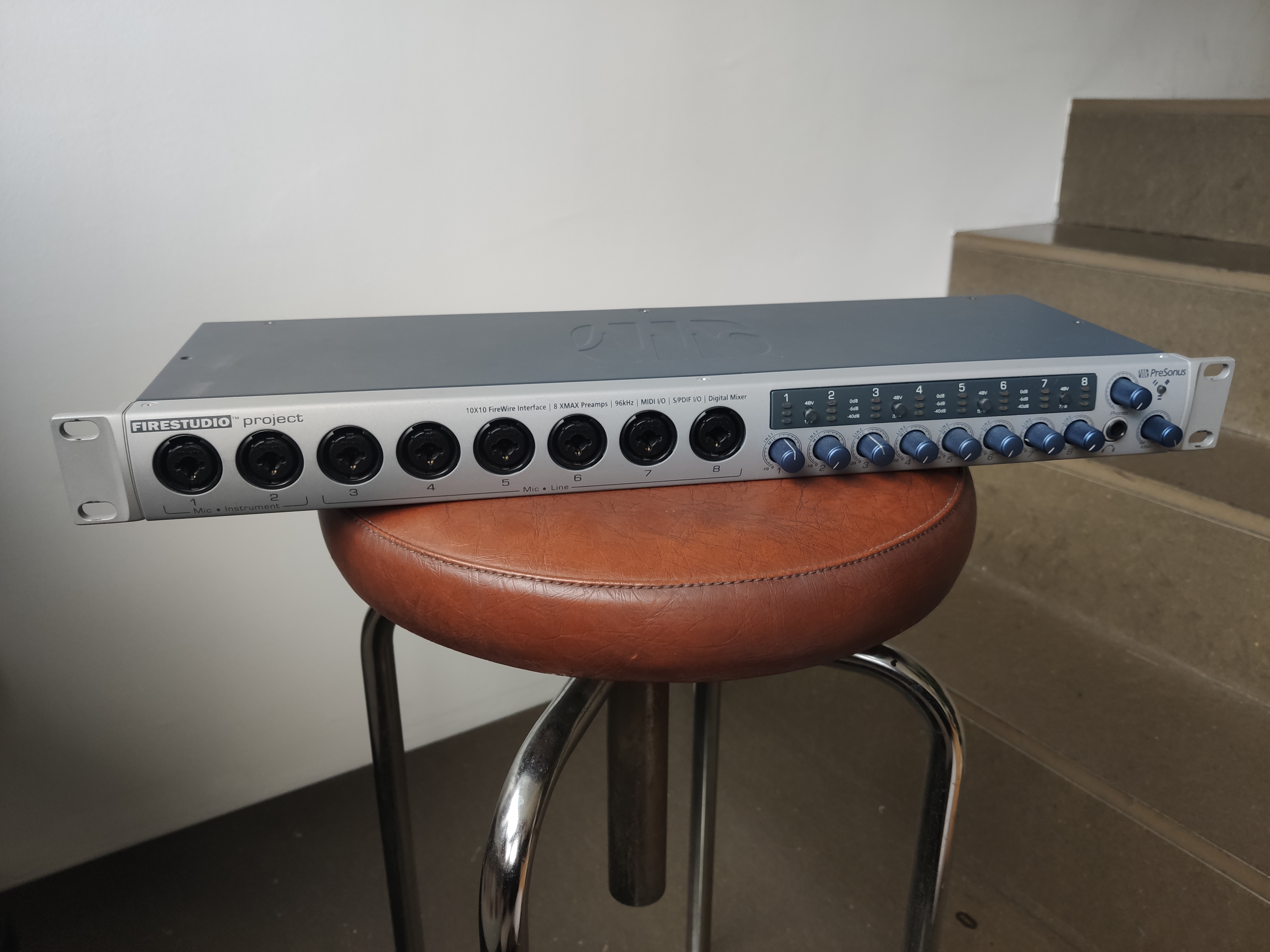

  • 8 dual-purpose front-panel channel inputs, each with high-headroom Class A XMAX™ mic preamplifiers
  • 6 combo XLR/¼” mic/line inputs
  • 2 combo XLR/¼” mic/instrument inputs

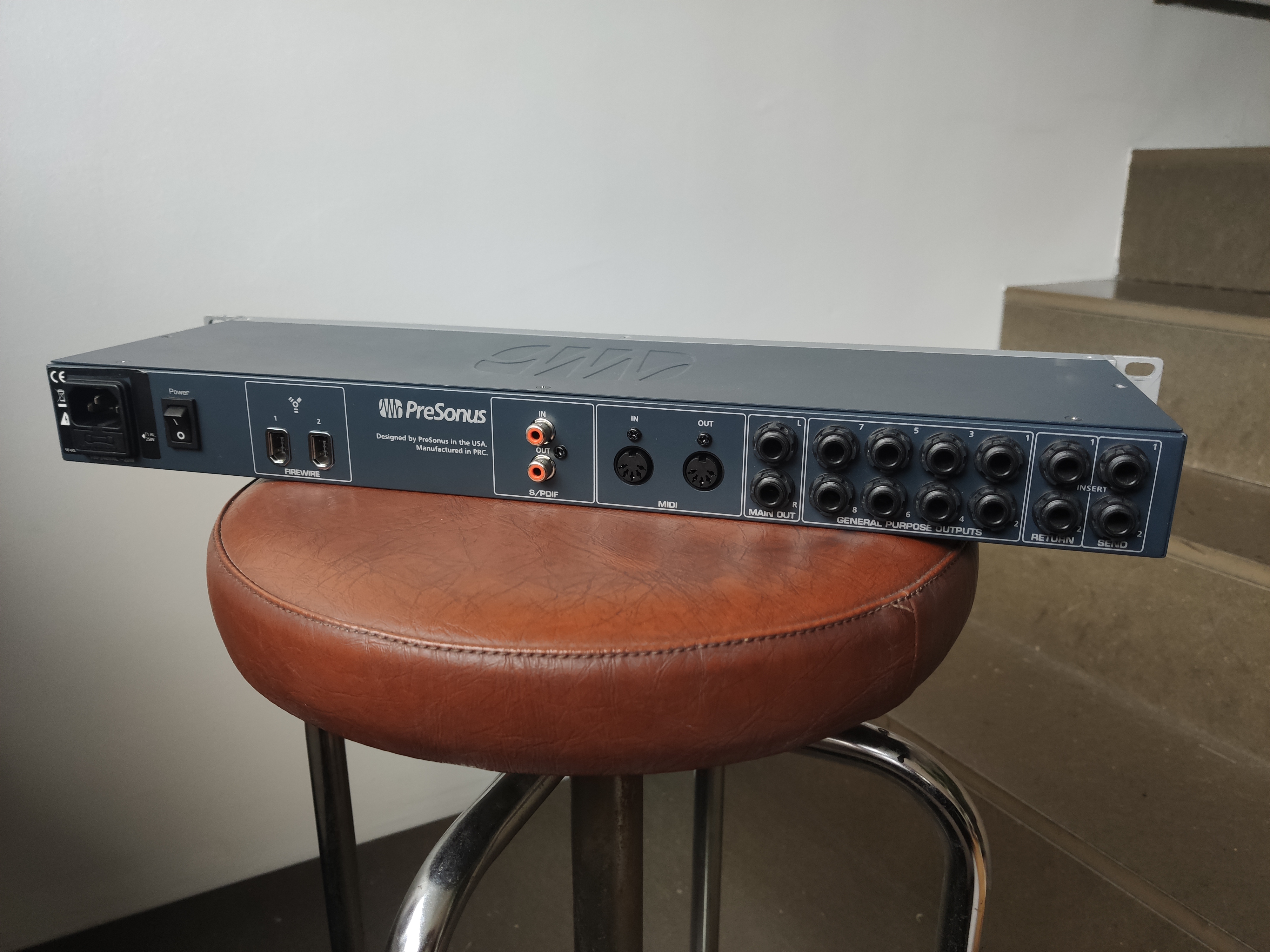

  • 2 balanced ¼” main (L/R) line outputs (carry the same signal as general-purpose outs 1 and 2)
  • 8 general-purpose balanced ¼” line outputs
  • 1 ¼” stereo headphone output with volume control
  • 2 balanced ¼” line-level insert sends (for channels 1 and 2)
  • 2 balanced ¼” line-level insert returns (for channels 1 and 2)
  • S/PDIF in/out (coaxial)
  • MIDI In/Out
  • 2 FireWire 400 ports
• Meters, Controls, and Features
  • Individual channel-trim controls with -16 to +16 dBV line / -4 to +50 dBu mic gain range
  • 48V phantom power for condenser microphones (switchable in pairs)
  • 3-segment, fast-acting LED input metering on all analog channels
  • Main-output level control
  • Power/Sync LED (indicates unit is synced to word clock)
• Daisy-chain multiple FireStudios or other FireStudio-family products to create a large, custom system
• Digitalia
• 24-bit resolution and up to 96 kHz sampling rate
• High-definition A/D/A converters (+114 dBu dynamic range)
• JetPLL™ Jitter Elimination Technology (improved stereo imaging and clarity)
• Zero-latency monitoring via 18x10 DSP matrix mixer/router
• Mac®- and Windows®-compatible, including Mac OS X 10.7 Lion and Windows 7
• Supports ASIO, Core Audio, Direct Sound (Windows XP), Windows Audio Session API (Windows Vista and Windows 7)
• Physical
• 1U 19” rack-mountable, rugged steel chassis
• Sealed, detented, metal rotary controls
• Internal power supply with standard IEC power cord
• Software
• Studio One® Artist 2
  • PreSonus’ revolutionary new digital audio workstation, with unlimited track count and 6+ GB of third-party resources. With Studio One's Nimbit® extension, you can immediately start selling your music.
• Universal Control control-panel application for Mac OS X and Windows

Computer system requirements:

Below are the minimum computer-system requirements for the FireStudio Project:

Windows
Windows® XP SP3, Vista x64/x32 SP2, Windows 7 x64/x32 SP, Windows 8 x64/x32
Intel® Core™ Duo or AMD Athlon™ X2 processor (Intel Core 2 Duo or AMD Athlon X4 or better recommended
2 GB RAM (4 GB or more recommended)

Mac
Mac® OS X 10.6.8 or later
Intel Core Duo processor (Intel Core 2 Duo or Intel Core i3 or better recommended)
2 GB RAM (4 GB or more recommended)

Windows and Mac Systems
FireWire (IEEE 1394) port
Internet connection (only for activation)
DVD-ROM drive
Monitor with at least 1024x768 resolution
20 GB hard-disk space
Internal or external 7200 RPM storage drive highly recommended

Specs:

Microphone Preamp
Type: XLR Female Balanced
Frequency Response (±0.5 dB): 20 Hz to 50 kHz
Frequency Response (±3.0 dB): 20 Hz to 150 kHz
Input Impedance (Balanced): 1600Ω
THD+N (unwtd, 1 kHz @ +4 dBu Output, Unity Gain): < 0.003%
EIN (unwtd, 55 dB Gain, 150Ω Input, 20 Hz to 22 kHz): -126 dBu
S/N Ratio (Unity Gain, unwtd, Ref. = +4 dBu, 20 Hz to 22 kHz): > 101 dB
Common Mode Rejection Ratio (1 kHz, 55 dB Gain): > 55 dB
Gain Control Range (± 1 dB): -4 dB to 50 dB
Maximum Input Level (Unity Gain, 1 kHz @ 0.5% THD+N): +14 dBu
Signal Level LEDs
Red / Clip (±0.5 dBu): +10 dBu (0 dBFS)
Yellow (±0.5 dBu): +4 dBu (-6 dBFS)
Green (±0.5 dBu): -30 dBu (-40 dBFS)
Phantom Power: (±2 VDC) +48 VDC

Instrument Input (Channels 1 and 2 only)
Type: ¼” TRS Female Unbalanced
Input Impedance: 1 MΩ

Line Inputs
Type: ¼” TRS Female Balanced
Frequency Response (±0.5 dB): 20 Hz to 50 kHz
Frequency Response (±3.0 dB): 20 Hz to 150 kHz
Input Impedance (Balanced): 10 KΩ
THD+N (unwtd, 1 kHz @ +4 dBu Output, Unity Gain): < 0.003%
S/N Ratio (Unity Gain, unwtd, Ref. = +4 dBu, 20 Hz to 22 kHz): > 101 dB
Gain Control Range (±1 dB): -16 dB to +16 dB
Maximum Input Level (Unity Gain, 1 kHz @ 0.5% THD+N): +10 dBu
Maximum Input Level (Minimum Gain, 1 kHz @ 0.5% THD+N): +22 dBu

Line Outputs (Preamp, General Purpose, and Main Outputs)
Type: ¼” TRS Balanced
Output Impedance: 51Ω

Headphone Output
Type: ¼” TRS Active Stereo
Maximum Output: 150 mW/ch @ 60Ω Load
Frequency Response (±1.0 dB): 10 Hz – 70 kHz

Digital Audio
FireWire (IEEE 1394) Speed: 400 Mbps
ADC Dynamic Range (A-wtd, 48 kHz sample rate): 114 dB
DAC Dynamic Range (A-wtd, 48 kHz sample rate): 114 dB
Bit Depth: 24
Reference Level for 0dBFS: +10 dBu
Internal Sample Frequency Selections: 44.1, 48, 88.2, 96 kHz
External Sample Frequency Input: S/PDIF
Clock Jitter: <20 ps RMS, 20 Hz-20 kHz
Clock Jitter Attenuation: >60dB; 1 ns in, approx.1 ps out

Power
Input Connector Type: IEC
Input Voltage Range: 90 to 230 VAC
Power Requirements (Continuous): 20W

Physical
Dimensions: 1U rackmount
Height: 1.75” (44.45 mm)
Depth: 7” (177.8 mm)
Width: 19” (482.6 mm)
Weight: 7 lbs. (3.18 kg)
