Universal Audio Apollo 8 Quad

• Fabricant : Universal Audio
• Modèle : Apollo 8 Quad
• Série : Apollo
• Catégorie : Interfaces audio Thunderbolt
• Fiche créée le : 12/01/2017

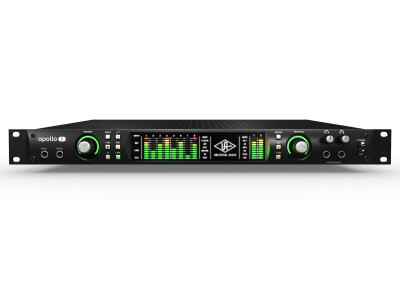

L'Apollo 8 est une interface audio thunderbolt équipée d'un processeur UAD-2 Quad. Elle a 18 entrées, 24 sorties et 4 préamplis micro.

Audio Interface

• Sample rates up to 192 kHz at 24-bit word length
• 18 x 24 simultaneous input/output channels:
• Eight channels of analog-to-digital conversion via mic, line, or high-impedance inputs
• 14 channels of digital-to-analog conversion via:
  • Eight mono line outputs
  • Stereo monitor outputs (switchable to fixed line outputs)
  • Two stereo headphone outputs
• 10 channels of digital I/O via:
  • Eight channels ADAT Optical Lightpipe I/O with S/MUX for high sample rates
  • Two channels coaxial S/PDIF I/O with sample rate conversion
• Two Thunderbolt 2 ports facilitates daisy-chaining of other Thunderbolt devices
• Cascade up to 4 Apollo interfaces and 6 UAD devices total over Thunderbolt (Mac)

• Four high-resolution, ultra-transparent, digitally-controlled analog mic preamps
• Unison™ technology for deep integration with UAD preamp and pedal plug-ins
• Front panel and software control of all preamp parameters
• Switchable low cut filter, 48V phantom power, pad, polarity inversion, and stereo linking

• Stereo monitor outputs (independent of the eight line outputs)
• Digitally-controlled analog monitor outputs maintains highest fidelity
• Front panel control of monitor levels and muting
• Two stereo headphone outputs with independent mix buses
• Independent front panel volume controls for headphone outputs
• Front panel pre-fader metering of monitor bus levels
• S/PDIF outputs can be set to mirror the monitor outputs
• Up to two alternate stereo monitor outputs selectable via front panel or Console software
• Assignable front panel monitor function switch for alternate speakers, dim, & mono

• DUO and QUAD models featuring two or four SHARC® processors
• Realtime UAD Processing on all analog and digital inputs
• Same features and functionality as other UAD-2 devices when used with DAW
• Can be combined with other UAD-2 devices for increased mixing DSP
• Includes UAD Powered Plug-Ins “Realtime Analog Classics Plus” bundle
• Complete UAD plug-ins library is available at the UA online store

• Console application:
  • Analog-style control interface for realtime monitoring and tracking
  • Enables Realtime UAD Processing with UAD plug-ins
  • Remote control of Apollo 8p features and functionality
  • Virtual I/O for routing DAW tracks through Console
• Console Recall plug-in:
  • Saves Console configurations inside DAW sessions for easy recall
  • Convenient access to Console’s monitor controls via DAW plug-in
  • VST, RTAS, AAX 64, and Audio Units plug-in formats
• UAD Meter & Control Panel application:
  • Configures global UAD settings and monitors system usage
• Other
  • Easy firmware updates

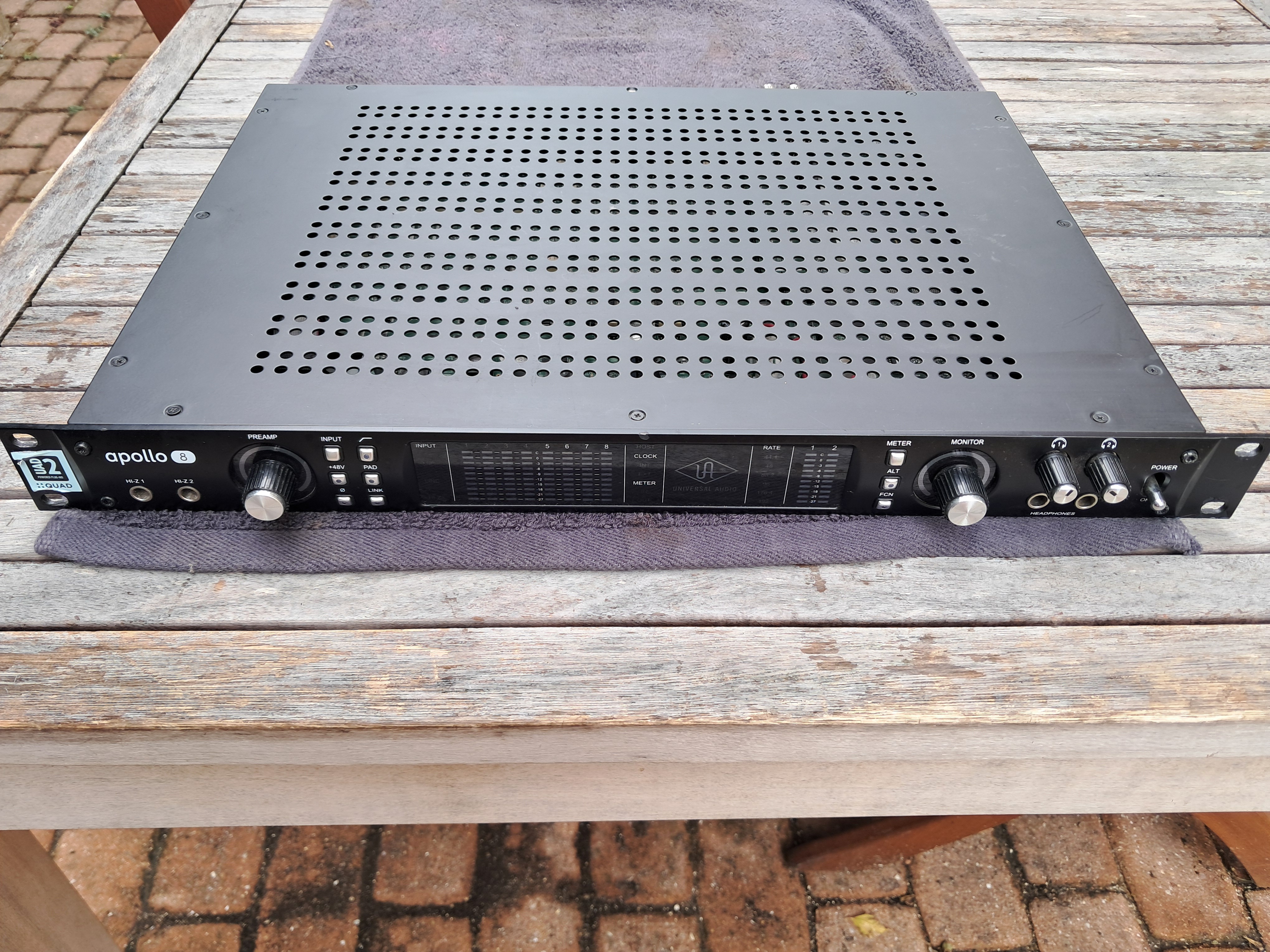

  • 1U rack-mountable form factor
  • One year warranty includes parts and labor

Thunderbolt Systems

UAD Powered Plug-Ins version 8

• Apple Mac computer with available Thunderbolt or Thunderbolt 2 port
• Mac OS X 10.8.5 Mountain Lion, 10.9.x Mavericks, or 10.10.x Yosemite
• 4 gigabytes available disk space
• Internet connection to download software and authorize UAD plug-ins
• Compatible VST, Audio Units, RTAS, or AAX 64 plug-in host DAW software
• Thunderbolt cable (sold separately)

Note: All specifications are typical performance unless otherwise noted, tested under the following conditions: 48 kHz internal sample rate, 24-bit sample depth, 20 kHz measurement bandwidth, with balanced output.

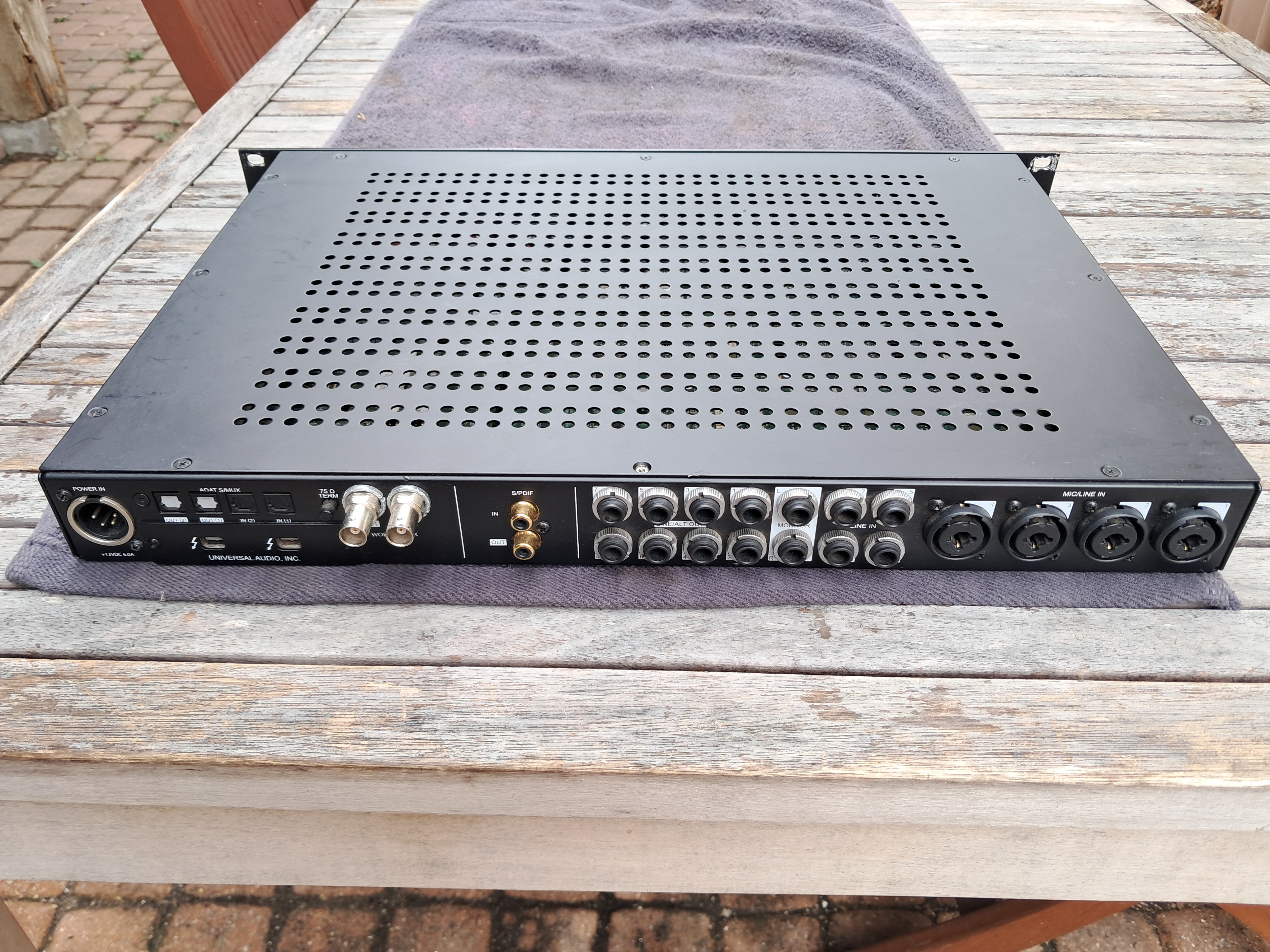

• I/O Complement
  • Microphone Inputs 4
  • High-Impedence (Hi-Z) Instrument Inputs 2
  • Analog Line Inputs 8
  • Analog Line Outputs 8 (ten including monitor outputs)
  • Analog Monitor Outputs 2 (one stereo pair)
  • Headphone Outputs 2 Stereo
  • ADAT Up to eight channels via dual I/O ports with S/MUX
  • S/PDIF One stereo input, one stereo output
  • Thunderbolt 2 ports 2 (Thunderbolt 1 compatible)
  • Word Clock 1 input, 1 output
• A/D – D/A Conversion
  • Supported Sample Rates (kHz) 44.1, 48, 88.2, 96, 176.4, 192
  • Bit Depth Per Sample 24
  • Simultaneous A/D conversion 8 channels
  • Simultaneous D/A conversion 14 channels
  • Analog Round-Trip Latency 1.1 milliseconds @ 96 kHz sample rate
  • Analog Round-Trip Latency with four serial UAD-2 plug-ins via Console application 1.1 milliseconds @ 96 kHz sample rate

• Frequency Response 20 Hz – 20 kHz, ±0.1 dB
• Microphone Inputs 1 - 4
  • Connector Type XLR Female, pin 2 positive (Combo XLR/TRS)
  • Phantom Power +48V (switchable per mic input)
  • Dynamic Range 120 dB (A–weighting)
  • Signal-to-Noise Ratio 120 dB (A–weighting)
  • Total Harmonic Distortion + Noise –110 dBFS
  • Common-Mode Rejection Ratio (CMRR) 73 dB (10’ cable)
  • Default Input Impedance 5.4K Ohms (variable via Unison plug-ins)
  • Gain Range +10 dB to +65 dB
  • Pad Attenuation 20 dB (switchable per input)
  • Maximum Input level +25 dBu (minimum gain, pad engaged)
• Hi-Z Inputs 1 - 2
  • Connector Type ¼” Female TS Unbalanced
  • Dynamic Range 118 dB (A–weighting)
  • Signal-to-Noise Ratio 118 dB (A–weighting)
  • Total Harmonic Distortion + Noise –101.5 dBFS
  • Input Impedance 1M Ohms (variable via Unison plug-ins)
  • Gain Range +10 dB to +65 dB
  • Maximum Input Level +12 dBu
• Line Inputs 1 – 4
  • Connector Type ¼” Female TRS Balanced (Combo XLR/TRS)
  • Dynamic Range 120 dB (A–weighting)
  • Signal-to-Noise Ratio 120 dB (A–weighting)
  • Total Harmonic Distortion + Noise –110 dBFS
  • Common-Mode Rejection Ratio (CMRR) 60 dB (10’ cable)
  • Input Impedance 10K Ohms
  • Gain Range +10 dB to +65 dB (Line Input Gain = ON)
  • Reference Level +4 dBu (Line Input Gain = BYPASS)
  • Maximum Input Level +20.2 dBu
• Line Inputs 5 – 8
  • Connector Type ¼” Female TRS Balanced (Combo XLR/TRS)
  • Dynamic Range 120 dB (A–weighting)
  • Signal-to-Noise Ratio 120 dB (A–weighting)
  • Total Harmonic Distortion + Noise –110 dBFS
  • Common-Mode Rejection Ratio (CMRR) 60 dB (10’ cable)
  • Input Impedance 10K Ohms
  • Gain (selectable per input) +4 dBu or –10 dBV
  • Maximum Input Level (+4 dBu setting) +20.2 dBu
  • Maximum Input Level (–10 dBV setting) +6.2 dBV (unbalanced)
• Line Outputs 1 – 8
  • Connector Type ¼” Female TRS Balanced
  • Dynamic Range 121 dB (A–weighting)
  • Signal-to-Noise Ratio 121 dB (A–weighting)
  • Total Harmonic Distortion + Noise –110 dBFS
  • Stereo Level Balance ±0.05 dB
  • Output Impedance 100 Ohms
  • Maximum Output Level +20.2 dBu
• Monitor Outputs Left & Right
  • Connector Type ¼” Female TRS Balanced
  • Dynamic Range 121 dB (A–weighting)
  • Signal-to-Noise Ratio 121 dB (A–weighting)
  • Total Harmonic Distortion + Noise –110 dBFS
  • Stereo Level Balance ±0.01 dB
  • Output Impedance 100 Ohms
  • Maximum Output Level +20.2 dBu
• Stereo Headphone Outputs 1 – 2
  • Connector Type ¼” Female TRS Stereo
  • Dynamic Range 118 dB (A–weighting)
  • Signal-to-Noise Ratio 118 dB (A–weighting)
  • Total Harmonic Distortion + Noise –101 dBFS
  • Maximum Output Power 160 mW into 300 ohm load

• S/PDIF
  • Connector Type Female Phono (RCA)
  • Format IEC958
  • Supported Sample Rates (kHz) 44.1, 48, 88.2, 96, 176.4, 192
• ADAT
  • Connector Type (shared with ADAT) Optical TOSLINK JIS F05
  • Format ADAT Digital Lightpipe with S/MUX
  • Supported Sample Rates (kHz) 44.1, 48, 88.2, 96, 176.4, 192
  • Channel Assignments @ 44.1 kHz, 48 kHz Port 1 = Channels 1 – 8, Port 2 = 1 – 8 (mirrored)
  • Channel Assignments @ 88.2 kHz, 96 kHz Port 1 = Channels 1 – 4, Port 2 = Channels 5 – 8
  • Channel Assignments @ 176.4 kHz, 192 kHz Port 1 = Channels 1 – 2, Port 2 = Channels 3 – 4
• Word Clock
  • Connector Type BNC
  • Lock Range ±0.5% of any supported sample rate
  • Word Clock Input Termination 75 Ohms, switchable
• Synchronization Sources
  • Internal, Word Clock, S/PDIF, ADAT

• Power Supplies External AC to DC Power Supply, Level V compliant
• AC Input Connector Type IEC Male
• AC Requirements 100V – 240V AC, 50 – 60 Hz
• DC Connector Type XLR 4-Pin Locking Male (Neutrik P/N NC4MDM3-H)
• DC Requirements 12 VDC, ±5%
• Maximum Power Consumption 50 Watts

• Dimensions
  • Width 19”
  • Height 1.75” (1U rack space)
  • Depth, Chassis Only 12.125”
  • Depth, Including Knob & Jack Protrusions 13.5”
  • Shipping Box (Width x Depth x Height) 24” x 17” x 8”
• Weight
  • Shipping Weight (with box & accessories) 18 pounds
  • Weight (bare unit) 9.1 pounds

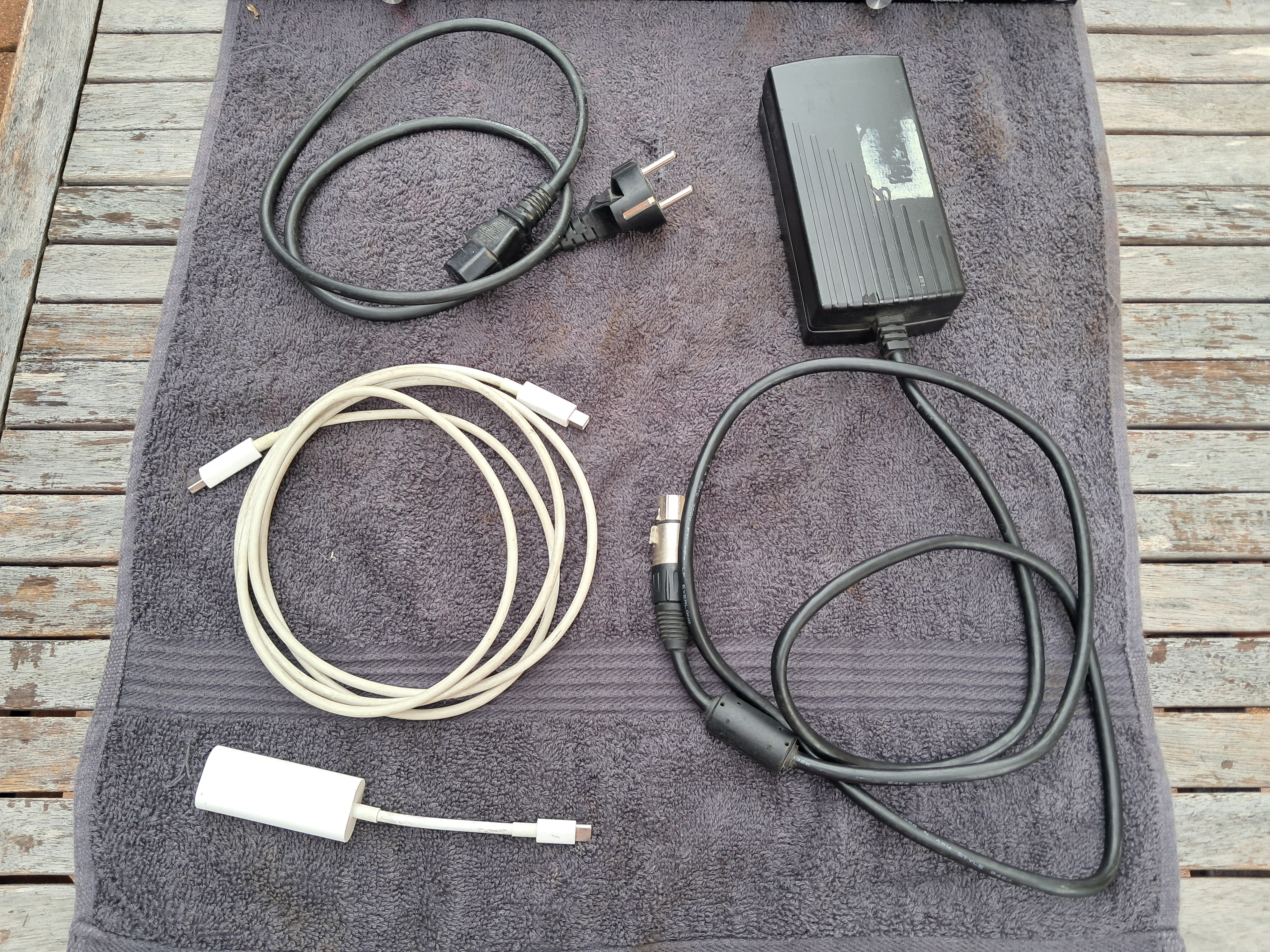

• Package Contents
  • Apollo 8 Audio Interface Unit
  • External Power Supply
  • AC Power Cable (IEC)
  • Set of (4) Rack-Mount Screws
  • Getting Started URL Card
