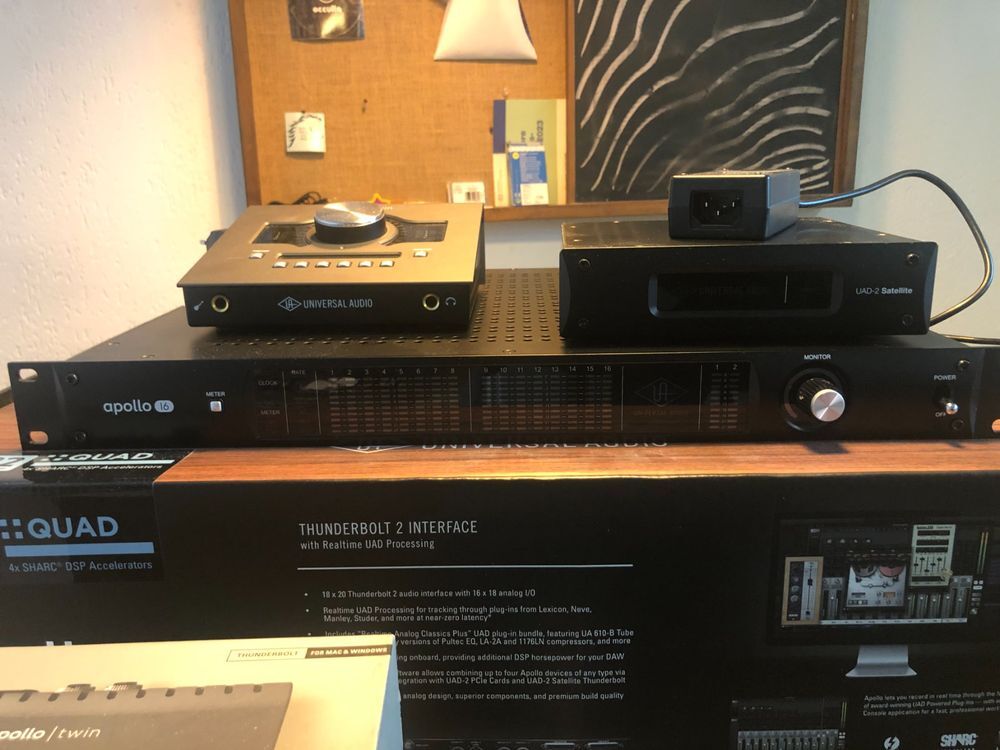

Universal Audio Apollo 16 MkII

• Fabricant : Universal Audio
• Modèle : Apollo 16 MkII
• Série : Apollo
• Catégorie : Interfaces audio Thunderbolt
• Fiche créée le : 15/04/2015

System

• I/O Complement
  • Analog Line Inputs 16
  • Analog Line Outputs 16 (not including monitor outputs)
  • Analog Monitor Outputs Two (one stereo pair)
  • AES/EBU Two (Thunderbolt 1 compatible)
  • Thunderbolt 2 ports Two (Thunderbolt 1 compatible)
  • Word Clock One input, one output
• A/D – D/A Conversion
  • Supported Sample Rates (kHz) 44.1, 48, 88.2, 96, 176.4, 192
  • Bit Depth Per Sample 24
  • Simultaneous A/D conversion 16 channels
  • Simultaneous D/A conversion 18 channels
  • Analog Round-Trip Latency 1.1 milliseconds @ 96 kHz sample rate
  • Analog Round-Trip Latency with four serial UAD-2 plug-ins via Console application 1.1 milliseconds @ 96 kHz sample rate

• Frequency Response 20 Hz – 20 kHz, ±0.1 dB
• Line Inputs 1 – 16
  • Connector Type Two Female DB25, Tascam wiring
  • Dynamic Range 119 dB (A–weighting)
  • Signal-to-Noise Ratio 119 dB (A–weighting)
  • Total Harmonic Distortion + Noise –112.5 dB @ -1 dBFS
  • Common-Mode Rejection Ratio (CMRR) 75 dB (10’ cable)
  • Input Impedance 10K Ohms
  • Input Reference Level +4 dBu (fixed)
  • Maximum Input Level (+4 dBu setting) +20.2 dBu
  • Maximum Input Level (-10 dBV setting) +6.2 dBV (unbalanced)
• Line Outputs 1 – 16
  • Connector TypeTwo Female DB25, Tascam wiring
  • Dynamic Range 126 dB (A–weighting)
  • Signal-to-Noise Ratio 126 dB (A–weighting)
  • Total Harmonic Distortion + Noise –118 dBFS @ -1 dBFS
  • Stereo Level Balance ±0.01 dB
  • Output Impedance 100 Ohms
  • Maximum Output Level +20.2 dBu
• Monitor Outputs 1 – 2
  • Connector Type XLR Male
  • Dynamic Range 124 dB (A–weighting)
  • Signal-to-Noise Ratio 123 dB (A–weighting)
  • Total Harmonic Distortion + Noise –117 dBFS
  • Stereo Level Balance ±0.01 dB
  • Output Impedance 100 Ohms
  • Maximum Output Level +20.2 dBu

• AES/EBU
  • Connector Type XLR
  • Format IEC 60958 Type I
• MADI (Not Implemented)
  • Connector Type Dual Optical SC-Plug (ISO/IEC 9314-3)
• Word Clock
  • Connector Type BNC
  • Lock Range ±0.5% of any supported sample rate
  • Word Clock Input Termination 75 Ohms, switchable
• Synchronization Sources
  • Internal, Word Clock, AES/EBU

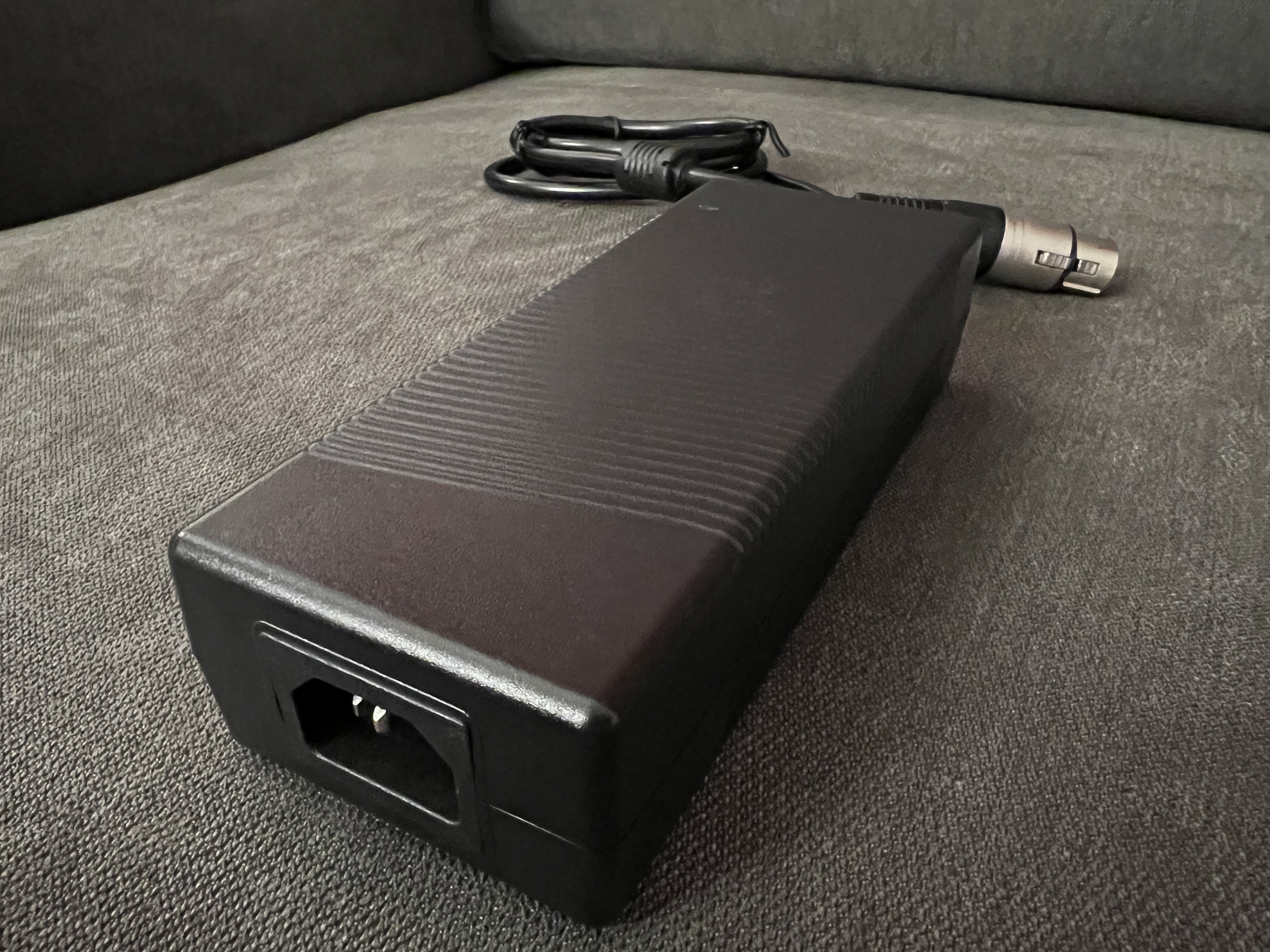

• Power Supplies External AC to DC Power Supply, Level V compliant
• AC Input Connector Type IEC Male
• AC Requirements 100V – 240V AC, 50 – 60 Hz
• DC Connector Type XLR 4-Pin Locking Male (Neutrik P/N NC4MDM3-H)
• DC Requirements 12 VDC, ±5%
• Maximum Power Consumption 50 Watts

• Dimensions
  • Width 19”
  • Height 1.75” (1U rack space)
  • Depth, Chassis Only 12.125”
  • Depth, Including Knob & Jack Protrusions 13.5”
  • Shipping Box (Width x Depth x Height) 24” x 17” x 8”
• Weight
  • Shipping Weight (with box & accessories) 18 pounds
  • Weight (bare unit) 8.7 pounds
• Package Contents
• Apollo 16 mkII Audio Interface Unit

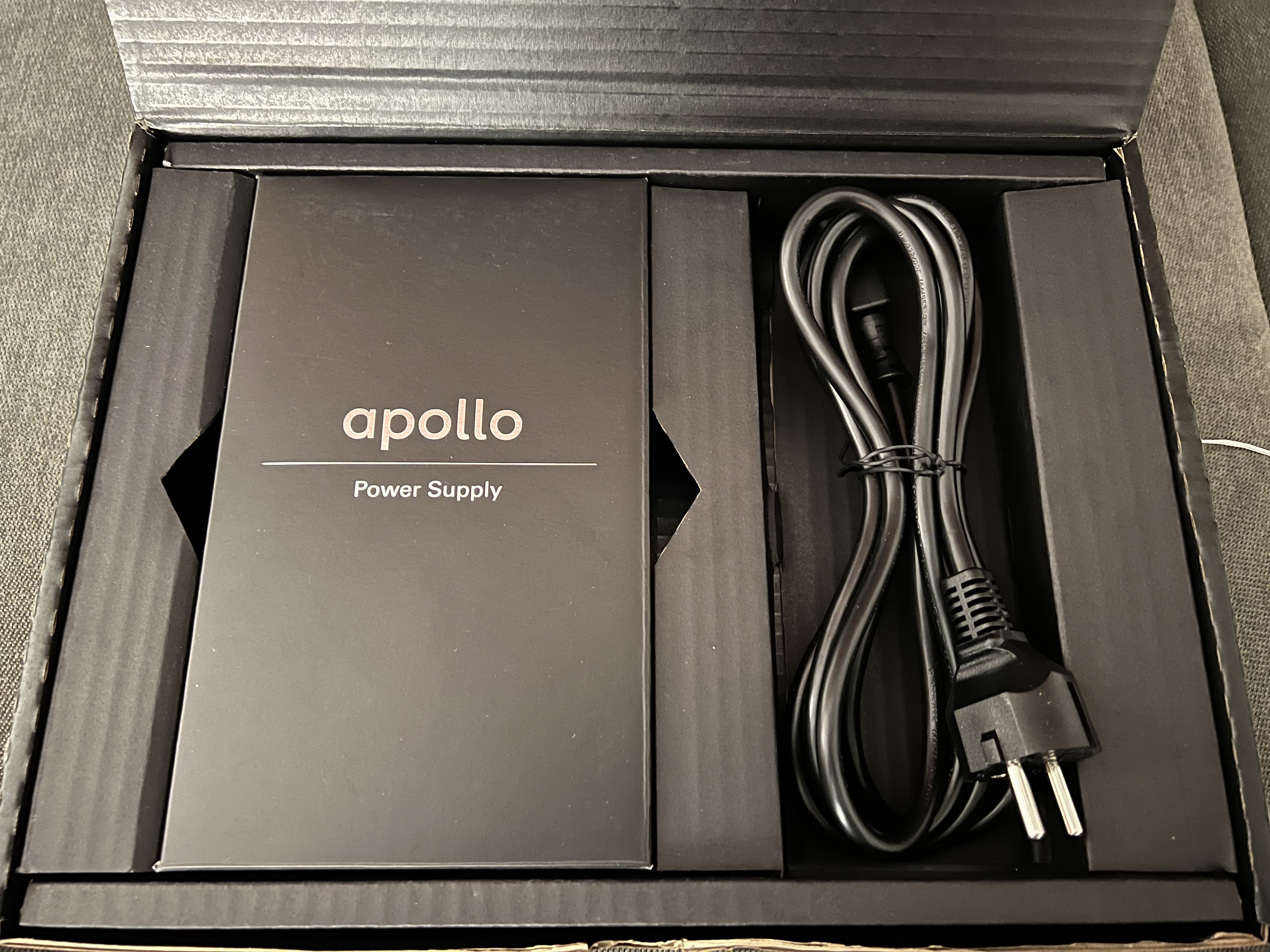

• External Power Supply
• AC Power Cable (IEC)
• Getting Started URL Card
• Set of (4) Rack-Mount Screws

Note: All specifications are typical performance unless otherwise noted, tested under the following conditions: 48 kHz internal sample rate, 24-bit sample depth, 20 kHz measurement bandwidth, with balanced output.

Source : http://www.uaudio.com/interfaces/apollo-16-mkii.html
