Annonces TG-X 50
Alerte nouvelle annonceForums Beyerdynamic TG-X 50
Images
Fiche technique
- Fabricant : Beyerdynamic
- Modèle : TG-X 50
- Série : TG
- Catégorie : Microphones dynamiques
- Fiche créée le : 05/09/2011

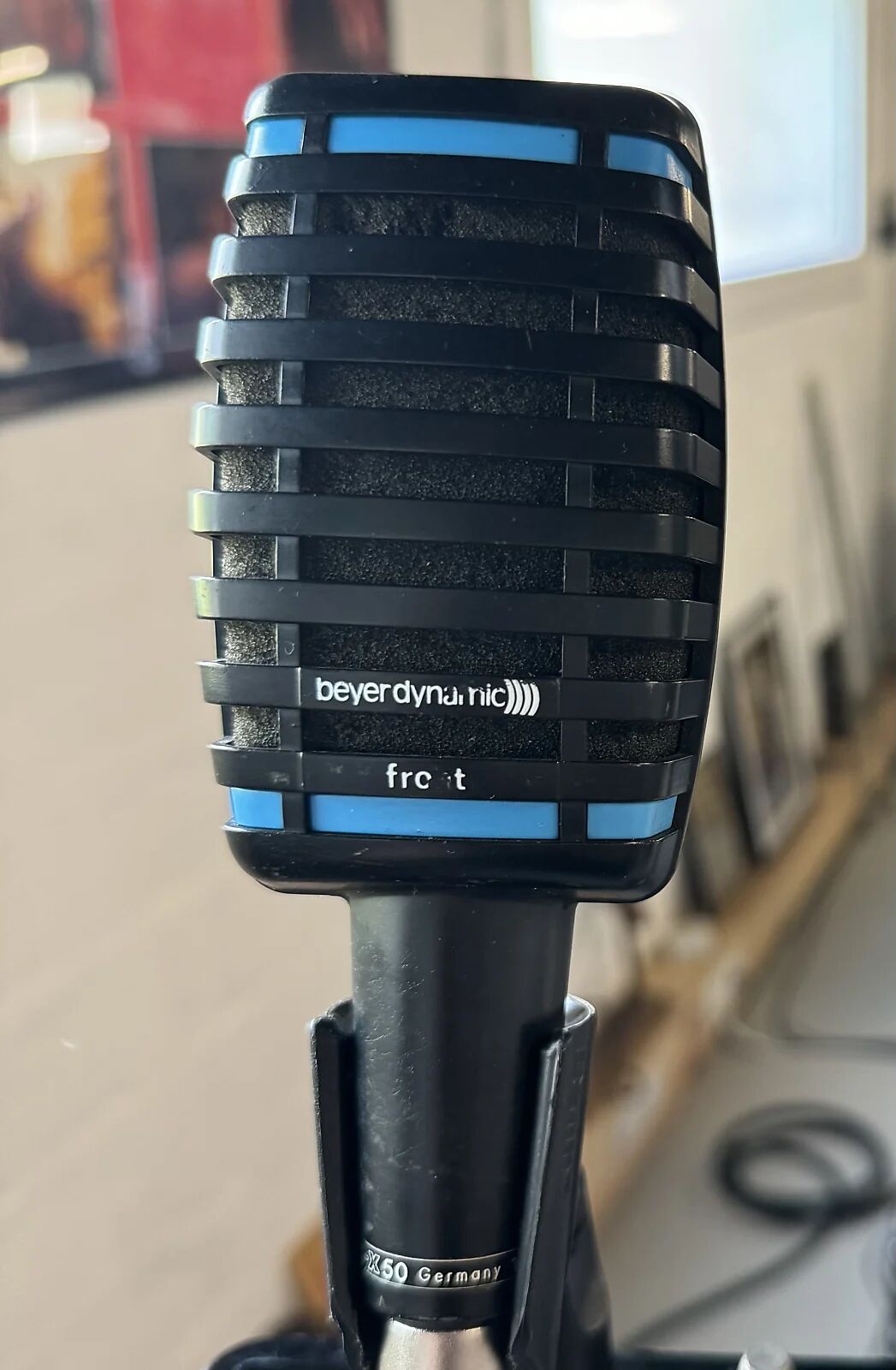

The TG-X 50 is a large-diaphragm dynamic microphone intended for use on kick drum and other bass instruments.
It is built into the case of the M 380, but differs from that mic in just about every other respect. The TG-X 50 is hypercardioid, and uses a traditional moving-coil capsule rather than a repurposed headphone driver.
The TG-X 50 capsule was taken from the TG-X 80 handheld vocal microphone. The same capsule shows up in the Opus 99, M 99 TG, and Opus 65.
The mic had no output transformer or other circuitry of any kind. The schematic shows a hum-compensation coil, but this is built into the capsule itself.
Specifications| Frequency Response - HypercardioidClick Graph to Compare! |
|---|
 |
| Pickup Patterns | Pads & Filters |
|---|---|
| Hypercardioid (3.2 mV/Pa; 15 - 18,000) |
| Coil Diameter | Impedance | SPL/Noise |
|---|---|---|
| n/a | 280 Ohms (Low) | Max SPL: 150 dB |
| Weight | Length | Max Diameter | Interface(s) |
|---|---|---|---|
| 380g (13.40oz) | n/a | n/a |
|
