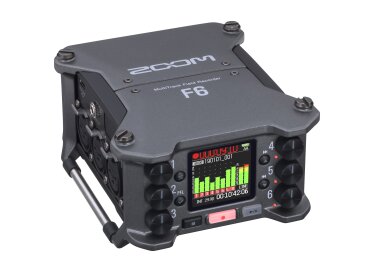

F6, Enregistreur/Studio de poche de la marque Zoom.

Neuf à partir de 585 € Prix moyen : 611 €
Occasion à partir de 579 € Argus occasion : 579 €Attention, cote argus calculée sur un petit nombre d'annoncesEn savoir plus…

Fiche technique Zoom F6

  • Fabricant : Zoom
  • Modèle : F6
  • Catégorie : Enregistreurs/Studios de poche
  • Fiche créée le : 22/05/2019

Enregistreur portable 6 entrées en 32 bits à virgule flottante avec port pour carte SD, double convertisseur A/N, etc.

Recording Media:

SD cards, SDHC cards, SDXC cards (that conform to standards)

INPUTS
Inputs 1–6:

Connectors XLR jack (pin 2 hot)

Input (mic):

Input gain +12 dB - +75 dB
Input impedance 3 kΩ or more
Maximum input level +4 dBu

Input (line):

Input gain −8 dB - +55 dB
Input impedance 5 kΩ or more
Maximum input level +24 dBu

Phantom power:

+24/+48V 10mA maximum for each channel

Equivalent input noise:

−127 dBu or less (A-weighted, +75 dB input gain, 150 Ω input)

OUTPUTS
Line output:

Connectors 3.5 mm stereo mini unbalanced output
Output impedance 100 Ω or less
Reference output level –10 dBV, 1 kHz, 10 kΩ load
Maximum output level +10 dBV, 1 kHz, 10 kΩ load
D/A dynamic range 95 dB typ (−60dBFS input, A-weighted)

Headphone output:

Connector 3.5 mm stereo mini unbalanced output
Output impedance 15 Ω or less
Maximum output level 100 mW + 100 mW (32Ω load)
D/A dynamic range 108 dB typ (−60dBFS input, A-weighted)

RECORDING FORMATS
When WAV selected:
Supported formats:

44.1/47.952/48/48.048/88.2/96/192 kHz, 16/24-bit/32-bit float,
mono/stereo/2-8ch poly, BWF/iXML

Maximum simultaneous recording tracks:

14 (6 inputs x 2 (Linear and Floating) + LR mix)
6 (6 inputs (Linear or Floating) at Float(32bit) Mode, 192 kHz)

When MP3 selected:
Supported formats:

128/192/320 kbps, 44.1/48 kHz, ID3v1 tags

Maximum simultaneous recording tracks:

2

RECORDING TIME
Using a 32 GB card:

30:46:00 (48 kHz/24-bit stereo WAV)
7:41:00 (192 kHz/24-bit stereo WAV)

TIMECODE
Connectors:

3.5 mm stereo mini (Tip: IN, Ring: OUT)

Modes:

Off, Int Free Run, Int Record Run, Int RTC Run, Ext, Ext Auto Rec
(audio clock can be synchronized to timecode)

Frame rates:

23.976 ND, 24 ND, 25 ND, 29.97 ND, 29.97 D, 30 ND, 30 D

Precision:

±0.2 ppm

Allowed input level:

0.2 – 5.0 Vpp

Allowed input impedance:

4.6 kΩ

Output level:

3.3 Vpp

Output impedance:

50 Ω or less

POWER
Options:

AC adapter : DC 5V (supports USB bus power)
Sony® L-Series battery
4 AA batteries (alkaline, lithium or rechargeable NiMH batteries)

Continuous recording time:
48 kHz/16-bit 2ch recording to SD card (LINE OUT off, TIMECODE off, LED/LCD Brightness 5, headphones into 32Ω load, PHANTOM off):

Alkaline batteries 7.5 hours or more
NiMH batteries
(2450 mAh)
10.5 hours or more
Lithium batteries 16.5 hours or more

48 kHz/24-bit 6ch recording to SD card (LINE OUT off, TIMECODE off, LED/LCD Brightness 5, headphones into 32Ω load, PHANTOM off):

Alkaline batteries 5.0 hours or more
NiMH batteries
(2450 mAh)
7.0 hours or more
Lithium batteries 10.5 hours or more

192 kHz/24-bit 6ch recording to SD card (LINE OUT on, TIME CODE set to Int Free Run, LED/LCD Brightness 60, headphones into 32Ω load, PHANTOM at 48 V):

Alkaline batteries 0.5 hours or more
NiMH batteries (2450
mAh)
1.5 hours or more
Lithium batteries 3.5 hours or more


Display:

1.54" full-color LCD (240 × 240)

USB
Mass storage operation:

Class USB 2.0 High Speed

Multitrack audio interface operation (driver required for Windows, no driver required for MacOS):

Class USB 2.0 High Speed
Specifications Sampling rate 44.1/48/88.2/96 kHz
Bit Rate 16/24-bit
Channels 6 in/4 out

Stereo mix audio interface operation (no driver required):

Class USB 2.0 Full Speed
Specifications Sampling rate 44.1/48 kHz
Bit Rate 16-bit
Channels 2 in/2 out
Note: iOS device audio interface operation supported (stereo mode only)

AIF with Rec operation (driver required for Windows, no driver required for MacOS):

Class USB 2.0 High Speed
Specifications Sampling rate 44.1/48 kHz
Bit Rate 16/24-bit
Channels 8 in/4 out


Power consumption:

10 W

External dimensions:

100 mm (W) x 119.8 mm (D) x 62.9 mm (H)

Weight:

520 g

Distribué par Mogar

»

Acheter neuf Zoom F6

Espace Claviers
(59 avis)
F6 585 €
Terre de Son
(31 avis)
F6 595 €
SonoVente
(113 avis)
F6 595 €
Univers Sons
(96 avis)
F6 595 €
Woodbrass
(474 avis)
F6 598 €

Acheter d'occasion Zoom F6

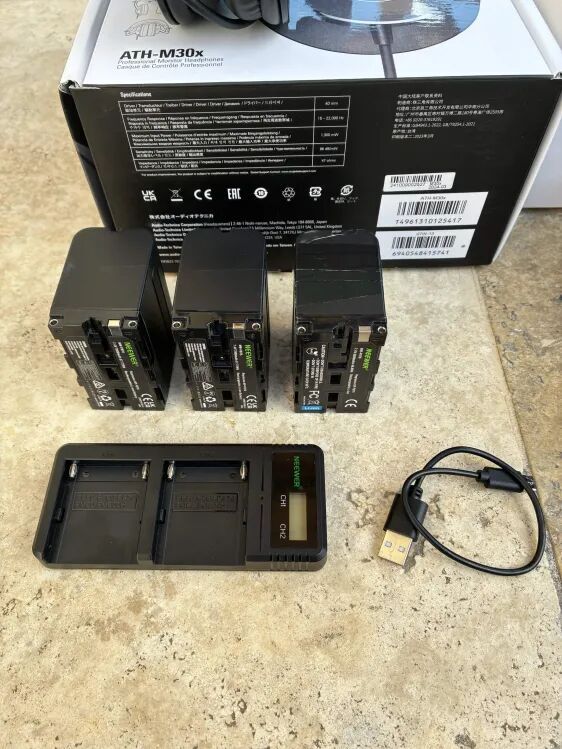

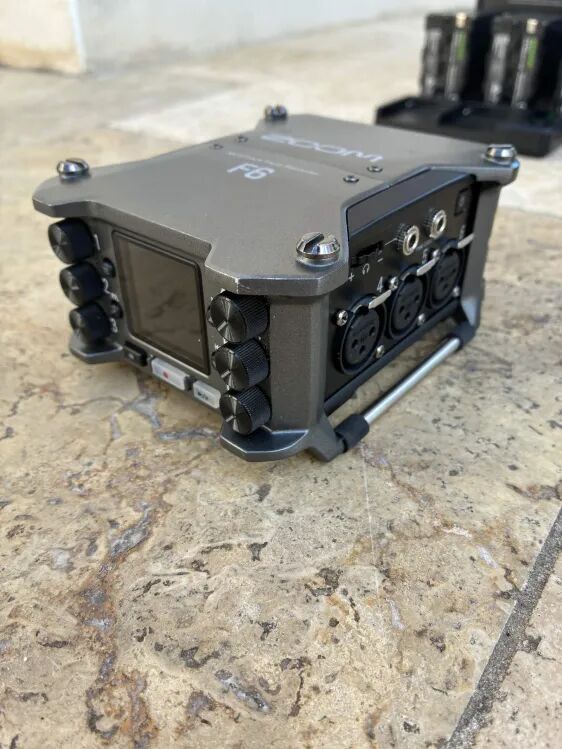

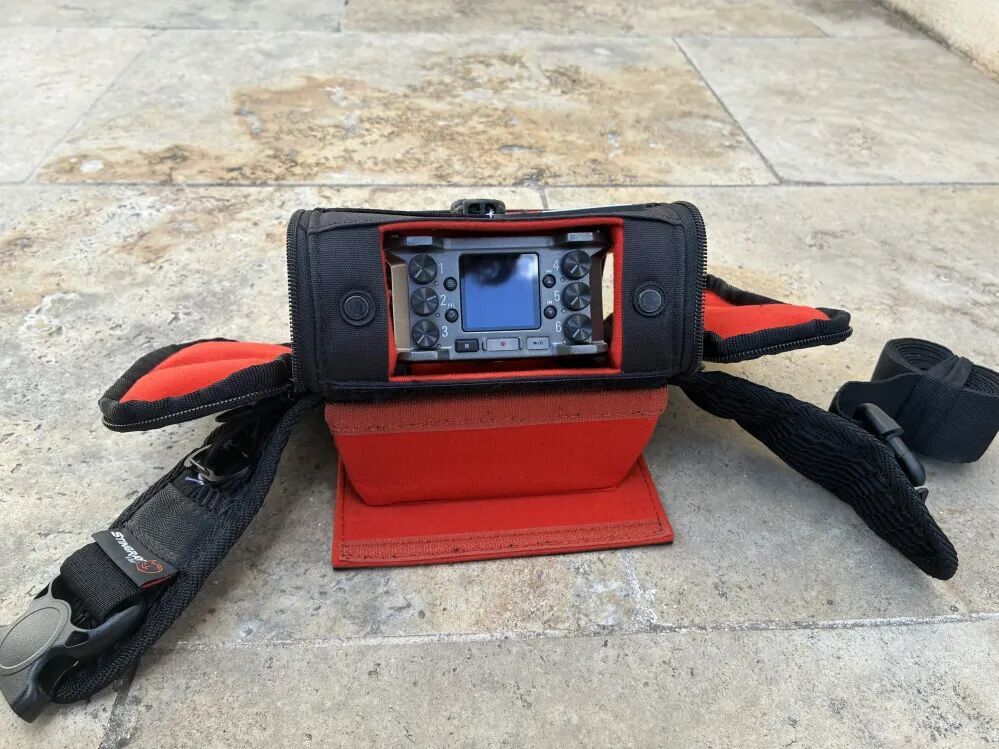

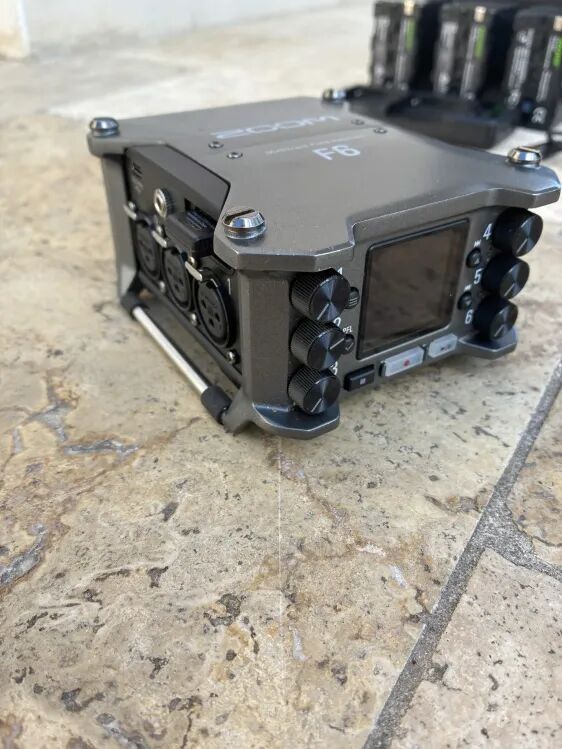

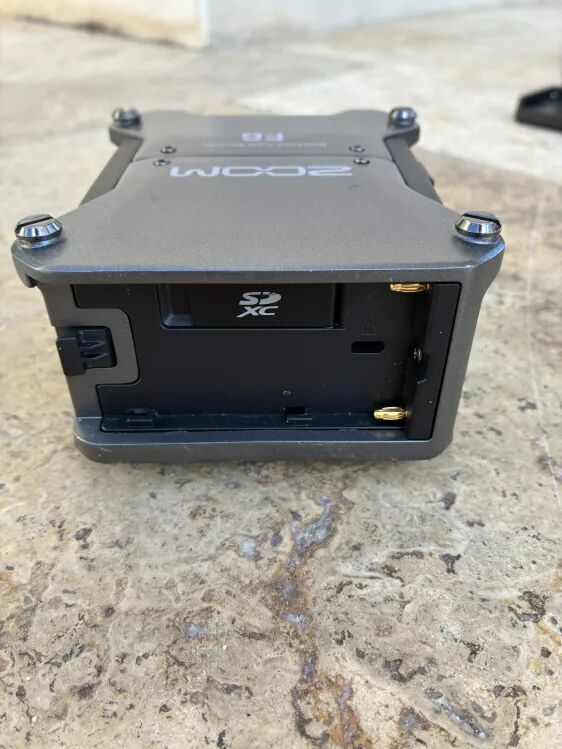

Zoom F6 ZOOM F6 exposition vitrine jamais ouvert. 579 € »
