Clavia Nord Electro 3 73

• Fabricant : Clavia
• Modèle : Nord Electro 3 73
• Série : Nord Electro 3
• Catégorie : Pianos Numériques
• Fiche créée le : 14/11/2008

• Keybed Nord Electro 3: 61-key (5 octaves, C-C) or 73-key (6 octaves, F-F). Velocity sensitive Semi Weighted Waterfall keyboard
• Keybed Nord Electro 3 HP: 73-key (6 octaves, E-E) Hammer Action Portable keyboard

• 5 selectable types of pianos - Grand, Upright, EPiano, Wurl & Clav/Harpsichord. Each type can contain several different models
• 185 MB of the flash memory is allocated to the piano types
• Each and every piano in the Electro 3 is replacable by the user. New models can be uploaded to the Electro 3 using the Nord Sound Manager application
• String Resonance (Generation 1)

• The Sample Library section can contain up to 50 samples from the Nord Sample Library
• 68 MB of the flash memory is allocated to samples
• Stereo pianos and samples can be played back in mono
• 40-60 Voices polyphony

Nord Electro 3 HP specific features:

• String Resonance-control (ON/OFF)
• 4 Selectable Dynamic Response Curves

• Organ section from the acclaimed Nord C1 Combo Organ
• Three classic organ models: B3, Vox Continental, and Farfisa with full polyphony
• 9 digitally controlled drawbars
• Two complete organ registrations for every program

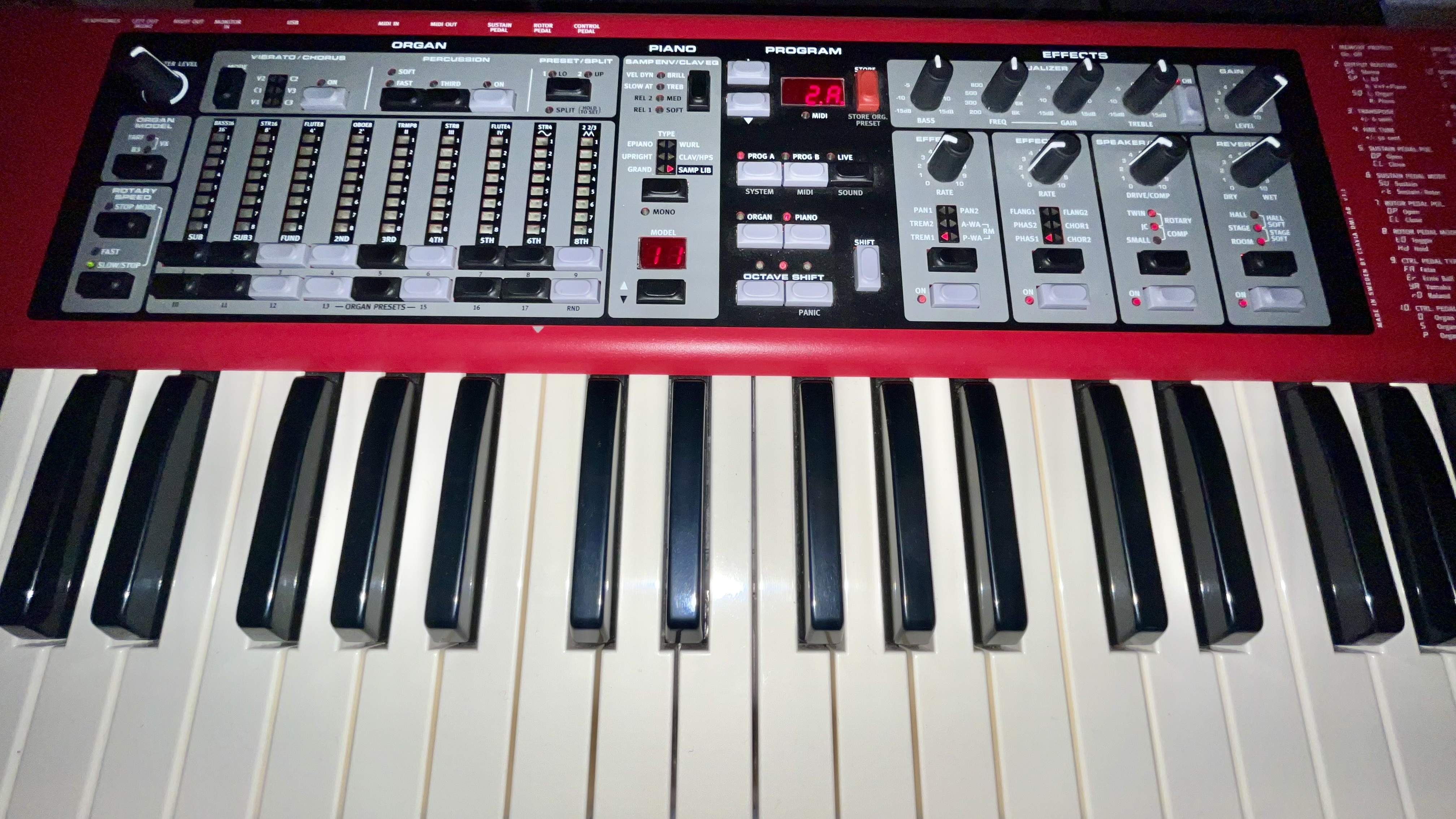

• The drawbars of Electro 3 are represented by up/down buttons and LED bar graphs instead of the ordinary mechanical drawbars. This gives you a big advantage: when you change programs, the correct drawbar settings are shown immediately by the LEDs
• 17 user configurable organ presets for each organ model
• Percussion with 2nd, 3rd, normal/soft, fast/slow for the B3 model
• User adjustable percussion levels, percussion decays and keyclick level
• Vibrato / Chorus Control with separate functionality for each model (the classic C1, C2, C3, V1, V2, V3 options for the B3, Vibrato for the Farfisa)
• 4 Tonewheel modes: select the level of "vintage" you wish to have in your B3 sound
• MIDI Split: The Nord Electro 3 is designed to support an extra MIDI keyboard when the Organ Split mode is activated. This makes it possible to use the Nord Electro 3 as a dual manual (Lower/Upper) organ with different drawbar settings for each manual

• Effect 1 - pan, tremolo, auto-wah, pedal-wah and ringmodulator
• Three selectable depths for the pan and tremolo, rate controlled with the Effect 1 Rate knob
• Control pedal assigned to pedah-wah and ring modulator depth
• Effect 2 - phaser, flanger and chorus
• Three selectable depths, rate controlled with the Effect 2 Rate knob
• Comp/Amp - three amp/speaker simulations, compressor and rotary speaker
• Drive/Compression amount controlled with the Drive knob
• Rotary speed controls - Slow, Fast and Stopped
• User adjustable rotary treble and bass rotor speeds and acceleration rates
• Reverb with five algorithms - Room, Stage Soft, Stage, Hall, Hall Soft
• Dry/Wet control
• Three band EQ, with sweepable mid. +/- 15 dB gain/attenuation

Nord Electro 3 HP specific features:

• Delay Effect - Rate, Amount, Tap-tempo and Stereo Ping Pong

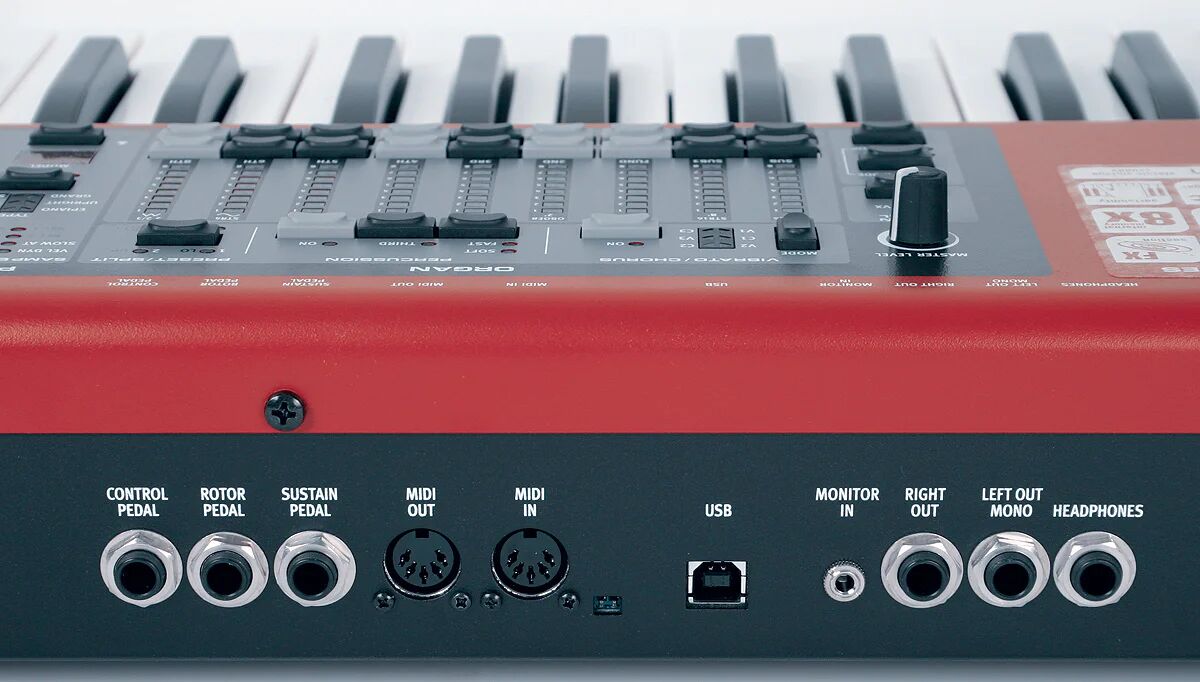

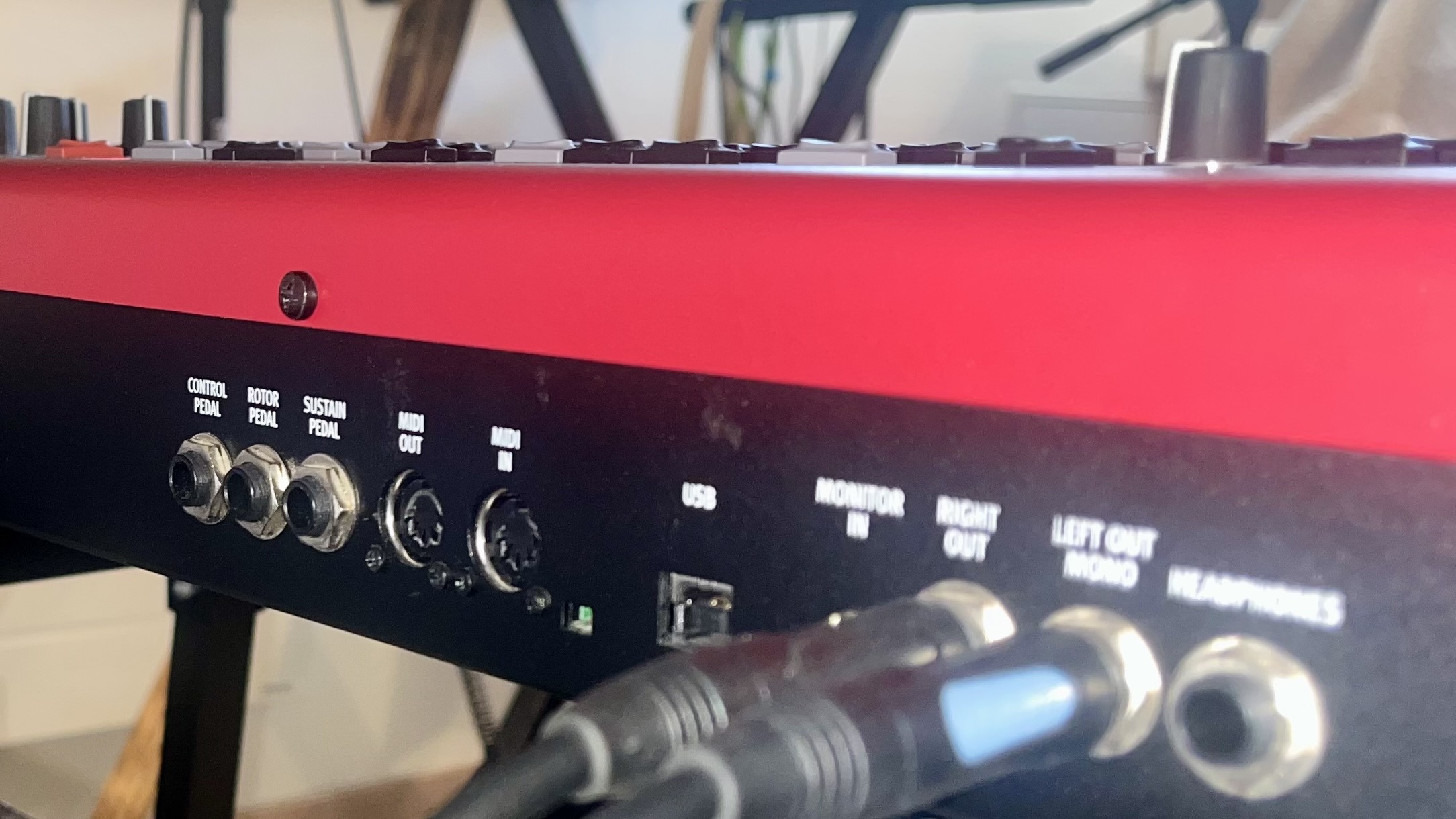

• 2 Audio outputs L & R - ¼", 6,35 mm jacks, unbalanced
• 1 Monitor input - 1/8", 3,5 mm stereo jack
• 1 Headphone output - ¼", 6,35 mm stereo jack
• 1 Control pedal input - ¼", 6,35 mm TRS stereo jack. Use a Control/Expression pedal like e.g. Yamaha FC-7, Roland EV-5 etc.
• 1 Sustain pedal input - ¼", 6,35 mm jack. Use a momentary pedal, like e.g, Roland DP-2, DP-6, Yamaha FC-4, FC-5, Fatar VFP1-25 etc.
• 1 Rotary Speaker speed switch pedal input - ¼", 6,35 mm jack. Use a momentary pedal or a switch type pedal
• MIDI In, MIDI Out - 5 pin DIN connectors
• USB - type B connector
• IEC320 C7 power connector

Nord Electro 3 HP specific features:

• Extended Control Pedal support Yamaha FC7, Roland EV-7, Roland EV-5, Korg EXP2 and Korg XVP10.

• User Manual
• Power cord
• Nord DVD-ROM

• Nord Electro 3 Sixtyone: 900 mm (35.4"), 100 mm (3.9"), 300 mm (11.8")
• Nord Electro 3 Seventythree: 1120 mm (44.1"), 100 mm (3.9"), 300 mm (11.8")
• Nord Electro 3 HP: 1078 mm (42.4"), 121 mm (4.8"), 344 mm (13.5")

• Nord Electro 3 Sixtyone: 7.65 kg (15.3 lbs)
• Nord Electro 3 Seventythree: 9.1 kg (18.2 lbs)
• Nord Electro 3 HP: 11 kg (24.25 lbs)
