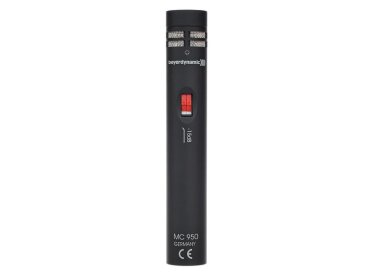

Beyerdynamic MC 950

Transducer type . . . . . . . . . . . . . . . . . . . True condenser

Operating principle . . . . . . . . . . . . . . . . . Pressure gradient

Frequency response . . . . . . . . . . . . . . . . 40 - 20,000 Hz

Polar pattern. . . . . . . . . . . . . . . . . . . . . . Supercardioid

Open circuit voltage at 1 kHz (0 dB = 1 V/Pa) . . . 35 mV/Pa = -29 dBV

Nominal impedance . . . . . . . . . . . . . . . . 180 Ω

Load impedance . . . . . . . . . . . . . . . . . . . 1000 Ω

Max. SPL at 1 kHz. . . . . . . 124 dB, with pre-attenuation. . . . . 139 dB

Signal-to-noise ratio rel. to 1 Pa . . . . . . . 72 dB

A-weighted equivalent SPL . . . . . . . . . . . 15 dB

Low-cut filter . . . . . . . . . . . . . . .  . . switchable, 6 dB/octave at 250 Hz

Power supply . . . . . . . . . . . . . . . . . . . . . 11 - 52 V

phantom power Current consumption . . . . . . . . . . . . . . . 4.6 mA

Connector . . . . . . . . . . . . . . . . . . . . . . . 3-pin XLR male

Dimensions: Length . . . . . . . . . . . . . . . 128 mm

Diameter . . . . . . . . . . . . . . . . . . . . . . . . 21 mm

Weight without cable . . . . . . . . . . . . . . . 115 g
