Fiche technique

Créée le 17/05/2017

Le Subsequent 37 CV est une réédition du Sub 37 Tribute Edition proposé en édition limitée à 2 000 exemplaires dans le monde. Il est sorti en 2017.

TYPE: Programmable Paraphonic Analog Synthesizer
SOUND ENGINE: 100% Analog
NUMBER OF KEYS: 37
TYPE OF KEYS: Semi-Weighted with After Pressure
CONTROLLERS: Pitch Bend, Mod Wheel, After Pressure, Velocity
POLYPHONY: Selectable Monophonic or Duophonic
SOUND SOURCES: 2 Variable Waveshape Oscillators, 1 Square Wave Sub Oscillator, 1 Analog Noise
Generator, 1 External Input/Filter Feedback
OSCILLATOR CALIBRATION RANGE: 22Hz-6.8kHz. Guaranteed note range at 8’ of Note 18 to 116
MOD SOURCES: Triangle, Square, Saw, Ramp, Sample & Hold, Filter EG/PGM
MOD DESTINATIONS: Osc 1 Pitch, Osc 2, Osc 1 & 2 Pitch, Filter, LFO Rate, VCA Level, Osc 1 Wave, Osc 2
Wave, Osc 1 & 2 Wave, Noise Level, EG Time, and Programmable Destinations
FILTER: 20Hz-20kHz Moog Ladder Filter w/ 6/12/18/24 dB/Oct Filter Slopes and MultiDrive
AUDIO INPUT: 1xTS
AUDIO OUTPUT: 1xTS, 1xTRS Headphone
PRESETS: 256 Presets - 16 Banks, 16 Patches per Bank

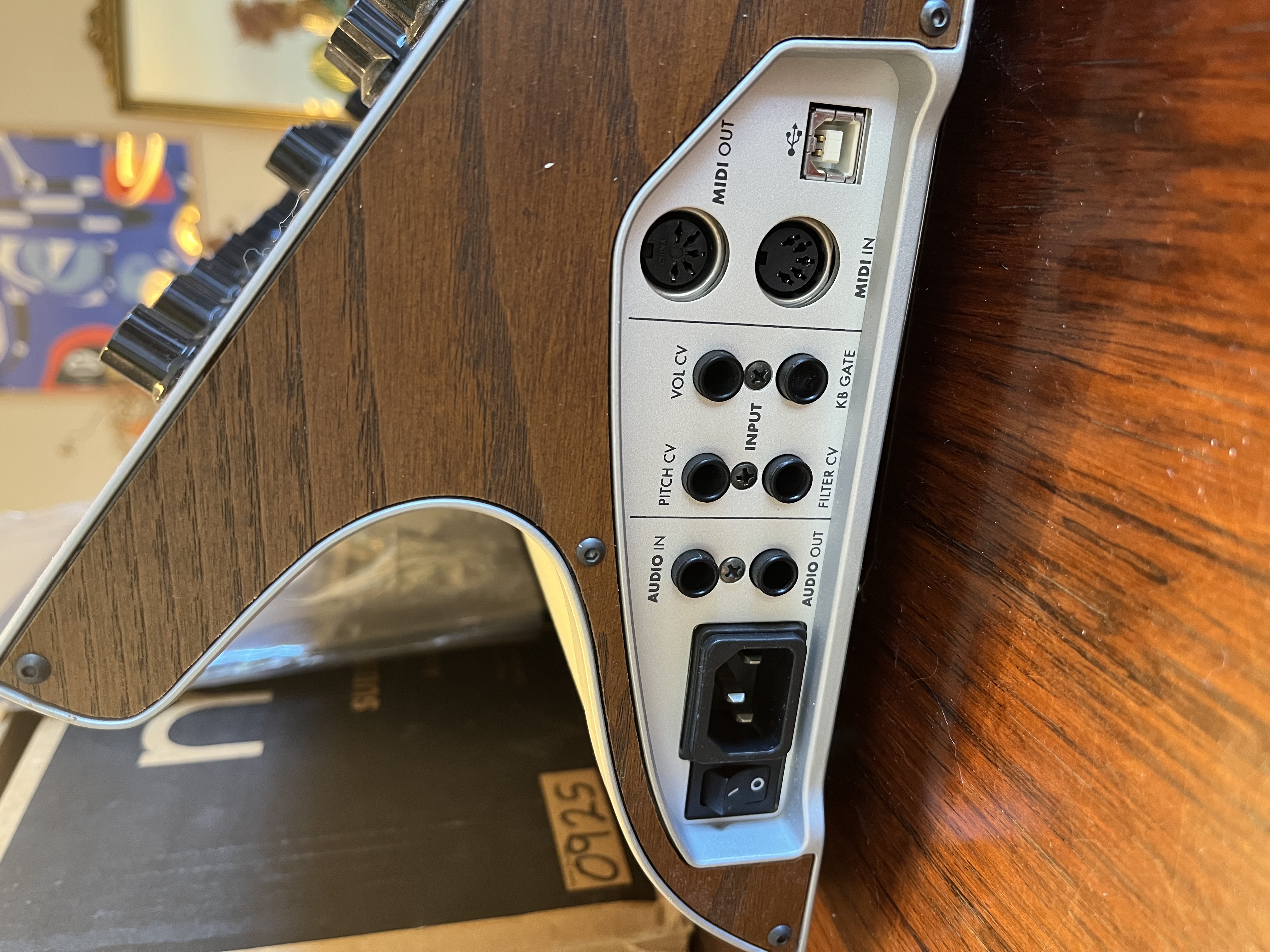

MIDI I/O: DIN In, Out, and MIDI over USB
CV/GATE INPUTS: Filter CV, Pitch CV, Volume CV, KB Gate
CV/GATE OUTPUTS: 4x Assignable CV and 2x Assignable Gate
TRANSPOSITION: +/- 2 Octaves
LFO: 0.01Hz - 1000Hz
WEIGHT: 22LBS / 10KG
DIMENSIONS: 6.75” H x 26.375” W x 14.75 D / 17cm H x 68cm W x 37.5cm D
NOMINAL OPERATING TEMPERATURE: 10 - 35 C (50 - 95 F)
OPERATIONAL TEMPERATURE RANGE: 10 - 50 C (50 - 122 F)
INPUT VOLTAGE: 100 VAC - 240 VAC / 50 - 60 HZ / 13W
