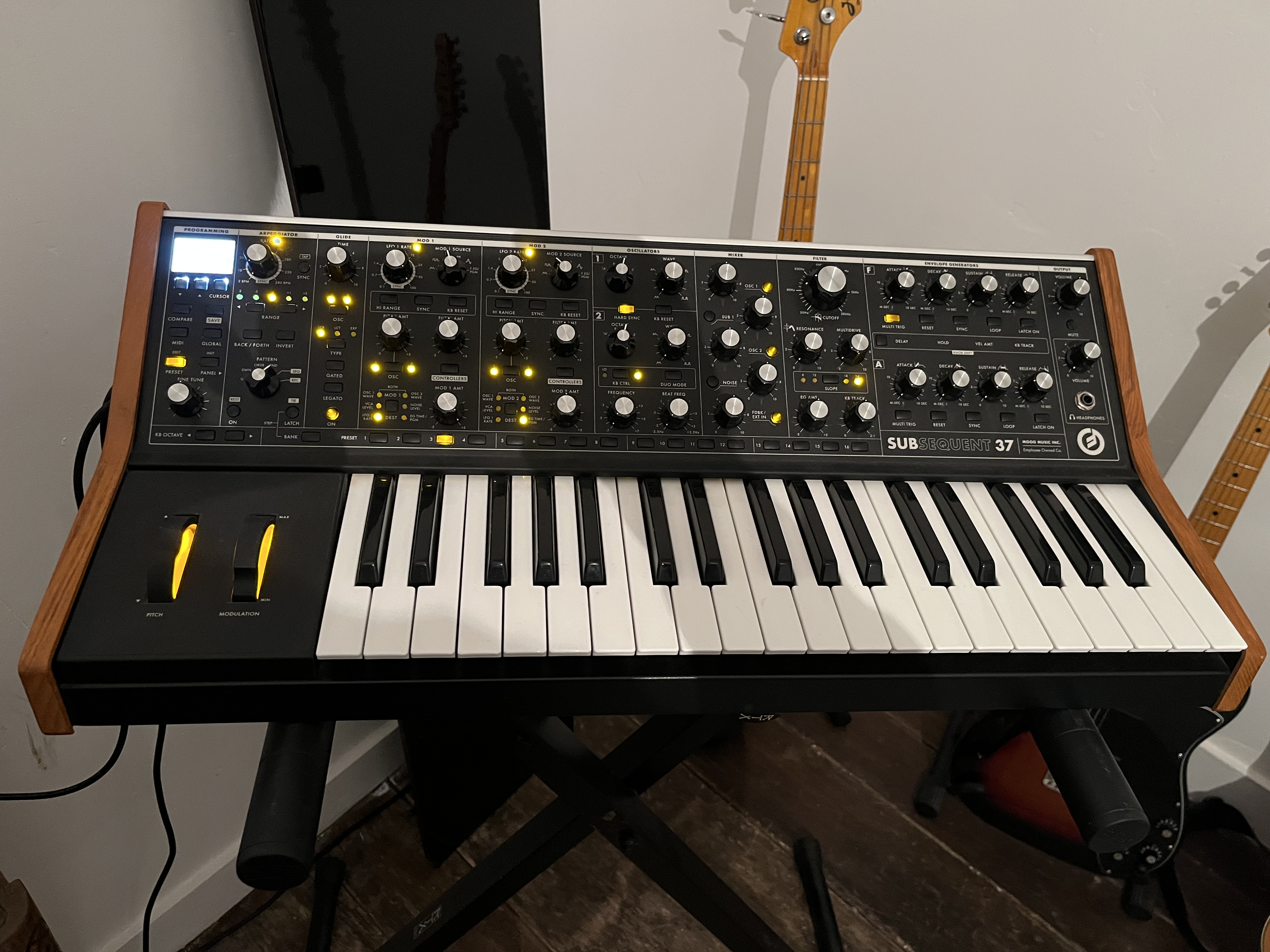

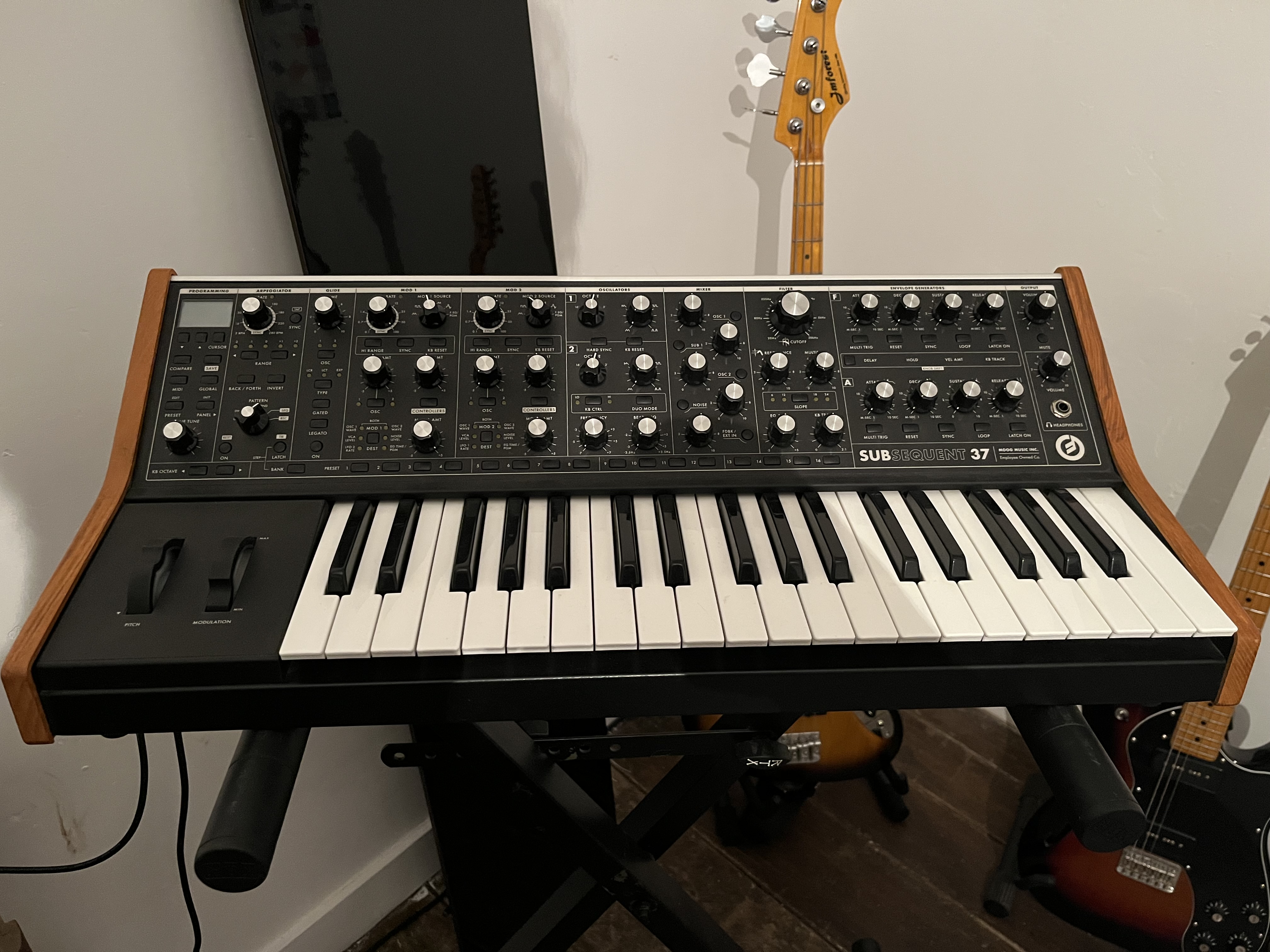

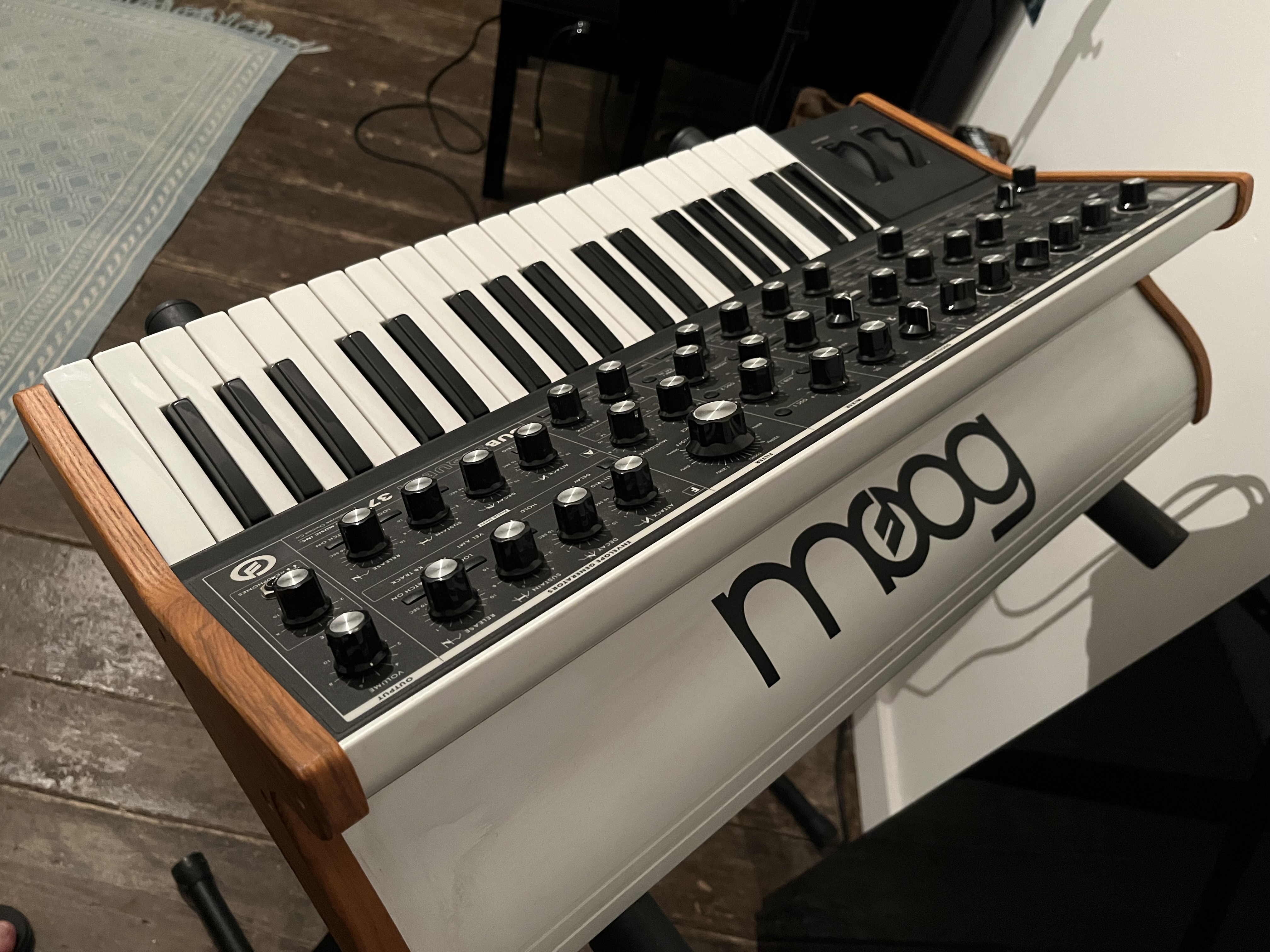

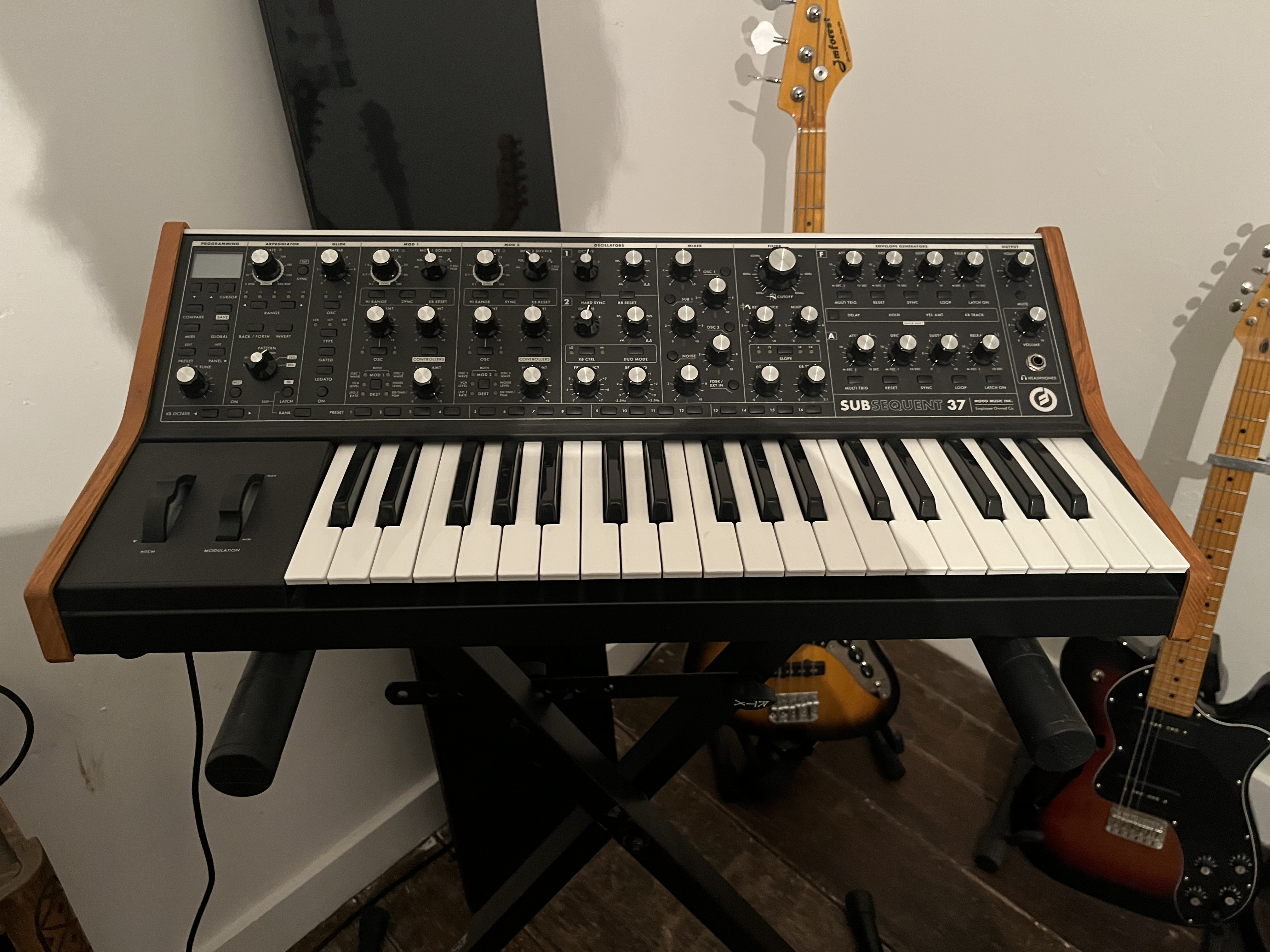

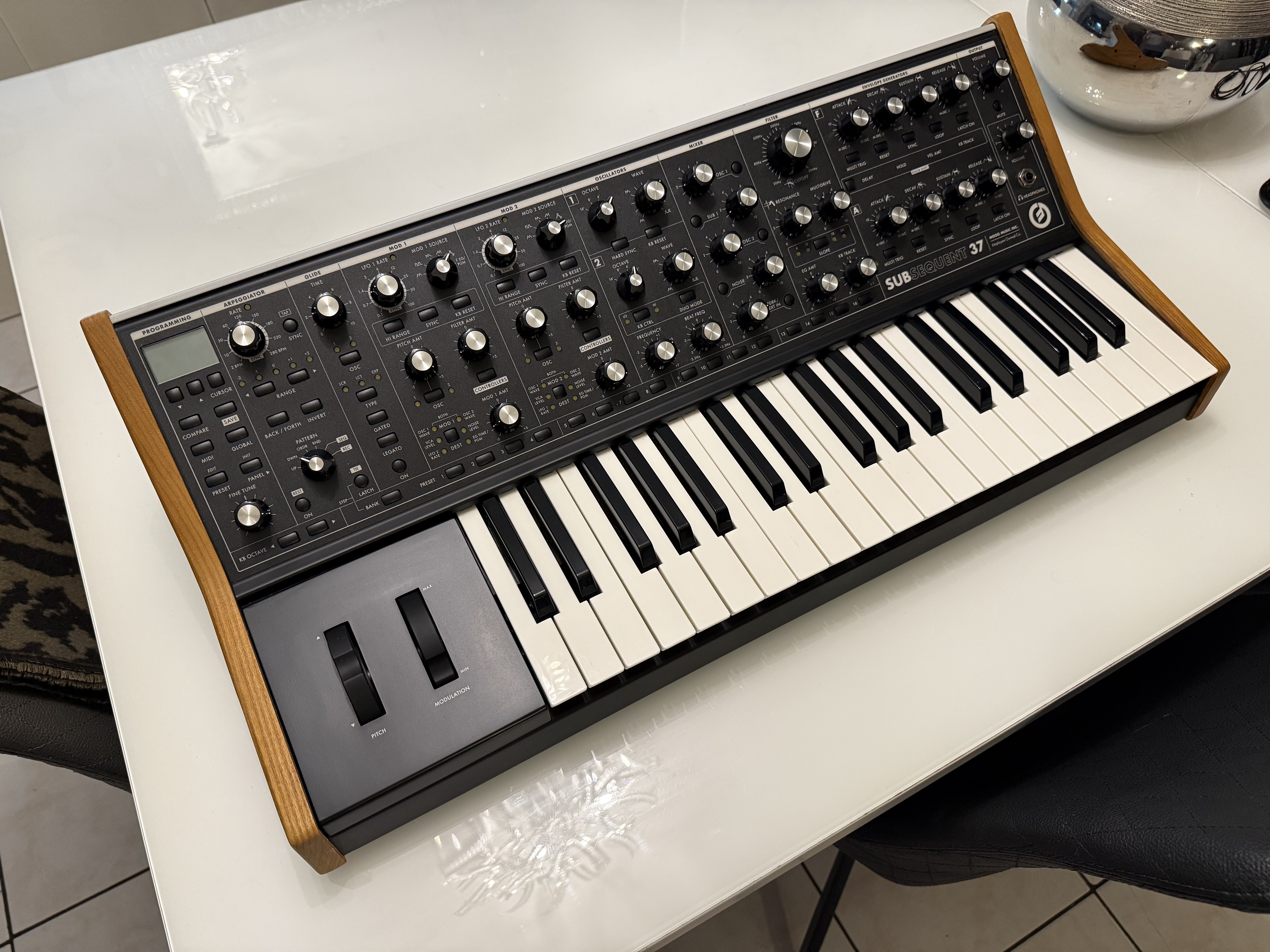

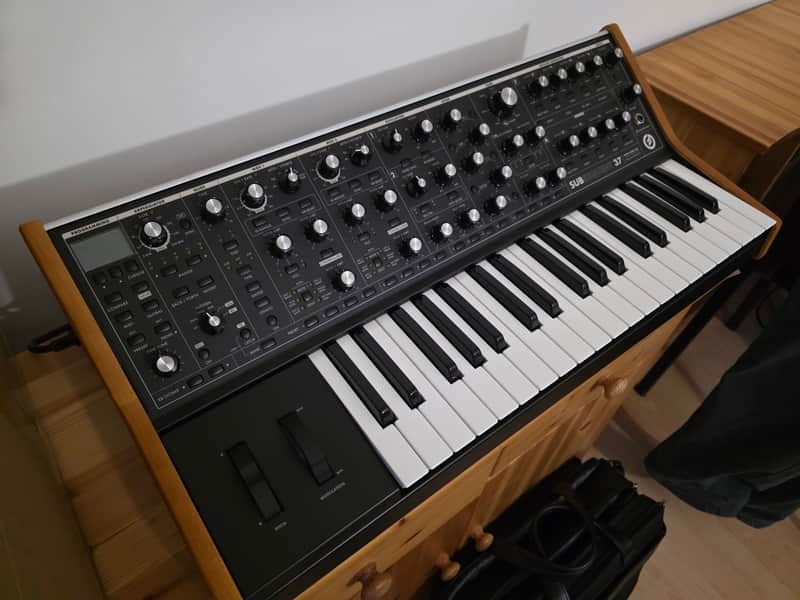

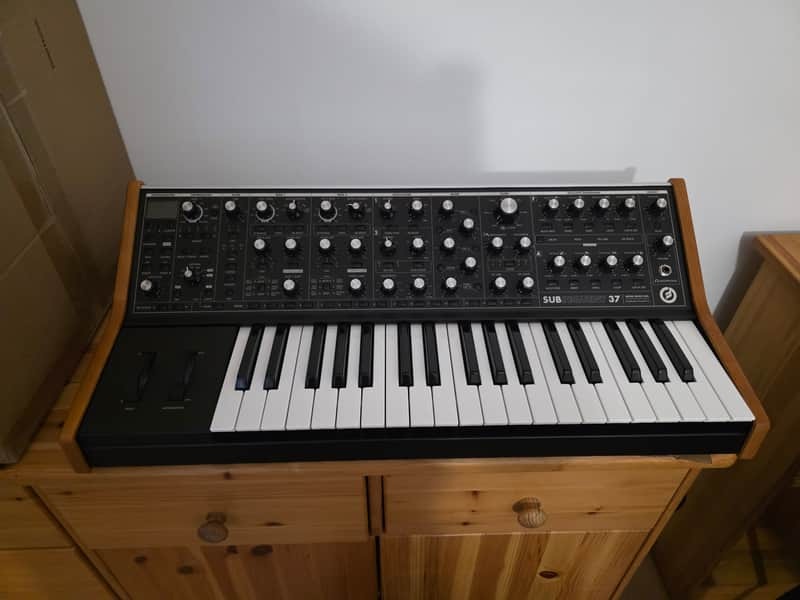

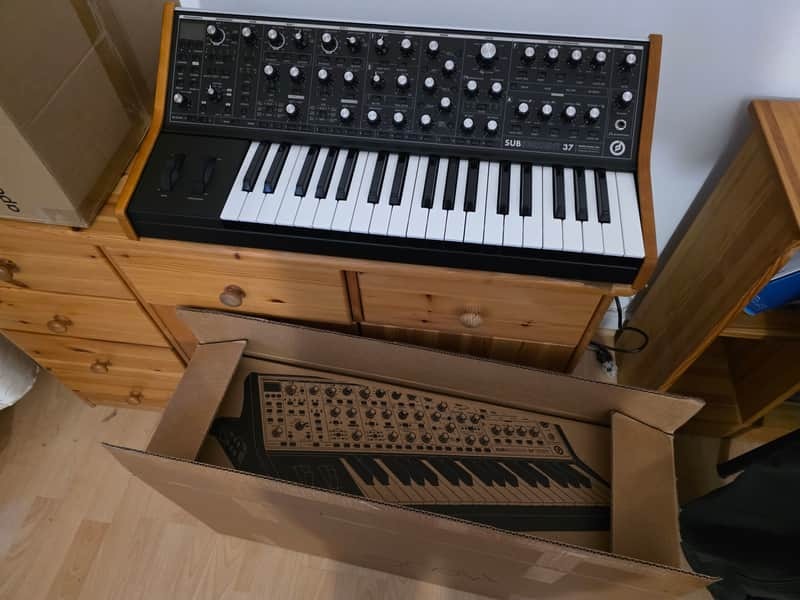

Moog Music Subsequent 37

• Fabricant : Moog Music
• Modèle : Subsequent 37
• Catégorie : Claviers synthétiseurs analogiques

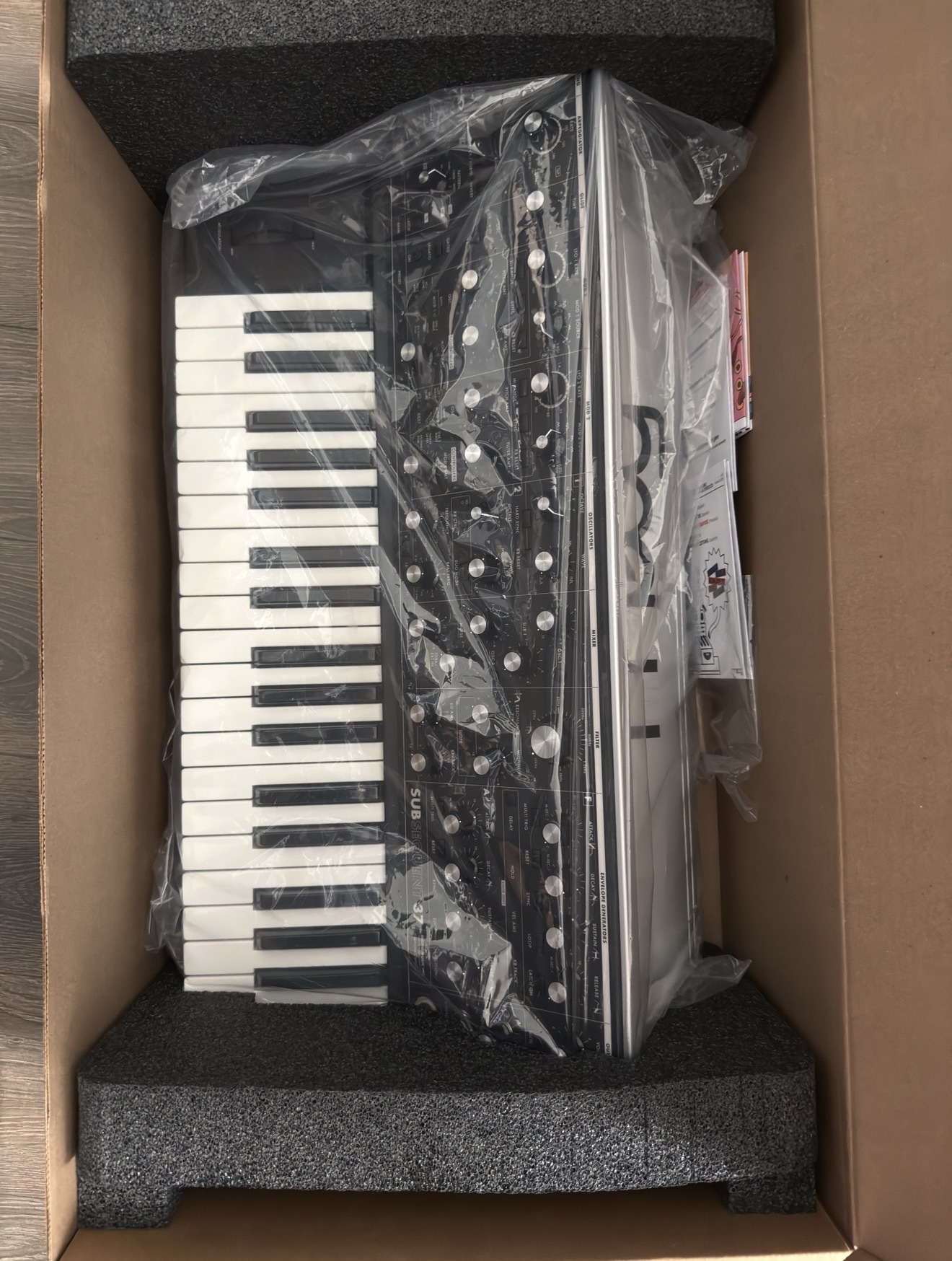

• Poids du colis : 12 kg
• Fiche créée le : 30/08/2017

Moog a d'abord réédité le Sub 37 Tribute Edition sous le nom de Subsequent 37 CV en édition limitée au printemps 2017. En août 2017, ils ont annoncé la sortie d'une version non limitée sous le nom de Subsequent 37. La différence est l'absence du cadre en métal et des sorties de tension de contrôle.

GENERAL

• SOUND ENGINE: Analog
• POLYPHONY: Selectable Monophonic or Paraphonic (Poly-chainable)
• KEYBED: 37 Note Semi-weighted with After Pressure
• LCD: 128 X 64 pixel LCD with White Backlight
• EXTERNAL AUDIO INPUT: ¼” TS
• AUDIO OUTPUT: ¼” TS, ¼” TRS Headphones
• PRESETS: 256 Presets - 16 Banks x 16 presets
• MIDI I/O: DIN In/Out, and MIDI over USB
• CV/GATE INPUTS: Filter CV, Pitch CV, Volume CV, KB Gate
• POWER: 110VAC-240VAC Universal Power Supply with IEC connector
• WEIGHT: 22lbs
• DIMENSIONS: 6.75H x 26.75”W x 14.75"

CONTROLS

• CONTROLLERS: Pitch Bend, Mod Wheel, After Pressure, Velocity
• SOUND SOURCES: 2 Variable Waveshape Oscillators, 1 Square Wave Sub Oscillator, 1
• Analog Noise Generator, 1 External Input/Filter Feedback
• OSCILLATOR CALIBRATION RANGE: 22Hz-6.8KHz. Note range at 8’ = 18 - 116
• GLIDE MODULE: Assign to Osc1/Osc2/Both. Type - LCR, LCT, EXP, Gated, Legato
• FILTER: 20Hz-20KHz Moog Ladder Filter w/ 6/12/18/24 dB/Oct Filter Slopes and MultiDrive
• TRANSPOSITION: +/- 2 Octaves

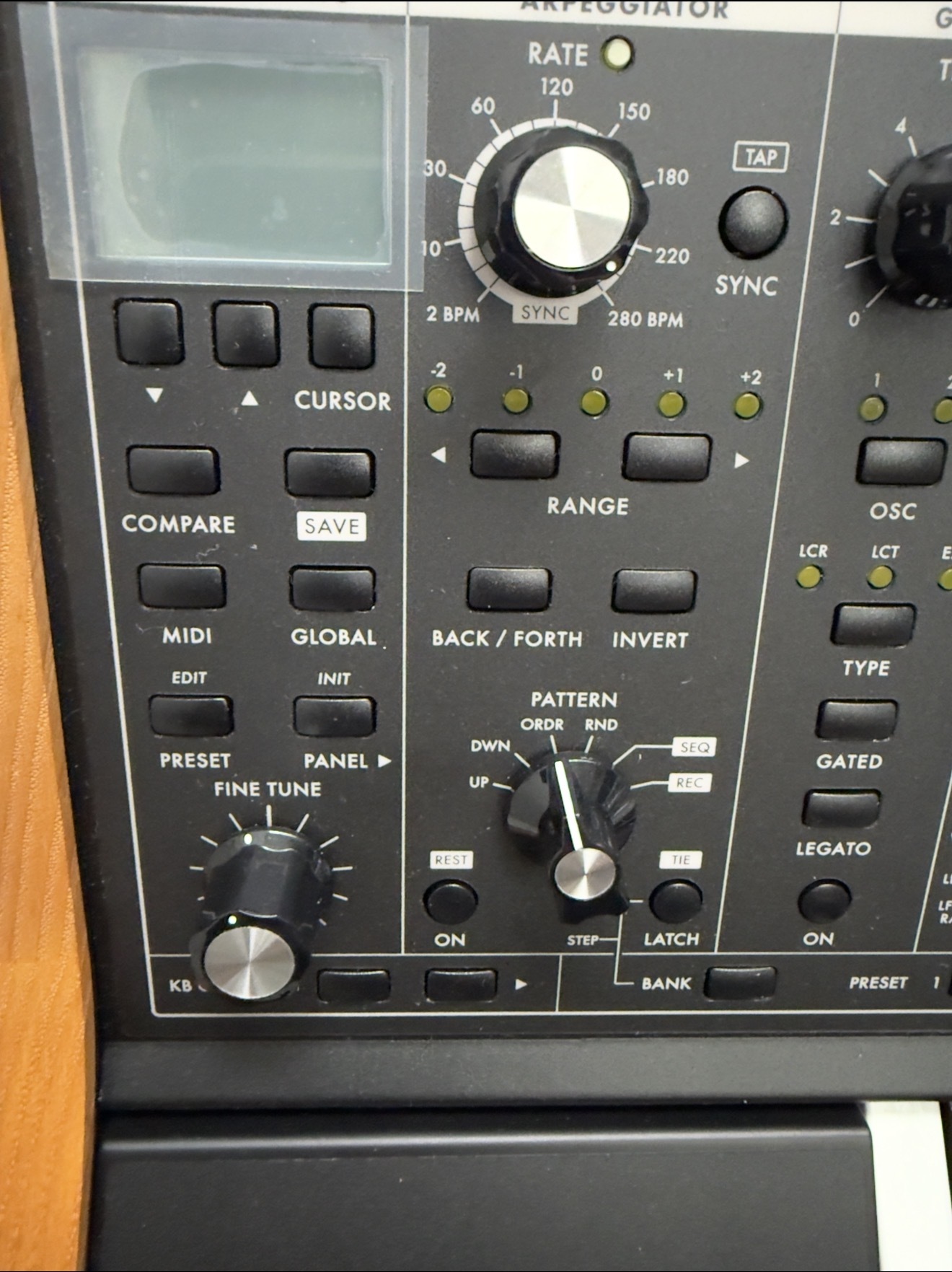

• ARPEGGIATOR/SEQUENCER: Up, Down, Order, Random, Latching, Back/Forth, Invert, +/-2
• Range, Tie, Rest, MIDI Sync, 64-note sequencer
• MODULATION SOURCES: LFO (Triangle, Square, Saw, Ramp, Sample & Hold), Filter
• EG/PGM - Amp Env, Constant ON, Sine LFO, Noise LFO, Osc 1 Pitch, Osc 2 Pitch, Seq Note, Seq Vel, and Seq Mod.
• MODULATION DESTINATIONS: Osc 1 Pitch, Osc 2, Osc 1 & 2 Pitch, Filter, LFO Rate, VCA Level, Osc 1 Wave, Osc 2 Wave, Osc 1 & 2 Wave, Noise Level, EG Time/PGM - Filter Resonance, Filter Drive, Filter Slope, Filter Env Amount, Filter Keyboard Amount, Osc 1 Level, Sub Osc Level, Osc 2 Level, External In/Feedback Level, Osc 1 On, Sub Osc On, Osc 2 On, Noise On, External In/Feedback On, Arp Rate, Arp Clock Division, Arp Range, Arp Back/Forth, Arp Ends, Arp Invert, Arp Gate Length, Arp Run, Glide Time, Glide OSC Choice, Glide Type, Glide Gate, Glide Legato, Glide On, LFO 1 Clock Division, LFO 1 Range, LFO 1 Sync, LFO 1 Keyboard Reset, LFO 1 Keyboard Track, Mod 1 Pitch Amount, Mod 1 Filter Amount, Mod 1 Programmable Amount, Mod 1 Programmable Destination, LFO 2 Clock Division, LFO 2 Range, LFO 2 Sync, LFO 2 Keyboard Reset, LFO 2 Keyboard Track, Mod 2 Pitch Amount, Mod 2 Filter Amount, Mod 2 Programmable Amount, Mod 2 Programmable Destination, Osc 1 Oct, Osc 2 Sync, Osc 2 Keyboard Reset, Osc 2 Oct, Osc 2 Keyboard Control, Osc 2 DUO Mode, Osc 2 Freq, Osc 2 Beat Freq, Filter Env Attack, Filter Env Decay, Filter Env Sus, Filter Env Release, Filter Env Delay, Filter Env Hold, Filter Env Vel Amount, Filter Keyboard Track, Filter Env Multitriggering, Filter Env Reset, Filter Env Sync, Filter Env Loop, Filter Env Latch, Amp Env Attack, Amp Env Decay, Amp Env Sus, Amp Env Release, Amp Env Delay, Amp Env Hold, Amp Env Vel Amount, Amp Keyboard Track, Amp Env Multitriggering, Amp Env Reset, Amp Env Sync, Amp Env Loop, Amp Env Latch, Output Volume, Bend Up, and Bend Down.
• LFO PANEL FEATURES: Hi/Low Range from .01Hz–1kHz, MIDI Sync, KB Reset

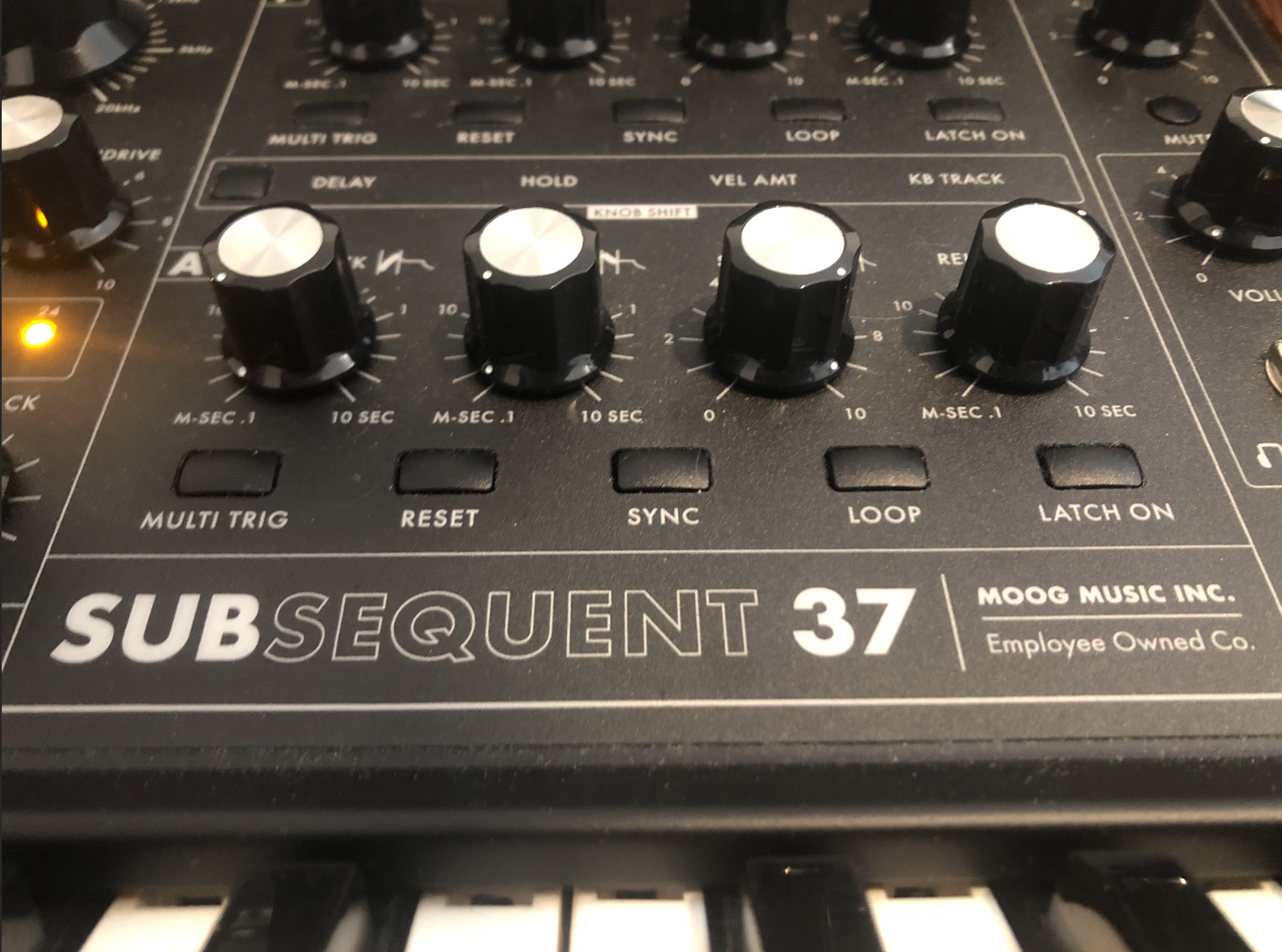

• ENVELOPES: DAHDSR Envelopes with Multi-Trigger, Reset, Looping, MIDI Sync, Latch, and Variable control of EG Delay, Hold, Velocity Amount, KB Tracking.
