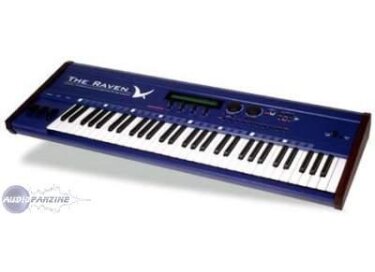

Raven, Clavier synthétiseur numérique de la marque Quasimidi.

5 avis d'utilisateurs
Occasion à partir de 9 € Argus occasion : 216 €Attention, cote argus calculée sur un petit nombre d'annoncesEn savoir plus…

Fiche technique Quasimidi Raven

  • Fabricant : Quasimidi
  • Modèle : Raven
  • Catégorie : Claviers synthétiseurs numériques
  • Fiche créée le : 08/04/2004
Commercialisation :
  • A partir de 1995.
Caractéristiques :
  • Clavier : 61 touches, vélocité, ATM.
  • Type de Synthèse : MASS (multi algorithmes) (16 modes de synthèse).
  • Formes d'Ondes : 64 Mo.
  • Polyphonie : 24 voix.
  • Multitimbralité : 16 voix.
  • Nombre de Générateurs : 12.
  • LFO : 1.
  • Enveloppes : 1 ADSR.
  • Filtres : 1 PB résonant.
  • Sons : 512.
  • Combis : 200 presets et 50 prog.
  • Split : Statique ou dynamique.
  • Affichage : LCD (2 x 40 caractères).
  • Effets : 2 multi-effets (un pour les réverbs, un pour les modulations [phasing, retard, distortion, panoramique, flanger, etc]), mis en série ou en parallèle.
  • Sorties Audio : Stéréo.
  • Stockage Externe: Cassette.
  • Séquenceur : 8 pistes [grosse caisse, caisse claire, charley, percussions, basse, séquence 1, séquence 2 et accords], 400 patterns presets et 100 prog.), 10 morceaux de 10 patterns max, temps réel.
Autres Caractéristiques :
  • Molettes de pitch bend et de modulation + une autre molette.
  • Le clavier permet de commander très facilement un mute, un "dé-mute" ou une transposition de chaque piste.
  • Arpégiateur, Gater (découpe séquentielle du volume des notes) et Chord rhythmizer (déclenchement des accords suivant le rythme).
  • 24 kits de batterie.
  • 4 potentiomètre rotatifs de contrôle.
  • Layers.
  • Le séquenceur fait office d'arrangeur.
Remarques :
  • Cette belle worstation analogique bleue, extension de l'expandeur Technox (6.500 F), est destinée aux fans de sons techno/dance ainsi qu'aux amoureux des sons des synthés Vintage.
  • Jean-Michel Jarre a inclus ce "Virtual Interactive Synthesizer" dans sa grande collection de claviers.
  • La version Raven-Max inclut la carte Max en série (Monte la mémoire à 112 Mo, 1000 nouveaux sons [percussions, synthés vintages, etc], un nouvel algorithme pour rendre le sons plus "dur" et de nouvelles fonctions pour le séquenceur).

Source : Quasimidi


Acheter d'occasion Quasimidi Raven

Quasimidi Raven Vends CD de démo du Raven 1995 9 € »

Avis utilisateurs Quasimidi Raven

Note moyenne :3.6( 3.6/5 sur 5 avis )
 1 avis20 %
 3 avis60 %
 1 avis20 %

L'avis de mayaxxx

Quasimidi Raven
Really cool for techno players. Dancefloors will be trembling for sure. Weak sound adjusting. Could be more tracks and polyphony. Actually for techno music I use E-Synth. I've bought The Raven just for fun, but you'll save on money.

Comments About the Sounds:
JUST try it !!!!!!! If you're really a techno musiciant , once you try - You will never SLEEP !!!!!!!!!!!!!! ONLY SWEEP AT YOUR RAVEN !!!!!!!!!!!! REALLY COOL STUFF. Cool Drums, cool mostly usable TECHNO Hi-HAT (like Boom_TCH Boom_TCH Boom_TCH,) Basses (very close to MOOG's).


I am happy to report the following points: 1. It is built like a tank. 2. It looks really cool. 3. It is 16 note multitimbral, and you can assign a patch for each of 16 channels while it is in "sequencer" mode so you can use it from another sequencer. 4. It is a full blown 8 track pattern sequencer that can send midi out on channels 1 through 8. 5. It has a great arpeggiator, gater, and chord repeater that will transmit out over midi! 6. A sequence has ten patterns. Each of the ten patters has eight parts. The lenght of the parts are at least 4 bars, if not eight in length. While you have about 3200 built in phrases that all can be assigned to each of the parts for zillions of combinations, you can also write your own phrases (they call them motifs). I call them phrases because the resemple the rps phrases in Roland's MC-505 and JP8080. Also much like the phrases built into the Yamaha sequencers, QY70, 100 and 700. So you can mix and match from the tons of phrases/motifs available or rely on your own homegrown ones (or both). You can either dial them in, or just hit a button and a motif will randomly fall into the part you chose. If you don't like it, hit the button again. Cool. Of course for each part loaded with a motif, you can go in a change the actual sound (patch) that that part is playing (or if you are using an external synth, you can change it there (but the Raven will send program change messages if you want). 6.5. So now you have a seqencer with 10 patterns full of 8 parts each, all sussed out with your chosen sounds, with each part sending a particular amount to the 2 FX units on board (pretty good, flanges, ping pong delays, phasers, chorus, and REVERB!). At this point you can either play the patterns live or sequence them (an a bunch of permutaions) into a song. In order to understand the permutations, I will explain what you can do live. The thing has a tap tempo button btw. Anyway, while you are playing a pattern, you can use the seven lower keys on the keyboard to mute parts, ie, kick, snare, hh, bass, seq1, seq2, chords, perc. This resembles very much the superbeats mode on the new E-mu xtremle lead and similar units. Better than those though, since the Raven allows you to make your own motifs, you can roll your own. Now the next octave up the keybaord will allow you to transpose the non-percussive parts. So you can build melodic changes. Also, while the groove is playing you can go into the patterns themselves, play with pan, filter, patch, and even motif, without dropping a beat. So now you see all the things you can do live. Oh yeah one other thing, you have a solo part, which is not a motif, but is just a patch which you can play on the rest of the keyboard. ON this patch you can apply the fancy arpeggiator on and off on the fly. Now you can record all this for a song. I am not yet whether you can let it fly and hit record. Maybe, But I do know that you can consruct as many permutaions of the 10 patterns and their 8 parts, muted and un-muted, transposed, etc, and plug them into 99 slots that make up a song. Each slot need not be the same length in time, it is just a step. I.e., one step could be pattern 3 with 7 of 8 parts going, transposed to G# and rolling like that for 32 bars. All in all a very cool pattern sequencer that is geared for live jamming. It recieves and send midi clock and could be a very cabable partner for another sequencer such as the MC505 or a Notron, etc. One could preview the other in earphones and then seamlessly mix over the sequences. NICE! Finally instead of step writing your song using the patters and permutations with fills etc, you can press a button and the Raven will make on up for you! That's right a whole song from your stuff! Hit the button again, new remix, ad infinitum. USEFUL? Who cares its FUN! 7. The sounds are really good! People have complained about the filters being weak. Well they are, but unlike some reports they DO self oscillate if coax and if using the right patch. In performance mode you can layer up to 4 patches, setting pan, efx send, volume for each. You can split the keyboard at middle C and have up to 3 on one side or two on each. There is a unisono mode that layers and detunes each in mono mode. Each layer can be in poly, mono, lead (like minimoog mono) or unisono. One or all (or half in case of split keys) layer can utilize the very excellent arpegiator (called the Motivator, because it does so much more). 8. The manual claims that the synth utilizes subtractive synthesis (rompler for sure) and FM (okay so does everybody) AND Additive SYnthesis! Well, that is a little wild isn't it. 9. The problem is is that you have no idea for which sounds, which is being used. This is due to the fact that the tweakability of the synth portion is minimal. All the parameters are relative plus and minus offsets from whatever the patch really has (which you can't see). You can tweak, filter freq. and resonance, but not filter env. amount. You can tweak A.D.and R, but it is either just offsetting the AMP envelope or all, I can't tell, You can tweak the lfo and amount and delay and speed. There is a limited matrix that allows you to use the 3 wheels and aftertouch as the sources and with the filter, lfo, volume, pitch, fx levels, and two Motivator parameters (cool) as sources. That's it. 10. It stinks that you can't really get under the hood to see what's going on with each patch and tweak the important things. There is a filter envelope, I can hear it in many patches, but I can't do much to change it. The claim that additive synthesis and fm is going on seems supported by the reported (and actual) fact that tweaking the filter in patches utilizing those forms of synthesis has no effect. This may lead to many thinking the filters suck. Also, even in patches that are subtractive, if the certain immutable parameters are set a certain way, you cannot get the filters to sound like much. But in some patches it screams (more like whistles :( ). I looked in SOunddiver but I still can't get under the hood. In conclusion: You have a tank of a keyboard with excellent action (fatar top of line keys like on K5000S and Roland A70, Emu sampling keyboards, etc.), you have Very good sounds (tons of great basses and drums and lots of full ambient moving sounds) despite that fact that you are short changed on the synthesis aspects. And you have 16 channel sound module, and live performance oriented 8 track pattern sequencer that allows you to roll your own sequences and make them act like superbeats on the E-mu line. The fact that there are 3200 phrases/motifs is great because they are so mix and matchable that you could come up with millions of combinations and never find one that was the same, and with using your own chosen sounds, it is unlikely that you will do what anyone else does. These layered in with your own motifs, make for setting up some sequences that would set you up for a nice live show with some other support in the form of musicians or another sequencer or a dj. Tap tempo button! The fun auto song buider is very nice too. If you get sick of the sounds (the drums are usable for ever)you can use external sound modules and still rock with live sequencing keyboard. I intent to give my Xtreme lead a spin on it. I traded my microwave XT for this and I feel very good about it. For what it is, for what it cost (now, ( I guess I could have got $850 tops for the XT) as opposed to then, when at nearly 2 grand plus 300 for the MAX it was too high) I have to give it top marks. Ravi


I've had the Raven-max for about 13 years now and I have to say this is one of my favorite synths.. Sure, the filters do suck, and the comment about the drums sounding limp, your fuc-ing crazy. They are some of the best I've heard!

If you make any type of electronic music, add this board to your collection. you will not be disappointed..
Solidly built like the best of the best analog synths from back , with an excellent semi-weighted synth action and nimble, extra long keys. The construction of the Raven should be the standard for any modern professional synthesizer.


the real beauty of the Raven is only realized when you play with it. The interface is best described as natural and intuitive, almost so you can play it in the dark, with your ear as the guide. I find it refreshing and fun to play something deep that isnt full of programming and menus for a change. This baby feels organic, and interactive, almost like its alive and actually jamming with you!! :-) Awesome!

L'avis de deepsea

Quasimidi Raven
Pour les caractéristiques, elles ont déja été détaillées ... je vais éviter de faire doublon !

Ceci étant, ce synthé dit "workstation" n'a que 2 sorties mono ... d'ou la note ...


Il faut savoir s'habituer a son architecture, car c'est un clavier de conception assez originale. Une lecture du mode d'emploi n'est pas superflue mais la prise en main se fait très vite.
Pour l'edition des sons, il n'y pas vraiment de paramêtre a éditer, cette machine n'est pas trop orientée sur la création sonore, ceci étant, la combinaison des son est exceptionnelle!!! il est facile de combiner un lead avec une basse et une nappes pour obtenir un son qui tiens la route! donc une grande cohérence sonore


Je recherchais un sons de nappes bien présent, et ce fut le cas !
le reste des sons est naturellement excellent aussi, voir certain preset très expressif
...bien heureusement dirai-je, car sinon ce synthé n'aurai pas d'interet.

Il faut qd même préciser que cette machine est orientée techno, exclusivement, donc juste un son de piano, qqe orgues, pourront dépaner.

coté effet, il suffisent, car s'adapte bien (de facon général) aux sonorité ... mais il ne faut pas leur en demander trop.

une note de 10, pour ses sonorités totalement assumées !


Je l'utilise depuis 6 mois et j'avoue adorer ce synthé. Ces sons sont vraiment terribles, et d'une grande cohérence. pour le reste son sequenceur fait un peu gadget, a mis chemin entre une groovebox et un clavier arregneur.
A comparer a mes autres synthés : un wave station, Novation A-station, un Roland D70,un korg 05, et divers analogiques, je pense que c'est celui que j'utilise le + !

L'avis de jooo37

Quasimidi Raven
Voire les caractéristiques déjà postées par les autres utilisateurs...
Le Raven possède les attributs qu'il lui faut. Ni plus, ni moins.


Il est un peu compliqué. Il faut prendre l'habitude et la logique Quasimidi, ensuite l'édition est largement suffisamment étoffée pour faire sonner le Raven à bien plaire.
Le manuel est "moyen" mais de toutes façons, on s'en fiche pas mal du manuel...


Les sons sont bons, bien conçus pour le secteur auquel se destine ce synthé. Il y en a beaucoup.
Je reprendrai qques remarques des autres "avis" : l'aftertouch est "dur" - c'est presque un orgue ;-) et il y a du souffle généré pas certains effets. Ce souffle n'est pas perceptible dans un mix mais lorsqu'on joue avec ce clavier seul, ben... ça dérange un peu quoi. Faut pas être puriste de chez puriste et vouloir entendre le son des vagues derrière les violons, ce synthé est puissant, il a été créé pour "dégager les tuyaux", les leads transpercent tout et les basses "analogiques" font trembler les murs. Alors le petit souffle là derrière...


J'ai ce synthé depuis 5 ans environ. J'avais revendu mon premier exemplaire mais, 1 année après, sans lui, il me manquait tellement que, quand l'occasion s'est présentée, j'en ai racheté un...
Pis j'adore son look ;-)

L'avis de dano

Quasimidi Raven
Synthé typé electro
5 octaves
avec 2 modutation,aftertouch,sustain
midi in out et thru pedales de sustain,sortie stereo


La configuration n'est pas aisement facile(faus dire que je n'ai pas le manuel non plus)
mais bon pour qui s'y connait assez en clavier/midi cela ne pose aucun probleme pour la programmation de ce synthé


Les sonorités du RAVEN sont exellentes pour (les nappes,les basses,les leads)
moi qui suis un grand fan d'electro (jarre,vangelis,kraftwerk,ect ect)je retrouve dans ce synthé les sons rechercher
Evidememrnt ne cherchez pas dans ce clavier des sons realistes il n'as pas ete cree pour ça (genre:sax,drums(plutot orienté electro),violon,ect ect...
l'expression et bonne mais voir sur certains sons exellente( lead :Klaus)


Je possede se clavier depuis 3 mois
j'aime particulieremeent les sons des nappes et quelques lead
je possede d'autre machine (voir mon profile) et j'insere facilement mon Raven Max ne serait ce que pour doublé mes nappes ,ou basses
j'ai payé le mien dans les 400 euros (je sais que certain diront que c'est trop chere,mais moi personnelement je pense que ça en vaut le coup
