C15, Clavier synthétiseur numérique de la marque Nonlinear Labs.

Avis
Comparateur de prix
Petites annonces

Fiche technique Nonlinear Labs C15

  • Fabricant : Nonlinear Labs
  • Modèle : C15
  • Catégorie : Claviers synthétiseurs numériques
  • Fiche créée le : 18/02/2014

Synthétiseur numérique polyphonique basé sur des algorithmes mathématiques basiques

the signals are generated, modulated, shaped, and filtered in realtime. Therefore the sound can be dramatically influenced by the dynamic playing of a musician.

  • 2 Oscillators (sine wave, phase modulation, frequency randomization)
  • 2 Shapers (sine curve, adjustable foldback and asymmetry)
  • Ring Modulator
  • Comb Filter (tunable, with allpass and lowpass)
  • State Variable Filter (multi-mode, 2-4 poles, FM)
  • Feedback Mixer (4 input signals, shaper for the sum)
  • Feedback bus with 4 destinations
  • Output Mixer (stereo, 4 input signals, shaper for the sum)
  • 5 Stereo Effects: Cabinet (amp simulation), 8-pole Gap/Band Filter, Flanger/Chorus, Echo, Reverb
  • 3 ADBDSR Envelopes, adjustable attack curve
  • Velocity sensitivities for envelope levels, attack times, and release times
  • 4 Macro Controls, assignable to up to 86 target parameters
  • 8 Hardware Sources, mappable to the 4 Macro Controls
  • Number of parameters: 305
  • Resolution of the parameters: typically 1000 steps (250 ... 15000 steps)
  • Resolution of key velocity, ribbons, lever, aftertouch, pedals: 4000 steps
  • 12-voice polyphony, variable Unison settings
Play Interface
  • 61-key (5 octave) Fatar keybed with semi-weighted long-arm keys
  • Note-on and note-off velocity sensitivity
  • Monophonic aftertouch
  • Two 800 mm touch strips (ribbons), each with 33 LED dots
  • Ribbon modes: absolute, relative, combinable with return-to-center
  • Lever (magnetic force loaded) for pitchbending and similar applications
  • Control panel with an OLED display (128 x 32 dots) and four buttons
  • Output volume potentiometer (at the front)
  • Headphone level potentiometer (at the front)
Parameter Editing
  • 4 Selection panels, each with 24 buttons and LEDs
  • Labeling by exchangeable magnetic overlays
  • Edit panel with an OLED display (256 x 64 dots), an incremental encoder, and 18 buttons
  • The ribbons are also assignable for editing of parameters.
  • Graphical user interface on any WiFi-enabled device running a browser, unique zoom-and-pan navigation, enabled for touch
Preset System
  • User-definable banks
  • Unlimited number of presets per bank
  • Infos and tags per preset
  • Morphing between the edit buffer and a preset, between 2 presets, or a series of presets
Undo System
  • Unlimited undo for all user interactions, including sound editing steps
  • Undo list with support for different editing branches (tree view)

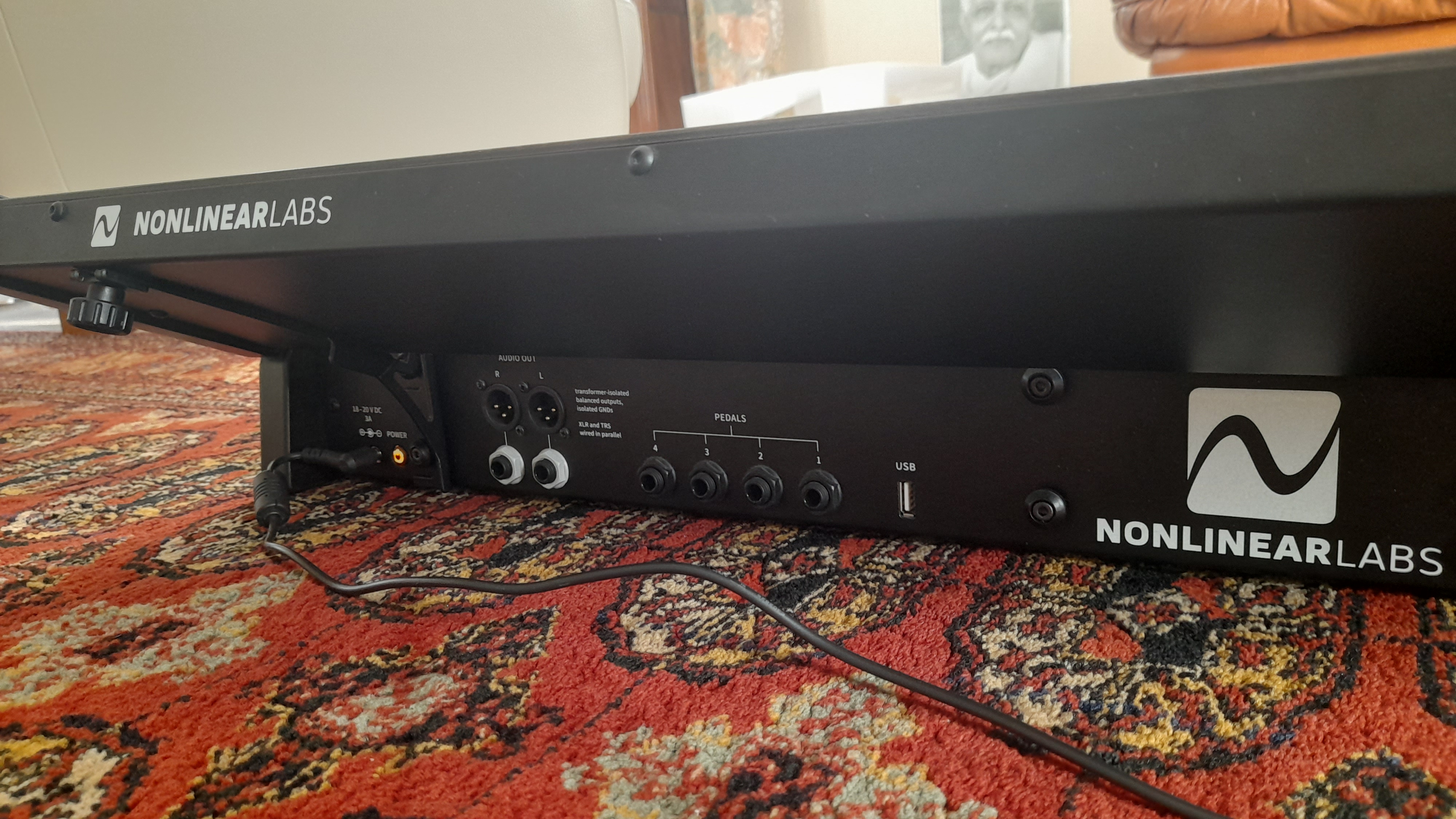

Connectors
  • Main audio outputs (L, R) (TRS, balanced by transformers)
  • Headphone output at the front (TRS)
  • 4 inputs for analog controls, such as pedals (TRS, flexible pin-assignment)
  • USB host connector for data exchange and software updates
Dimensions
  • Base unit only: 900 x 290 x 100 mm (width x depth x height)
  • Including panel unit: 900 x 410 x 160 mm (width x depth x height)
»

News Nonlinear Labs C15

Une grosse mise à jour pour le logiciel du Nonlinear Labs C15

Une grosse mise à jour pour le logiciel du Nonlinear Labs C15

20 Publiée le 15/07/20
Le concepteur allemand a entièrement réécrit la partie logicielle de son synthétiseur et ajouté de nouvelles fonctionnalités.

Emphase s’appelle finalement C15

75 Publiée le 02/02/17

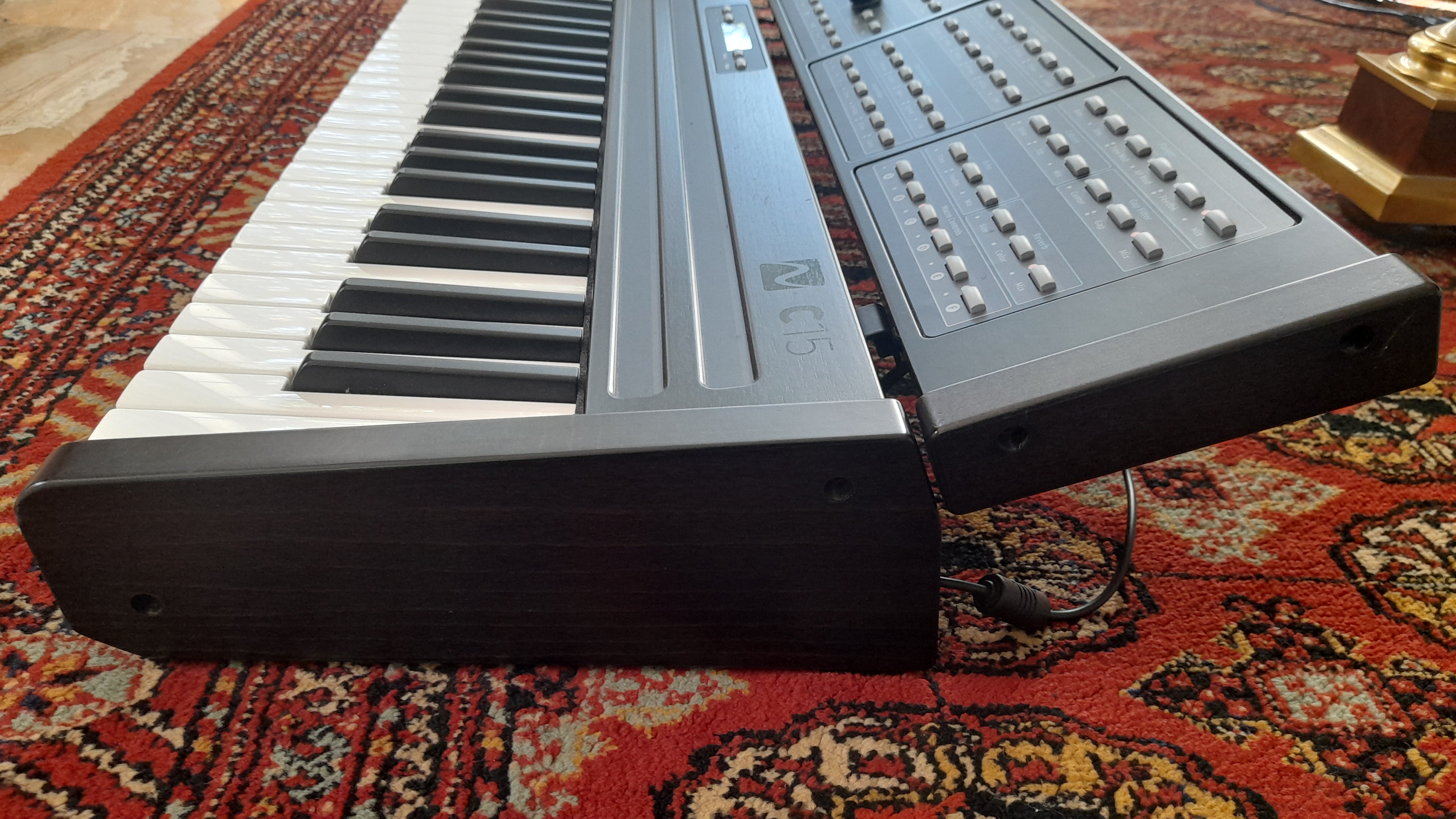

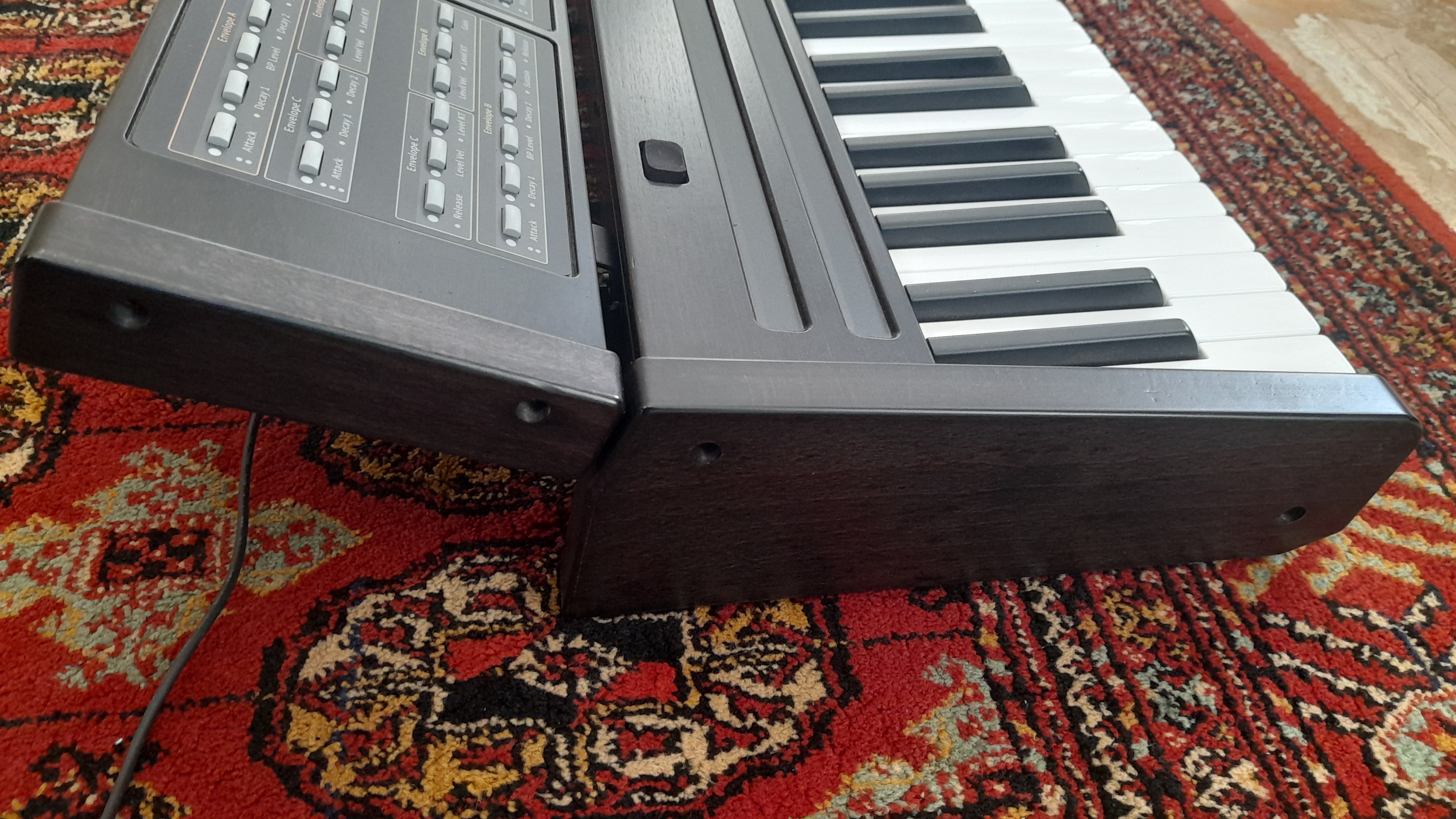

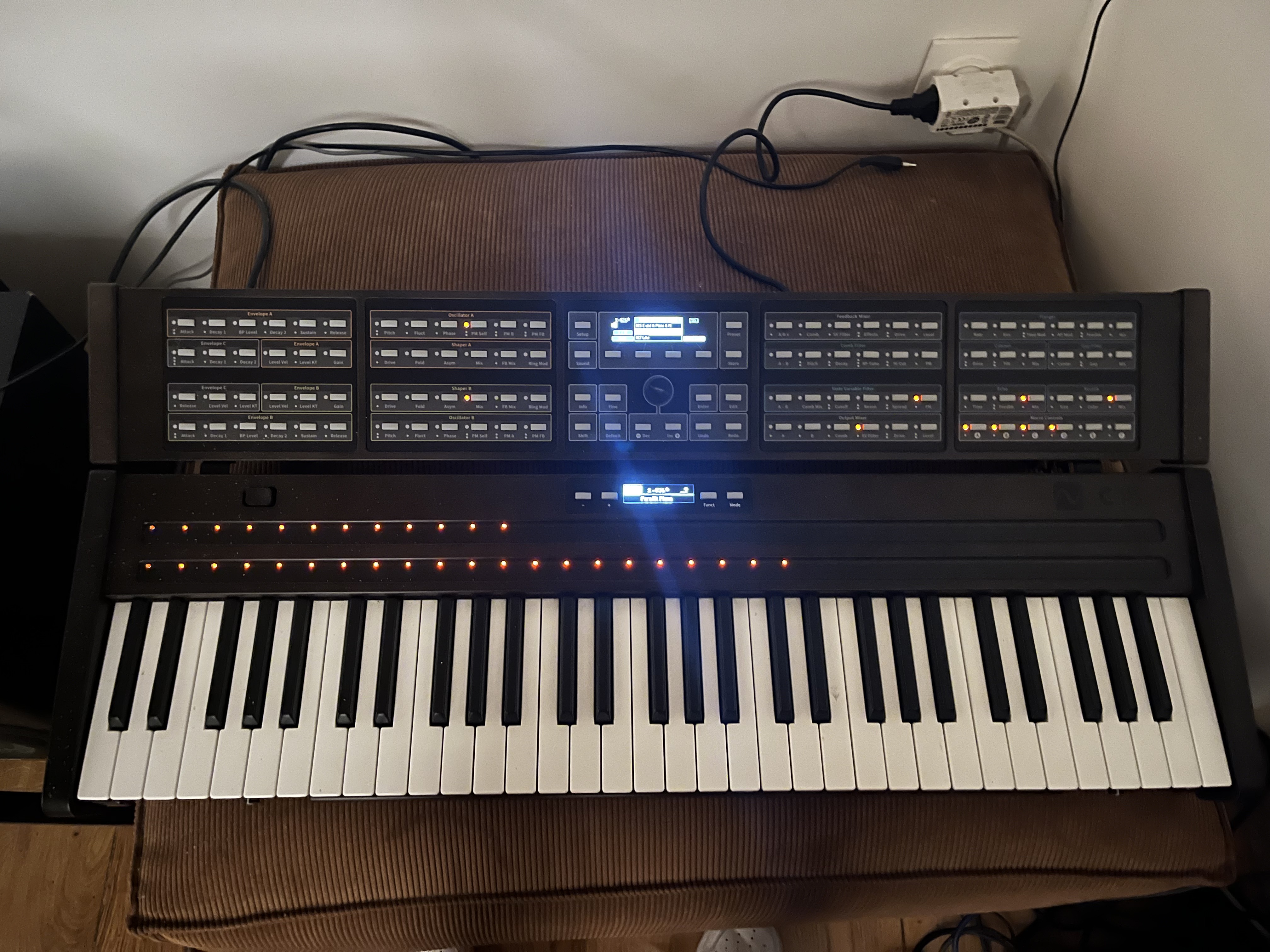

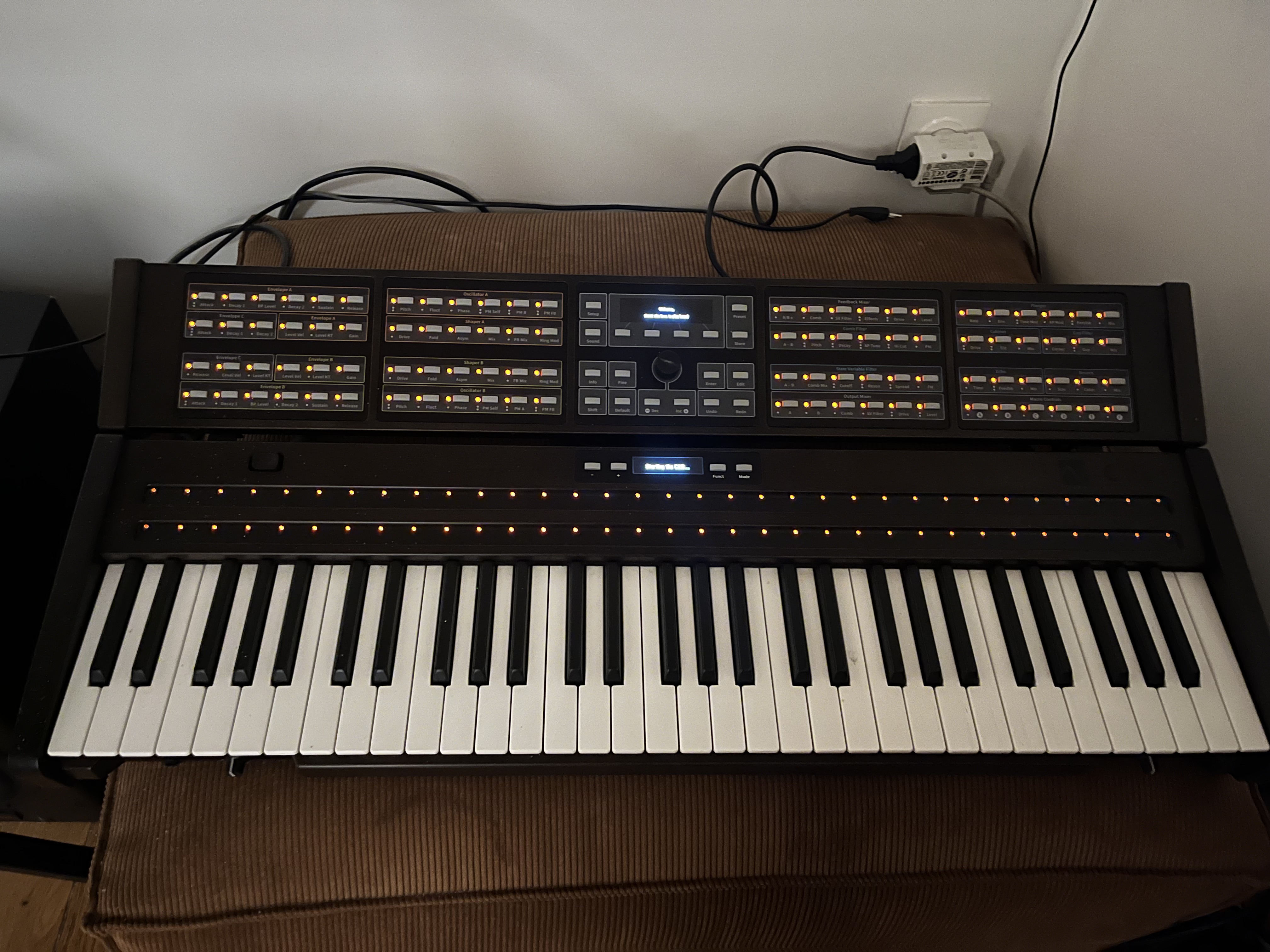

Images Nonlinear Labs C15
