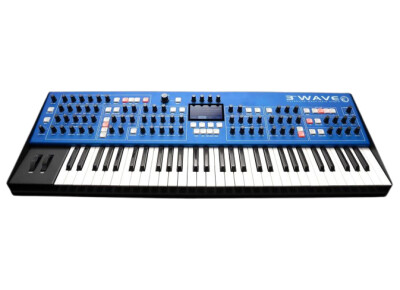

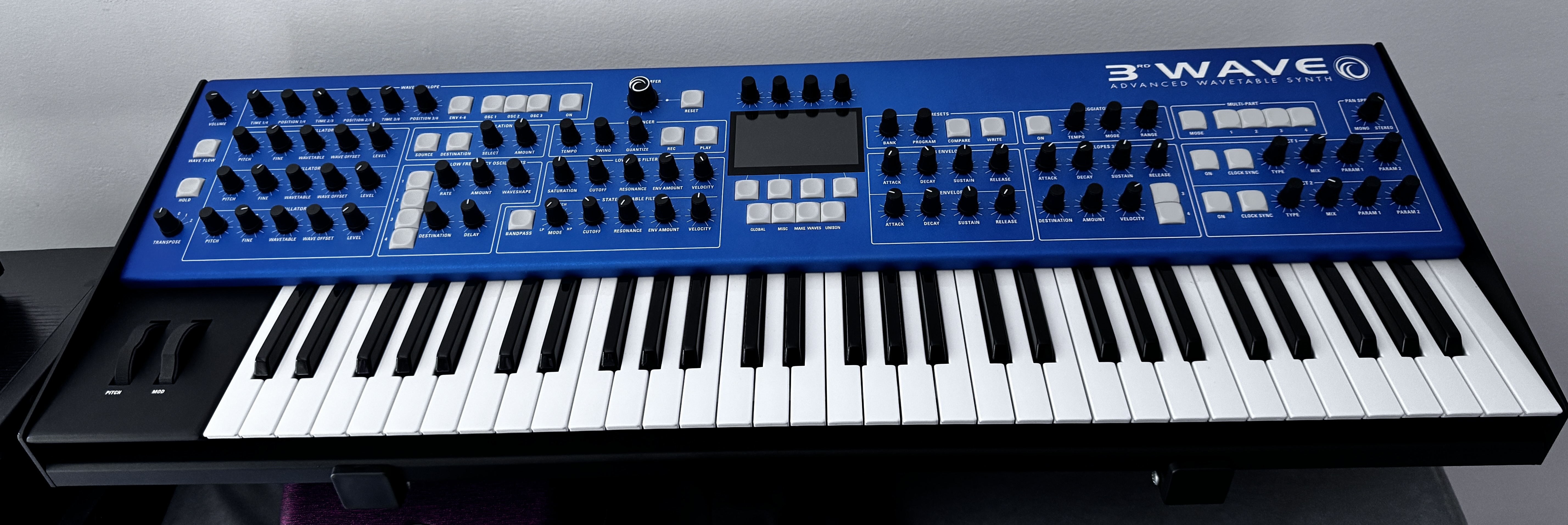

Groove Synthesis 3rd Wave

64 total user wavetable positions with 48 wavetables that contain 64 waveforms per table (32 legacy PPG waves with room for another 16 of this type)

32 original 8 bit wavetables from the PPG 2 series instruments with room for 16 more user created 8 bit wavetables

7 high-resolution modeled analog waveforms (sine, saw, triangle, supersaw, pulse, white noise, pink noise)

VCO sync

Linear FM

6-stage wave envelope per oscillator with variable time and position that can be looped

Optional wave flow section that allows for no wavetable as well as no waveform interpolation

Upper wavetable mode as with the original PPG 2 series

Unison mode and chord mode with variable voice count

Dave Rossum designed, classic, 2140 low-pass resonant filter

24 db per octave slope

variable saturation amount

optional resonance compensation

12 db per octave slope

Continuously variable between low-pass, notch, and high-pass, operation with optional band-pass mode

Filter, Amplifier, plus 2 additional envelopes switchable between exponential and vintage PPG-style response

Freely assignable to multiple modulation destinations

Triangle, sawtooth, reverse sawtooth, square, pulse 1, pulse 2, pulse 3, and random (S&H)

Variable delay

Note reset

Syncable to master clock BPM

BBD, stereo delay, tape delay, chorus, phaser, flanger, distortion pedal, rotating speaker, ring mod, room reverb, hall reverb, super plate reverb – most modeled on famous hardware devices

Syncable to master clock BPM

Parameters modulatable via mod matrix

“Sample-to-wave” functionality. Connect an audio source to the 3rd Wave’s Audio In port, press “Make Waves” and the synth samples the audio to create a custom wavetable

Samples to convert can also be brought in as a 96 kHz wav file through USB

Store up to 32 custom wavetables

64 waveforms per wavetable

Accepts pitched or un-pitched material as input

96 kHz sampling rate

16-bit resolution

1024 cycles per waveform, converted automatically to cover entire keyboard range

Flexible wave-sampling length

Imports Serum™ wavetables

4 parts per sequence

24 sequences per preset

Up to 32 measures per sequence

Variable quantization resolution per sequence (32nd, 16th, 8th, quarter, half, whole note, or quantization off), that is settable in real time

Variable swing

Up, down, up/down, and assign modes

Variable range (1, 2, or 3 octaves)

16 slot modulation matrix with 27 mod sources and 114 mod destinations

12 additional fixed-source mod paths

Modulation assignment buttons enable quick and easy modulation routing

Mod Matrix runs at audio rates

Sequencer can record and play mod parameter changes in real time

77 knobs and 39 buttons enable deep, comprehensive editing with minimal menu diving

Pitch and Mod Wheels

Full-sized, five-octave, semi-weighted, premium Fatar keyboard with velocity and aftertouch

500 factory programs. User rewritable

4 Stereo outputs (2x 1/4″ phone jack per part)

Headphone out (stereo 1/4″ phone jack)

MIDI In, MIDI Out, and MIDI Thru

USB port for bidirectional MIDI communication

Audio Input for creating user wavetables from external audio source (1/4″ phone jack)

Audio Input can also route audio through the filters, output chain, and effects

Sustain/footswitch input

Volume pedal input

Expression pedal input

1 universal IEC AC power inlet for internal power supply

Operates worldwide on voltages between 100-240v, 50-60 Hz, 65 watts maximum power consumption

Shipping Box Dimensions: 44 x 20 x 13 inches, 35 lbs  - Dimensions carton expédition: 101,6 cm x 50,8 cm x 33 cm - Poids: 15,9 Kg

Synth Dimensions: 38.5 x 14.25 x 5 inches, 27 lbs - Dimensions du synthé: 97,8 cm x 36,2 cm x 12,7 cm - Poids: 12,250 Kg
