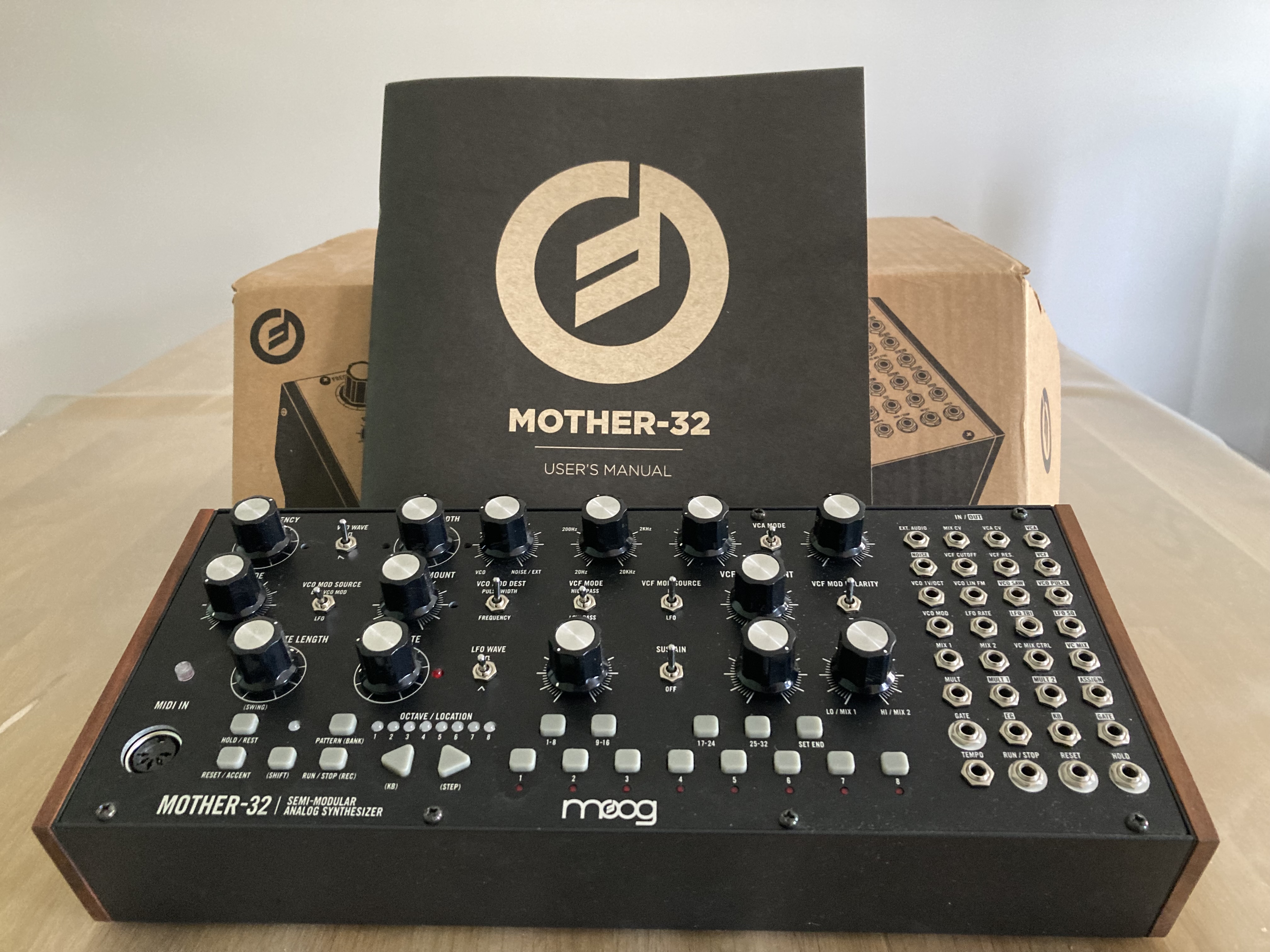

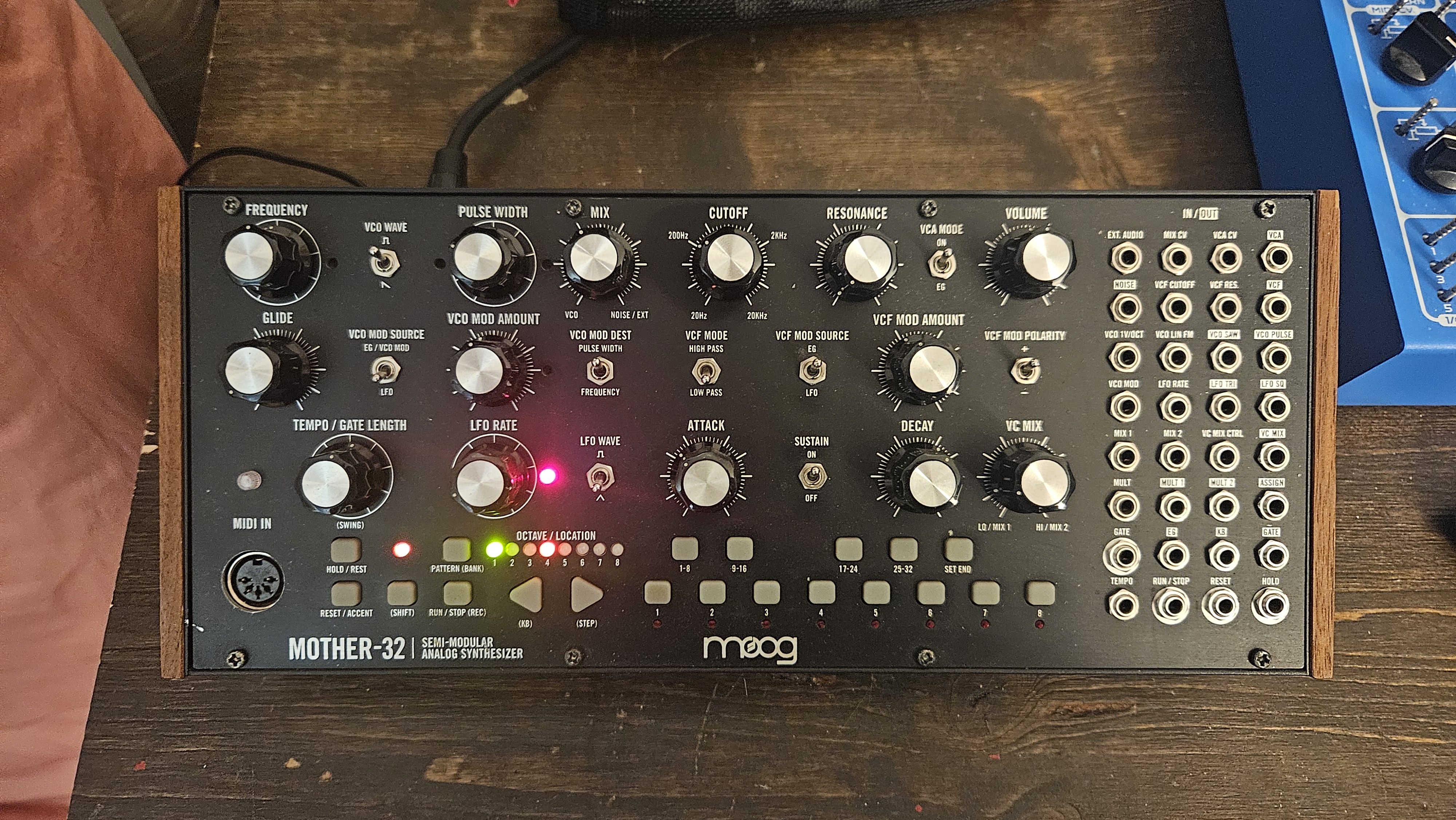

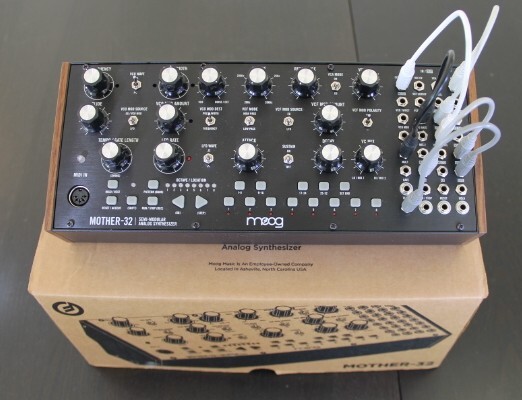

Moog Music Mother 32

• Semi-Modular design requires no patching for swift, inspired music creation

• Voltage Controlled 32 Step Sequencer with 64 Sequence Locations

• Low Pass & High Pass Moog Ladder Filter (20Hz–20KHz) with voltage controlled resonance

• External audio input for processing outside sound sources
• Definitive Moog oscillator with Pulse and Sawtooth wave outputs • 5-pin MIDI input and MIDI to CV converter
• 32 Modular Patch Points (Includes 5 patch cables)
• 2 Voltage controlled mixers

• Superb companion to Werkstatt 01, Minitaur and other synthesizers • Main module can be easily transferred into a Eurorack skiff or case • Mount 2 or 3 units vertically with optional 2 and 3 Tier kits
• Complete solution for new Eurorack users – no other items required

PRODUCT DETAILS

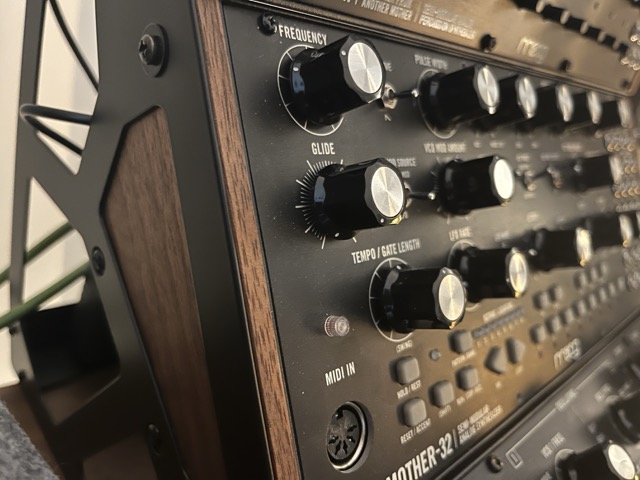

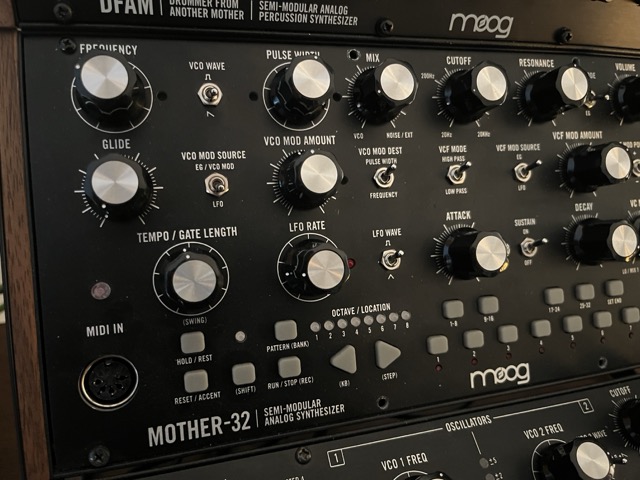

VOLTAGE CONTROLLED OSCILLATOR

• Single VCO with simultaneous Sawtooth and Pulse wave Outputs (+/- 5V)

• 1 V/Octave from 8Hz to 8KHz (16KHz max with LFO/CV)

• Panel Frequency control (+/-1 Octave)

• Toggle Selector for waveform routed to the mixer

• Pulse Width control

• Linear FM and 1V/Octave Exponential FM inputs (+/-5V) NOISE

• Output normalled to Ext Audio input

• White Noise output (+/-5V)

  VOLTAGE CONTROLLED MIXER

• Crossfades between selected VCO waveform and Ext Audio input (normalled to White Noise)

• Mix CV input (+/-5V) VOLTAGE CONTROLLED FILTER

• 20Hz to 20KHz switchable Low Pass/High Pass 4-pole Transistor Ladder Filter with voltage controlled Resonance

• VCF Cutoff input (+/-5V)

• VCF Resonance input (+/-5V)

• VCF Output (+/-5V)

  VOLTAGE CONTROLLED AMPLIFIER

• Selectable CV Source: EG or ON (drone)

• VCA CV input (0 to +8V in EG mode and +/-5V in ON mode,

summed with signals from ON/EG switch)

• Output Volume Control (VCA Out and Line/Headphone Out)

• VCA output (+/-5V) and rear panel 1/4" Headphone/Audio Output

  (+/-1.7V peak)

  LOW FREQUENCY OSCILLATOR

• Square wave output (+/-5V)

• Triangle wave output (+/-5V)

• Selectable waveshape to VCO and VCF MOD sections

• Panel Rate control .1Hz to 350Hz (600Hz max)

• LFO Rate CV input (+/-5V)

  ENVELOPE GENERATOR

• Variable controls for Attack and Decay

• Sustain ON/OFF for single-trigger (ASD) or multi-trigger (AD)

  behavior

• External Gate input (0 to +5V; Tolerant of 10V gates)

• EG output (0 to +7.5V)

  VCO MODULATION

• Selectable Source: EG/VCO MOD or LFO (EG normalled to VCO MOD in)

• VCO Mod input (normalled to EG/VCO MOD switch position)

• Variable Modulation Amount control

• Selectable Modulation Destination: VCO Pitch or PWM (PWM

  summed with Pulse Width panel control)

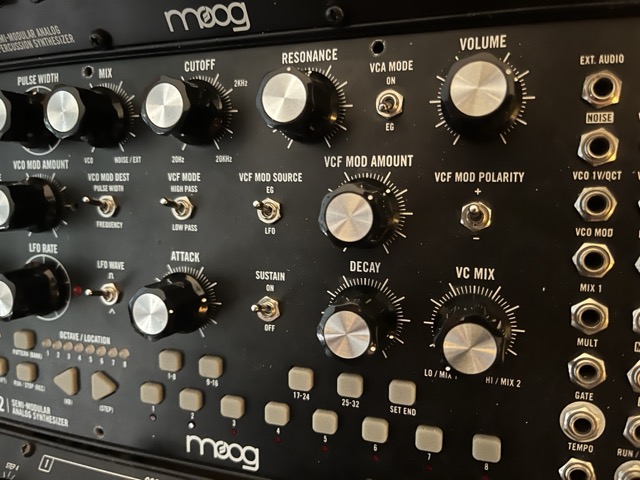

  VCF MODULATION

• Selectable Source: EG or LFO

• Variable Modulation Amount control

• Selectable VCF Modulation Polarity (+/-)

  VOLTAGE CONTROLLED MIXER/ATTENUATOR

• Voltage controlled crossfade/mix circuit for mixing two DC coupled signals

• Mix 1 Input (Normalled to ground)

• Mix 2 Input (Normalled to +5V)

• Mix Control CV input (-5V to +5V)

• Mix Output: Un-inverted output (-5 to +5V)

  MUL TIPLE

• 1x input 2x output signal multiplier

• Mult Input: Buffered signal

• Mult Outputs: 1 and 2

  KEYBOARD

• Single octave 13-note keyboard (In Step Edit Mode this is used to select, mute and enable sequencer steps.)

• Octave Up/Down buttons select from 8 available octave settings

• Glide Time control

• KB CV output (-5 to +5V)

• Gate Output (0 to +5V)

  SEQUENCER

• Dual-mode 32 step sequencer with 64 sequence locations

• Performance Modes:

  • -  In KB Mode, the Keyboard is used to play the instrument, enter sequence data and transpose sequences.

  • -  In Step Mode, the keyboard functions as the step sequencer interface and is used to enable and mute steps, update note data and select sequence banks.

• Each sequence step includes: Note Value, Gate Length (Tie), Rest On/Off, Accent On/Off, Glide On/Off and Ratchet count (up to 4 note-repeats occurring in the duration of a single note)

• Sequencer Panel Controls: Tempo, Swing, Run/Stop, Hold, and Reset

• Sequencer Control Inputs: Tempo, Run/Stop (also used for sync),

  Reset and Hold

• Sequencer Control Outputs: KB, Gate, Accent Pulse

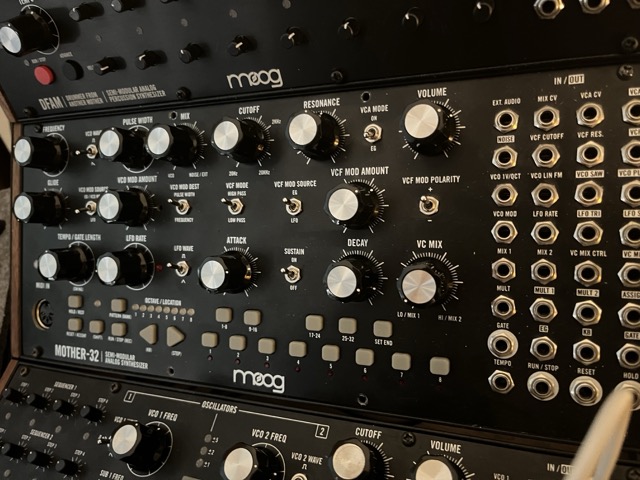

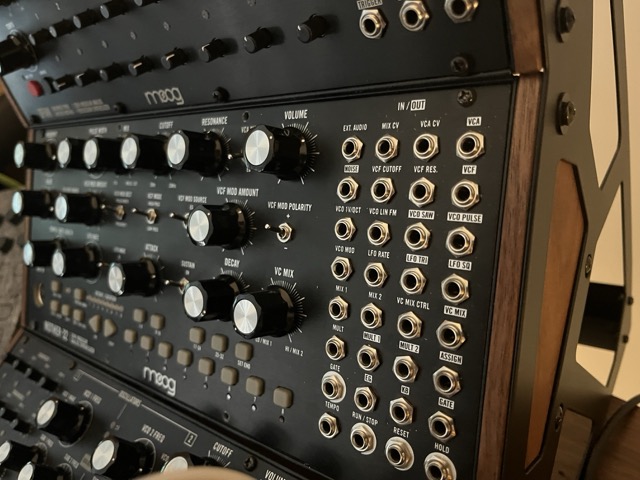

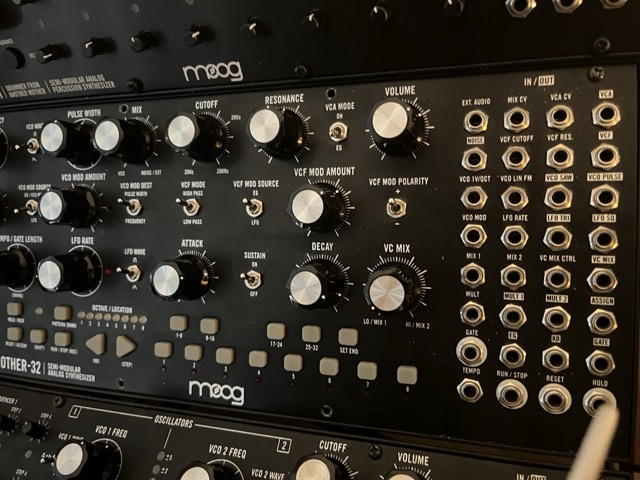

  PATCHBAY

• The patchbay contains 32 patch points (3.5mm)

• Available Inputs: External Audio, Mix CV, VCA CV, VCF Cutoff, VCF Resonance, VCO 1V/Octave, VCO Linear FM, VCO Modulation, LFO Rate, Mix 1, Mix 2, VC Mix Control, Mult, Gate, Tempo, Run/Stop, Reset and Hold

• Available Outputs: VCA, Noise, VCF, VCO Saw, VCO Pulse, LFO Triangle, LFO Square, VC Mix, Mult 1, Mult 2, Assign, EG, KB, Gate

  ASSIGNABLE OUTPUT

• Multipurpose control output for selecting from 16 available functions: Sequencer Accent, Sequencer Clock, Sequencer Clock /2 Sequencer Clock /4, Decimated "Ramp”, Decimated "Saw”, Decimated "Triangle”, Stepped Random, STEP 1, MIDI Note On Velocity, MIDI Channel Aftertouch, MIDI Pitch Bend, MIDI CC1 Mod Wheel, MIDI CC2, MIDI CC4 and MIDI CC7

SPECS

• Dimensions: 12.57“W x 4.21“H (with knobs) x 5.24“D

• Weight: 3.5 lbs.

• Power Consumption: 2.8W

• Included Power Supply: 100-250VAC, 50-60Hz, +12VDC 1A

• Patchbay: 32x 3.5mm jacks

• Rear Panel Audio Out: 1⁄4” Headphone / Audio

  EURORACK SPECS

  • Current Draw: 230mA (10-pin header)

  • Mounting Dims: 60HP (.69” 26mm Module Depth)

    ACCESSORIES

    2 Tier Rack Kit

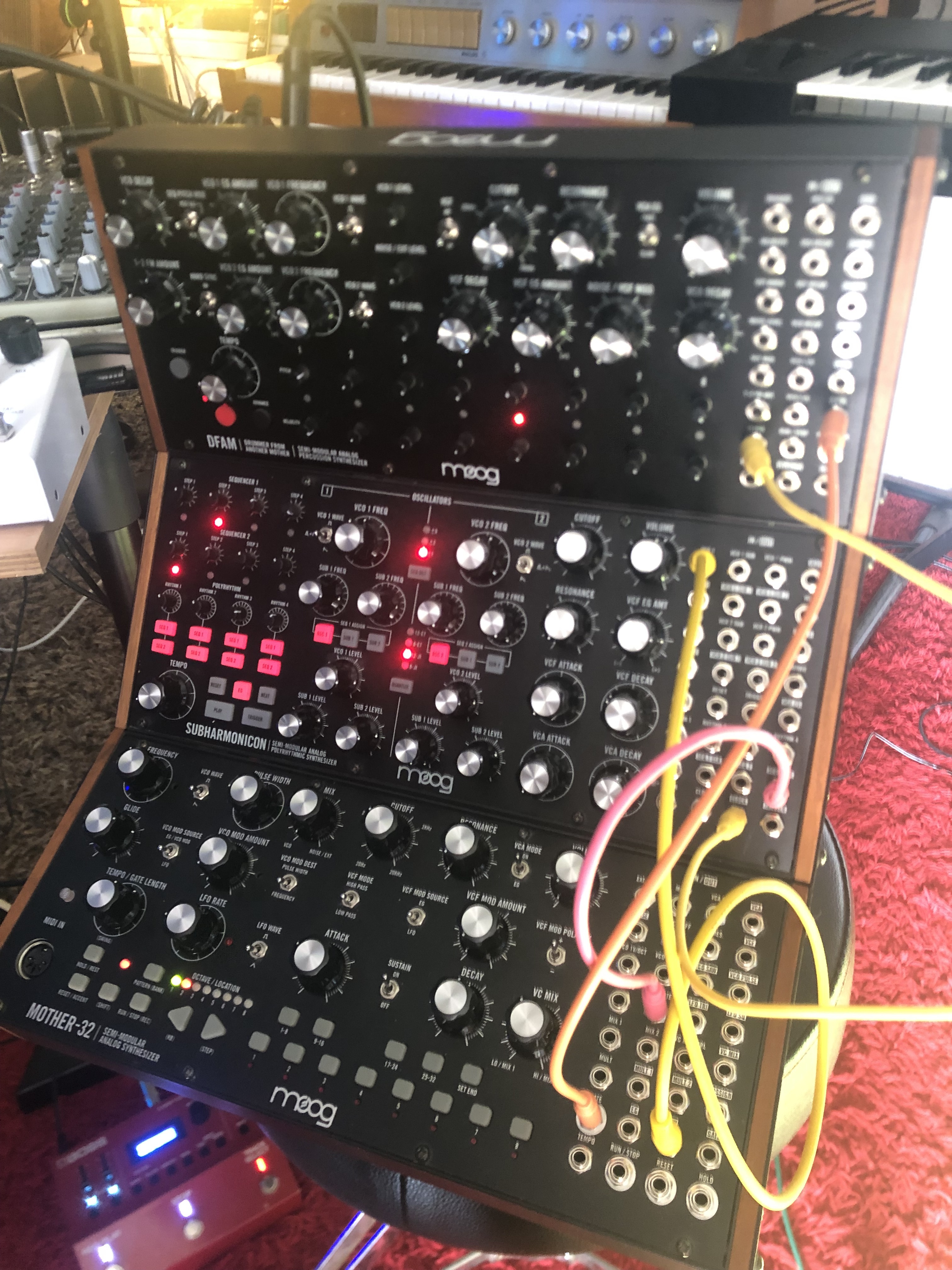

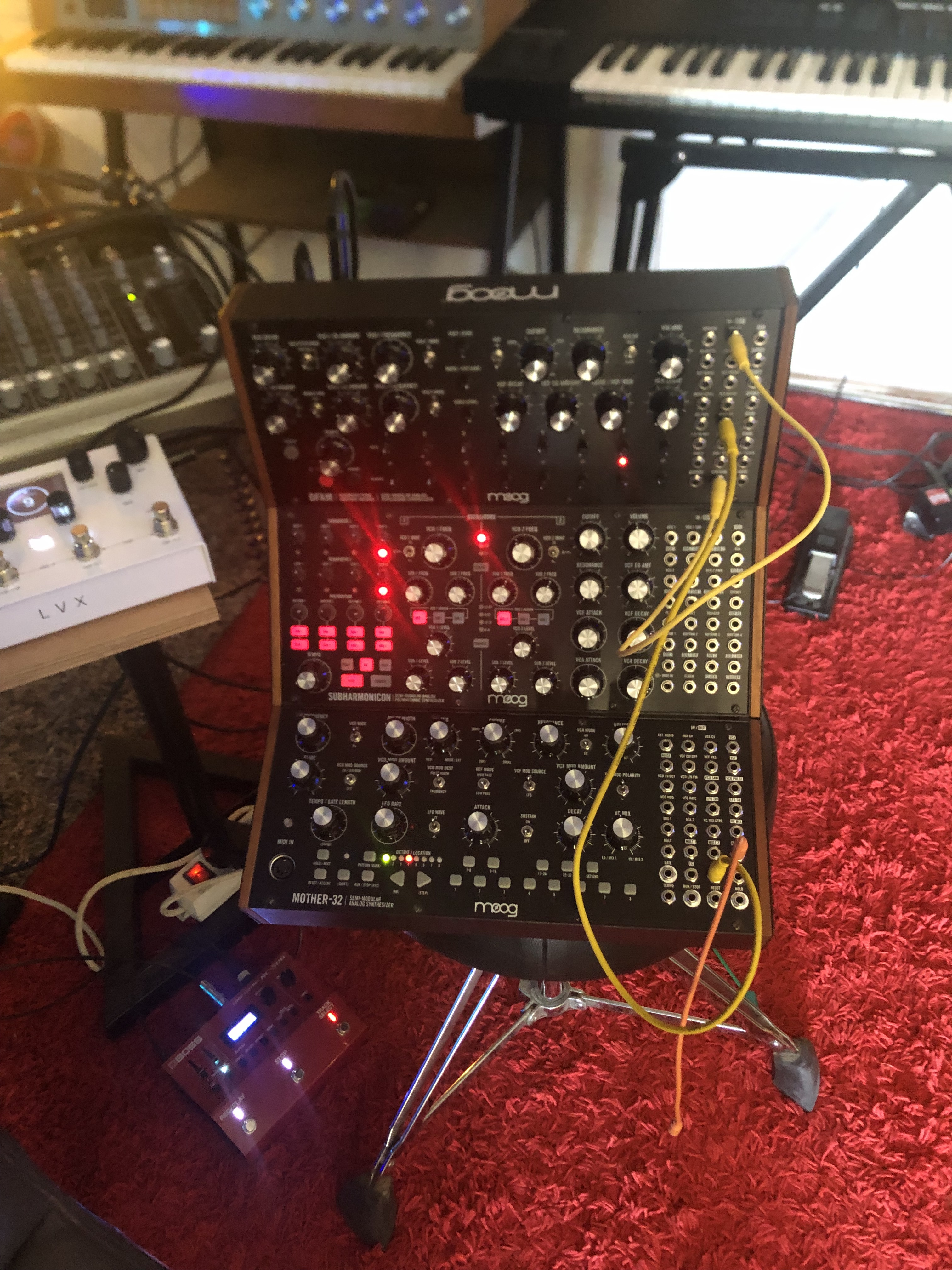

    Mount 2 Mother-32 synthesizers together vertically for increased modularity and synthesis capabilities.

• P/N: KIT-RM-0201

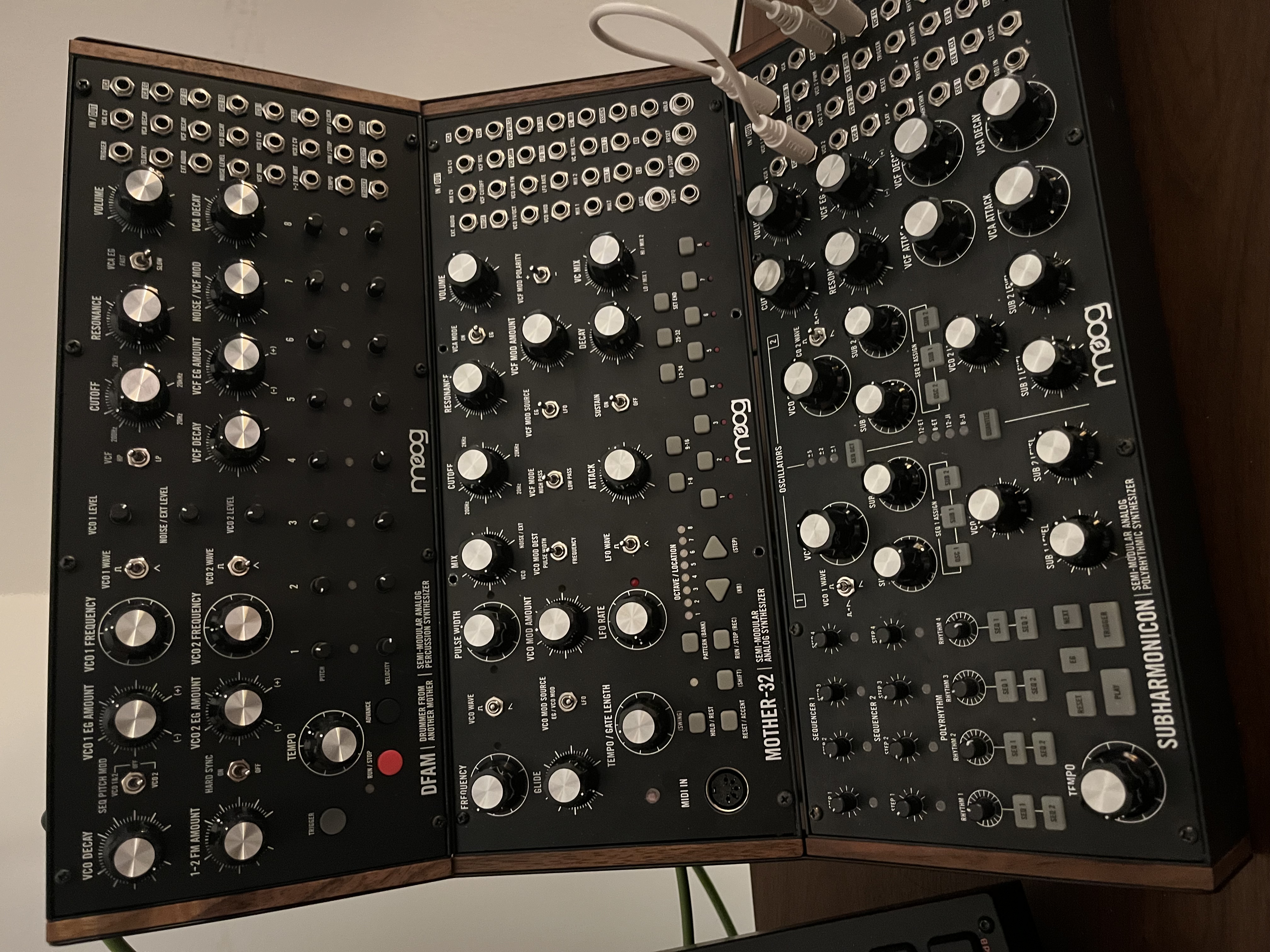

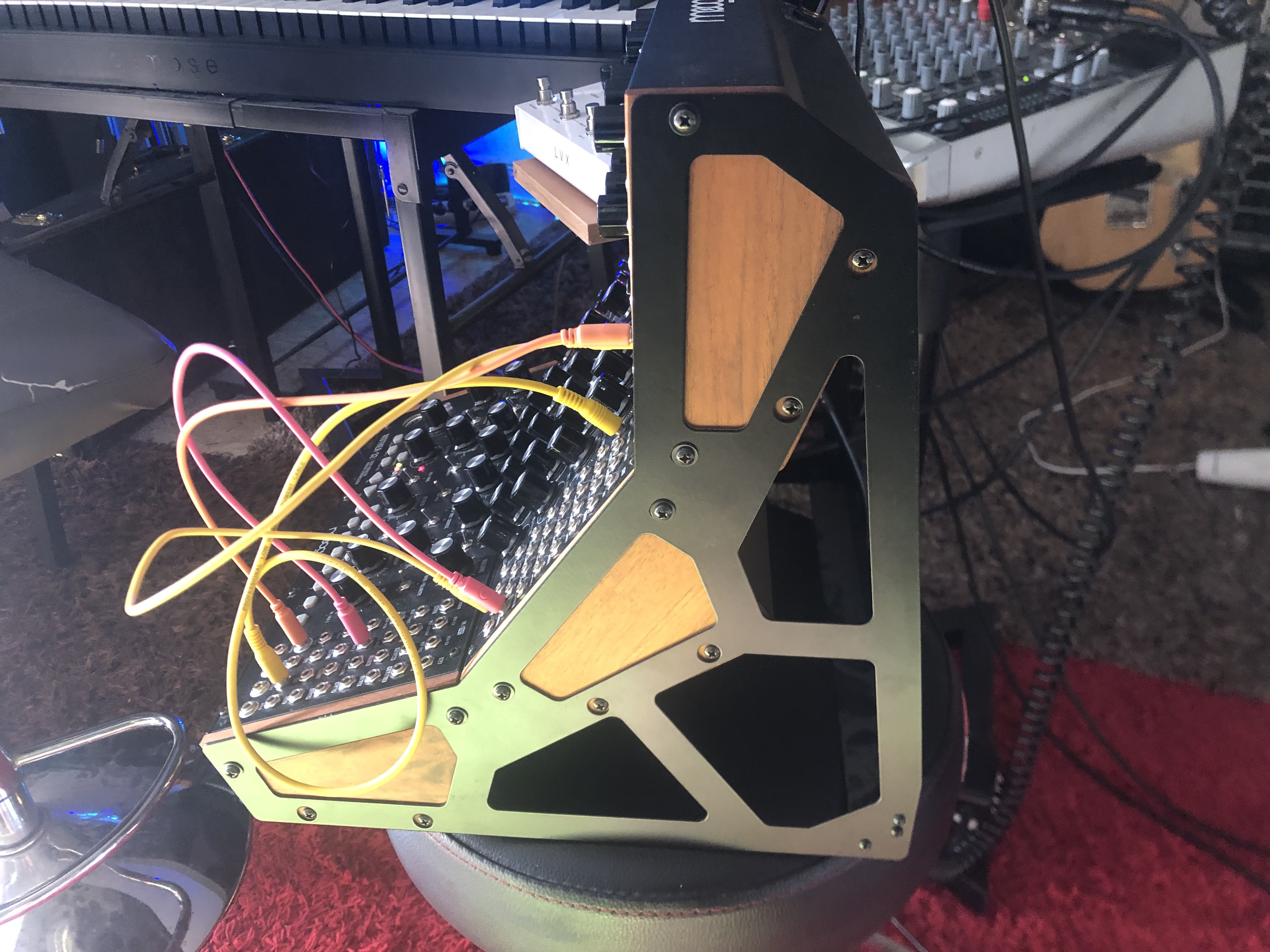

3 Tier Rack Kit

Mount 3 Mother-32 synthesizers together vertically for maximum modularity and synthesis capabilities

• P/N: KIT-RM-0301

6” Patch Cable Set

5 high quality Moog modular patch cables for use with Mother-32 and all 3.5mm equipped instruments

• P/N: ACC-CABLE-SET-2

12” Patch Cable Set

5 high quality Moog modular patch cables for use with Mother-32 and all 3.5mm equipped instruments

• P/N: ACC-CABLE-SET-3 Replacement Power Supply

Backup power supply (highly recommended for touring musicians) • P/N: TRN-01-000-0016

Empty Moog 60HP Case

60HP extruded aluminum Eurorack case with wood sides (requires separate Eurorack power module). Up to 1.9” module depth

• P/N: TRN-01-000-0016

Mother 32 Travel Bag

Premium quality, USA artisan hand-sewn carrying case custom made for Mother-32.
