- Fabricant : Syinsi
- Modèle : EuroTile
- Catégorie : Accessoires pour synthés modulaires
- Fiche créée le : 19/03/2019

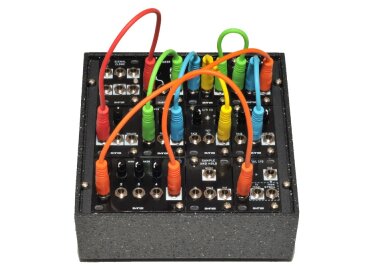

Boîtier pour 12 modules Eurorack 1U (Tile)
- Power header under each module.
- Two Eurorack 10-pin power headers.
- Ample passive ventilation.
- Dropped-screw clean-out hole.
- Standard 2.1mm power connector and switch.
- Power adapter included.
- Beefy internal power supply.
- Durable enamel finish.
- Powder-coated rails with holes for M3 machine-screws (included).
- Size: 14cm wide x 14.5cm deep x 7cm high
- Weight: ~500g (filled with modules)
- 1U Tile Depth: 30mm
- 1U Tile Power Connectors: Polarized pin headers for Futaba-J “Tile Tails”
- # of 1U Tile spaces: 12 in 4 columns x 3 rows
- Power Supply:
- 16V to 30V DC, at least 2A. (Designed to use 19V notebook power adapter)
- Typical current draw (filled case): ~200mA
- 2.1mm DC connector (2.5mm plugs also may me used), center positive.
- Included power supply works in all countries.
- +12V rail 1.2A (max continuous: 2A)
- -12V rail 0.7A (max continuous: 1.2A)
»
