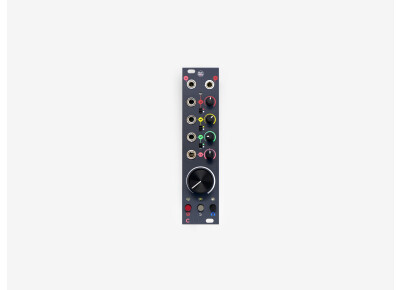

![[NAMM] Modules Eurorack Frap Tools](https://img.audiofanzine.com/img/product/normal/2/5/258612.jpg?fm=pjpg&w=116&s=52c3bcda9d86ecd3f0921ecce85710fe)
Images
Vidéos
Fiche technique
- Fabricant : Frap Tools
- Modèle : CGM
- Catégorie : Autres modules pour synthés modulaires
- Poids du colis : 374 g
- Fiche créée le : 16/01/2017
Module de mixage au format Eurorack, acronyme de Channel-Group-Master

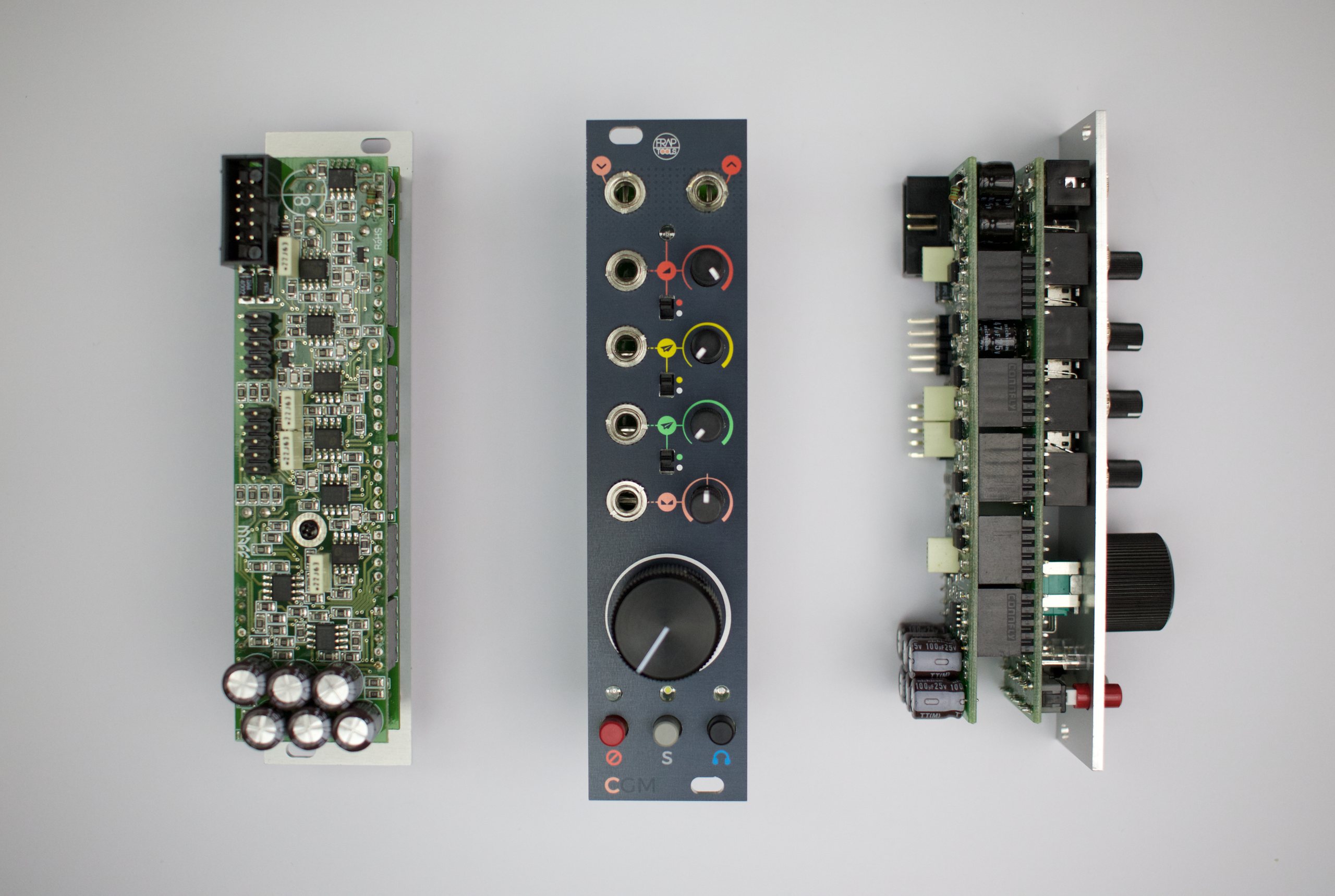

Channel
It manages mono signals via the 3.5 mm input mono jack. It has a main stereo VCA with CV in and attenuator (RED), a direct output post main VCA (pre or post fader), two parallel sends with mono VCA with CV in and attenuator for each send and pre/post fader switch (YELLOW and GREEN), and a PAN control with offset CV and offset pot. This, together with the latching buttons for mute, solo in place, and PFL, manages the incoming signal and distributes it to the Group module.

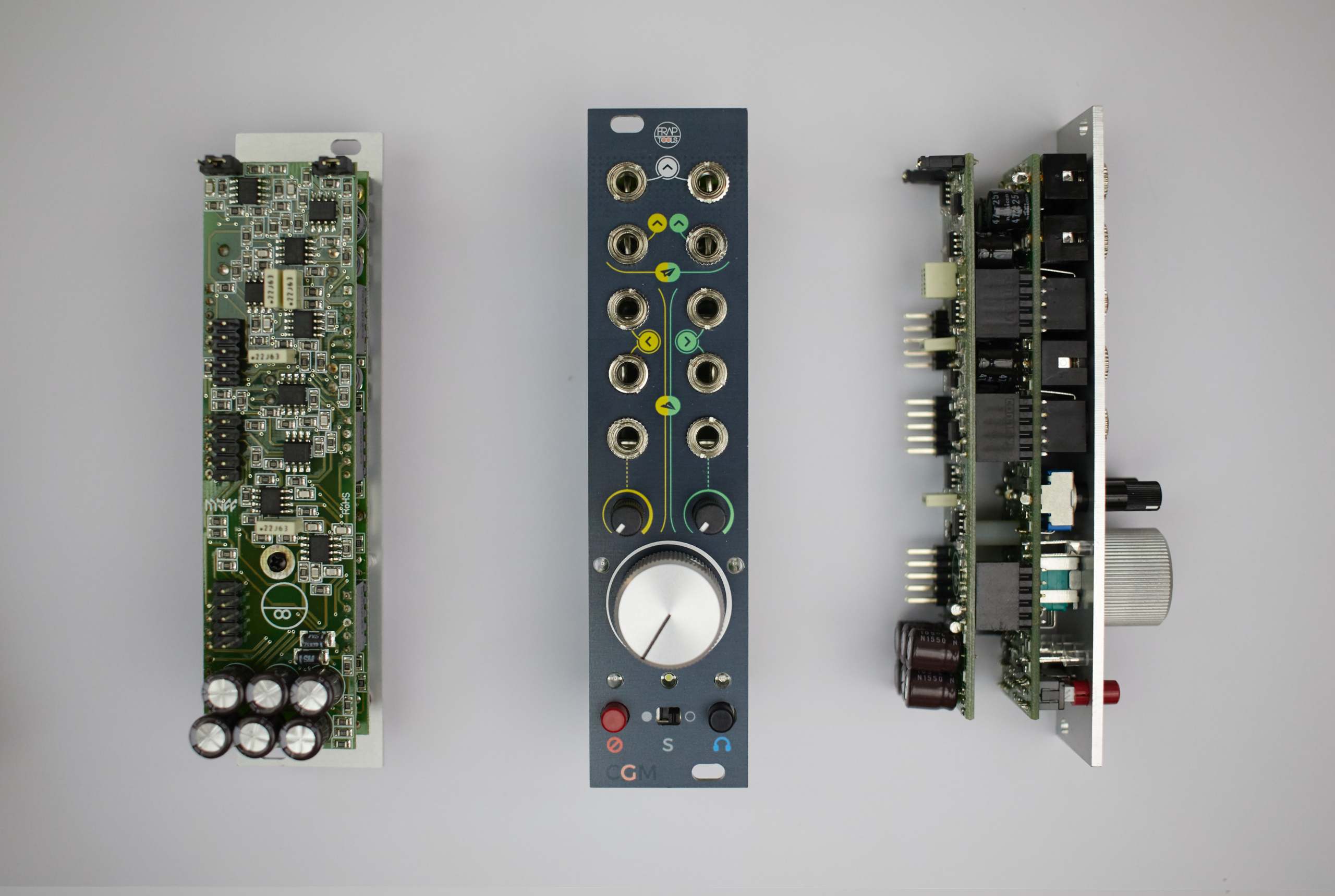

Group
It gets and sums the L/R post fader signals (WHITE) of all the linked Channels, sums all the signals from the YELLOW and GREEN sends, and manages the sends (mono) and returns (DUAL MONO or STEREO), summing it to the signals from the CHANNELS. It also manages the solo in place activation on all the linked Channels, and provides a L/R output for the outgoing signal, or (via a jumper on the back of the module) a L/R output of the sum of the returns signals.

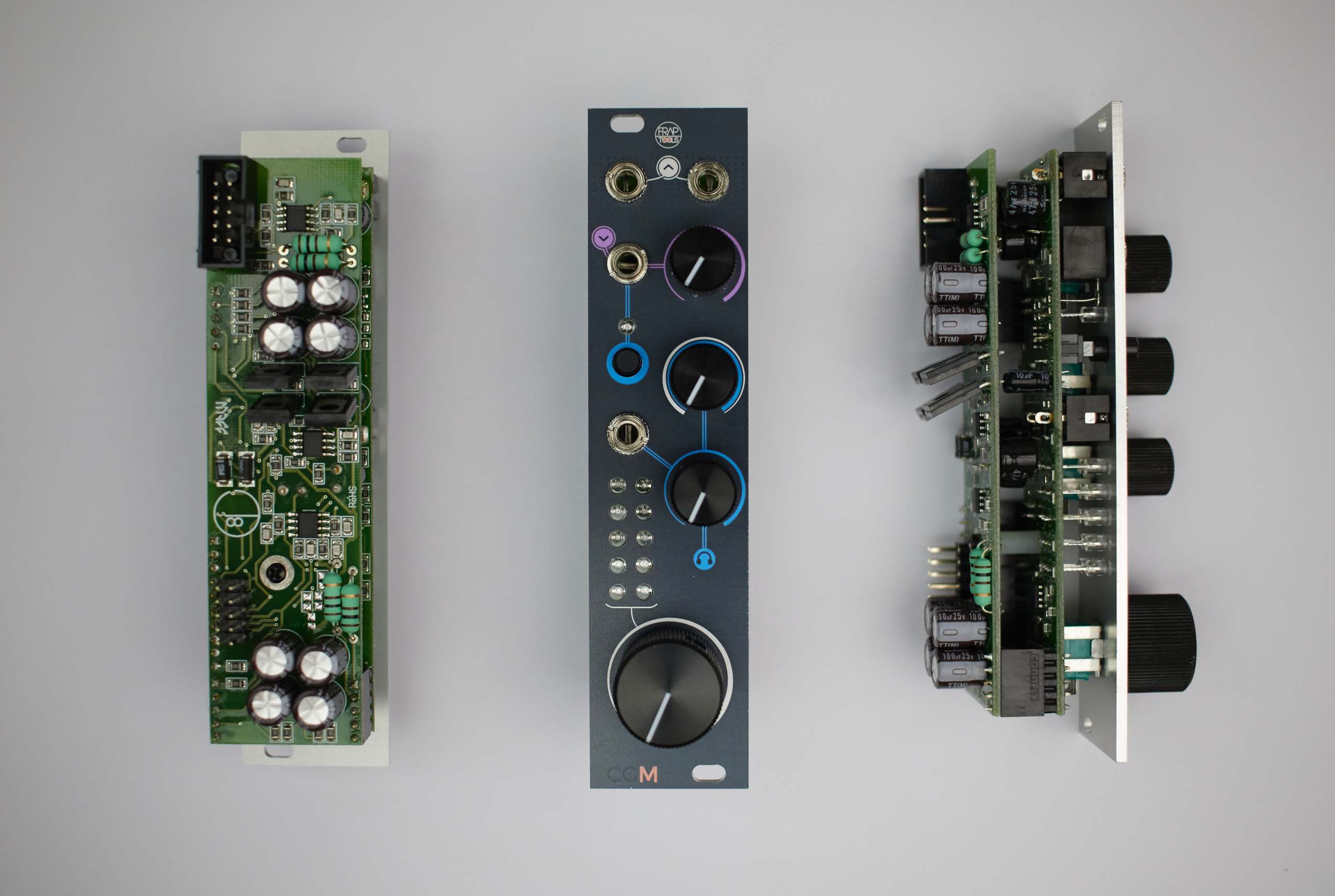

Master
It sums the incoming signals from the Groups, and manages the PFL (stereo) of both Channels and Groups. It also features a stereo in via a 3.5 mm stereo jack with PFL latching button and a stereo out via 3.5 mm stereo jack for headphones, whose signal can be blended between PFL (BLUE) and main out (WHITE).
Size 6HP each module
Depth 43mm
