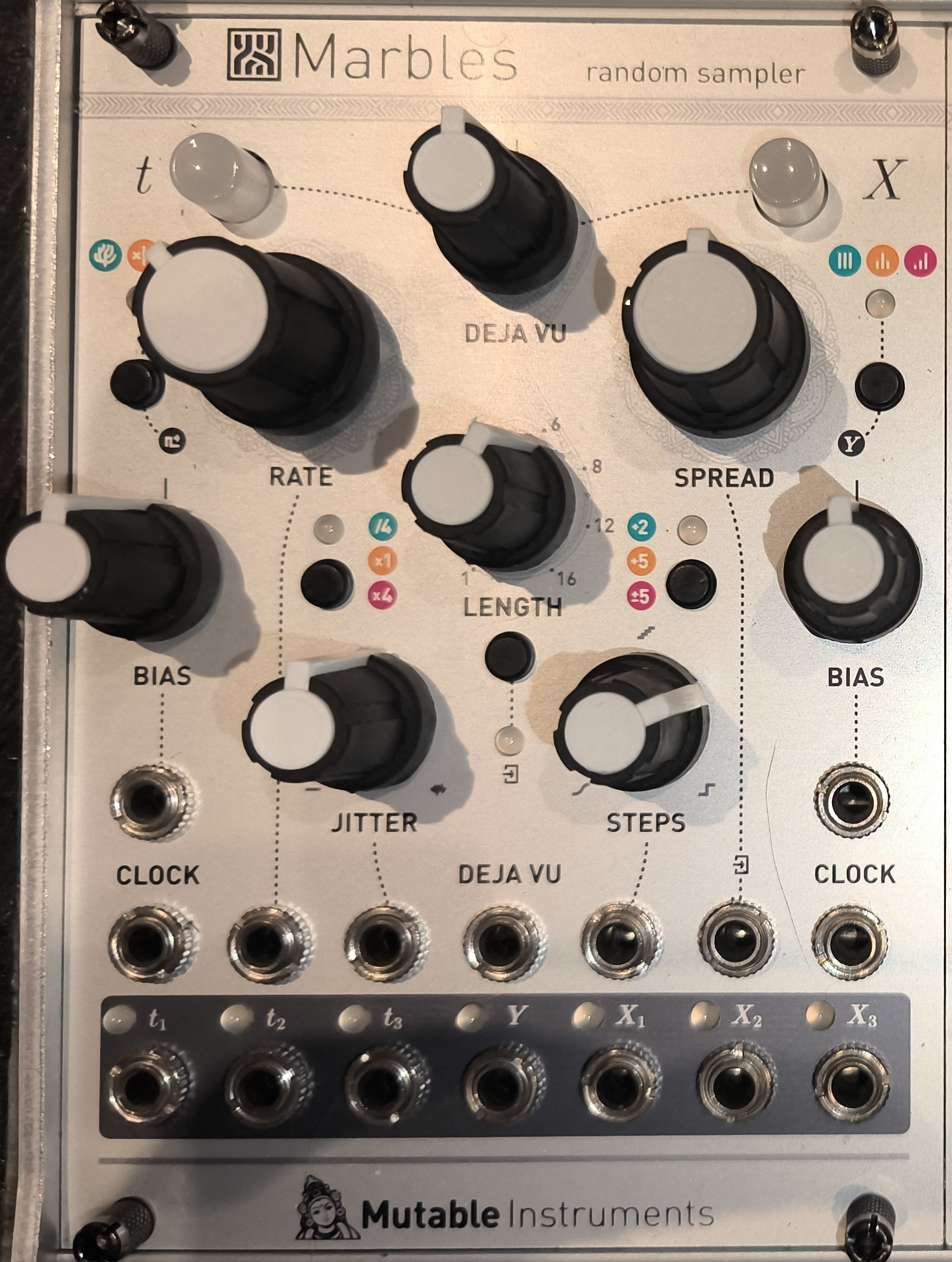

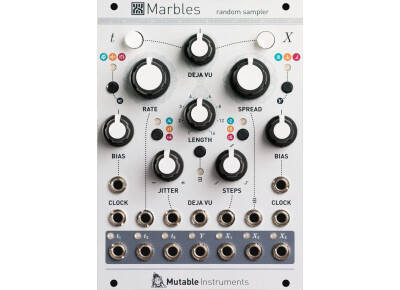

Mutable Instruments Marbles

The module gives the musician many different ways of imposing structure on the random events generated by the module: synchronization to external clocks, control of the repetition or novelty of the generated material, quantization of the voltages, or randomization of gates or voltages generated by traditional sequencers.

• Analog random source.
• All inputs: 100k impedance, DC to 3.2kHz.
• Maximum input clock rate: 1kHz for the t Section, 8kHz for the X section.
• 32kHz refresh rate.
• 14-bit DAC with accurate software calibration - error below 1mV.
• 12-bit CV capture.
• Output levels: -5V to +5V for CVs (largest setting), 0V to +8V for gates.
• Input CV range: -5V to +5V.
• Front panel with Computer Modern labels, just like on your calculus textbook.
• 80 mA +12V
• 20 mA -12V
• 18HP
• 25 mm deep
