Pittsburgh Modular Lifeforms 2+2 Mixer

• Fabricant : Pittsburgh Modular
• Modèle : Lifeforms 2+2 Mixer
• Série : Lifeforms
• Catégorie : Autres modules pour synthés modulaires
• Fiche créée le : 22/01/2017

Module de mixage 4 canaux pour le système des synthé modulaire Lifeforms

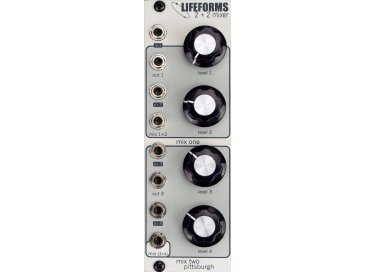

The Lifeforms 2+2 Mixer is a low noise, ambidextrous four channel mixer for both audio and CV signals. The signal path is extremely versatile allowing it to function in five different configurations.

• A Four Channel Mixer
• A Pair of Two Channel Mixers
• Four Independent Attenuators
• Two Attenuators and a Two Channel Mixer
• One Attenuator and a Three Channel Mixer

The channel controls utilize a logarithmic volume curve tuned for audio signals but the module will work with CV as well.

In 1 Jack - Channel 1 input jack.

Out 1 Jack - Channel 1 output jack. Plugging in a cable removes channel 1 from the mixer and allows it to be used as a passive attenuator.

Level 1 Knob - Channel 1 level attenuator.

In 2 Jack - Channel 2 input jack.

Mix 1+2 Out Jack - Channel 1 and 2 output jack. Plugging in a cable removes channel 1 and 2 from the Mix (3+3) output and allows channel 1 and 2 to act as separate a 2 channel mixer.

Level 2 Knob - Channel 2 level attenuator.

In 3 Jack - Channel 3 input jack.

Out 3 Jack - Channel 3 output jack. Plugging in a cable removes channel 3 from the mixer and allows it to be used as a passive attenuator.

Level 3 Knob - Channel 3 level attenuator.

In 4 Jack - Channel 4 input jack.

Mix (3+4) Out Jack - Main mixer output.

Level 4 Knob - Channel 4 level attenuator.

Module Specifications
Panel size: 8hp
Depth: 24mm
Power Usage: +12v 7mA, -12v 7mA.  Does not require +5v. Reversed power polarity protection.
