Fiche technique
- Fabricant : RMIF
- Modèle : Elsita
- Catégorie : Boîtes à rythmes
It is a powerfull 4 channel analog drum synthesizer, produced in the USSR in 1980s.
It has 4 identical channels (which can be used & edited freely).
On every channel you can change: trigger signal sensitivity, tone, attack, release, tone\noise balance, filter, volume level. Each channel has trigger Input on a standart 1/4 mono Jack for 4 pads.
It can be triggered from any drum pads like classic Simmons or modern Roland\Yamaha
or any audio source - line outs of the drum machine or soundcard or CV Gate etc. The module has Audio Output (1/4 Jack) and Headphone Output (1/4 Jack). This is an armoured antitank piece of gear and the sound it produces is very unique! Can synthesize huge pallete of sounds - from modern punchy BD & SD to classic 808 or 909 subs or claps e.t.c..

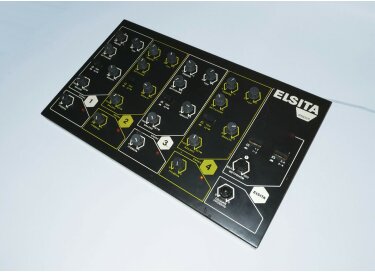

Control on the front desk for each chanel:
Gain, Tone, Attack, Release, Tone\Noise Balance, Filter, Level.
The general functional buttons:
Mains indicator
Channels 1-2 or 1+2 (switch)
Channels 3-4 or 3+4 (switch)
Metronome (ON, 0-300)
Main Volume
The mains power of the unit is 220 volts.
