Fiche technique
- Fabricant : Klark Teknik
- Modèle : LBB100
- Catégorie : Boîtes de direct
- Autres dénominations : lbb 100

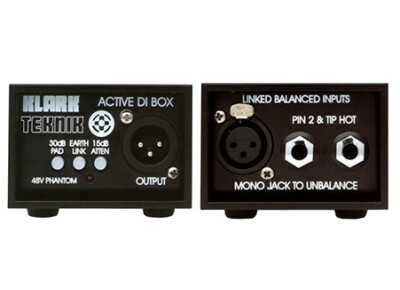

La LBB100 est une boite de directe active.
Inputs
- Type: Transformer isolated, balanced or unbalanced
- Impedance: 1 MOhm nominal, balanced or unbalanced
- Connectors: 2x 1/4" & 3-pin XLR, linked in parallel
- Max. Level: 42 dBu (100V RMS)
- Attenuator: 30 dB, switchable
Output
- Type: Active balanced
- Impedance: 150 Ohms
- Connector: 3-pin XLR
- Max. Level: 10 dBu with load more than 1 KOhm
- Min. Load: 600 Ohms
Performance
- Noise: -100 dBu, 20 Hz to 20 KHz unweighted with input terminated by 10 K resistor
- Frequency Response: +/-1 dB 20 Hz - 20 KHz
- Distortion: Less than 0.01% at 1 KHz, 4 dBu output
Power Requirement
- Voltage: 48V Phantom +/-10%
- Current Consumption: 10 mA
Dimensions & Weight
- Dimensions (LxWxH): 135 x 76 x 51 mm
- Weight: 600 g
Source : Mode d'emploi
Distribué par EVI Audio
»
