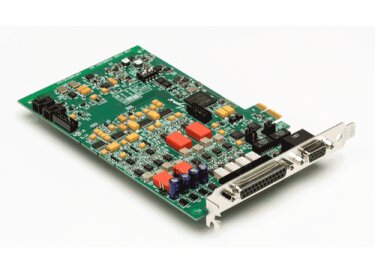

Lynx Studio Technology E44

• Fabricant : Lynx Studio Technology
• Modèle : E44
• Catégorie : Cartes son PCIe
• Poids du colis : 374 g
• Fiche créée le : 11/01/2015

Analog I/O

Four input channels / four outputs channels
Type Electronically balanced or unbalanced, XLR connectors
Level +20dBu full-scale or variable +8.23dBu to +24dBu full-scale; jumper selectable
Input Impedance Balanced mode: 24 kohm
Unbalanced mode: 12 kohm
Output Impedance Balanced mode: 100 ohm
Unbalanced mode: 50 ohm
Output Drive Capability 600 impedance, 0.2 µF capacitance
A/D and D/A Type 24-bit, multi-level, delta-sigma
Sample Rates All standard sample rates up to 192kHz

Analog In Performance

(Analog performance specs measured at 44.1 kHz sample rate, 24-bit,
card installed in computer)
Frequency Response 20 - 20 kHz, ± 0.05 dB
Dynamic Range 117 dB, A-wtd.
Channel Crosstalk <-128 dB, 1kHz signal@-1dBFS
THD+N -111 dB (0.0003%) @ -1 dBFS
1 kHz signal, 22Hz - 22kHz BW
Analog Out Performance
(Analog performance specs measured at 44.1 kHz sample rate, 24-bit,
card installed in computer)
Frequency Response 20 - 20 kHz, ± 0.05 dB
Dynamic Range 120 dB, A-wtd.
Channel Crosstalk <-130 dB, 1kHz signal @ -1dBFS
THD+N -108 dB (0.0004%) @ -1 dBFS
1kHz signal, 22Hz - 22kHz BW

Digital I/O

Number / Type
Four input channels / four outputs channels
24 bit AES/EBU or S/PDIF format jumper
selectable, transformer coupled, XLR connectors

Sample Rates 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz,
177.4 kHz, 192 kHz

Clock I/O

Number External: one input and output, BNC connectors on Sync Cable
Internal: one input and output on boardmounted
headers
Level / Impedance TTL / 75 ohms
Type Word clock

On-board Digital Mixer

Channel Capacity 16 input channels, 8 sub outputs
Monitor Mixing 16 x 8 with no limitations
Metering Peak levels to -120 dB on all inputs and outputs

Connections

Audio Port Bracket-mounted 25-pin female D-sub connector
for analog audio I/O
Sync Port Bracket-mounted 15-pin high-density female
D-sub connector for digital input and output,
word clock in and out

Software

Windows Drivers Windows 7 / 8: MME / DirectSound /
WASAPI (WaveRT); ASIO 2.3
Macintosh Drivers Core Audio for OS X 10.8 and higher.
Lynx Mixer Application Provides complete control of digital mixer and
all hardware settings.

General

PCI Express Bus x1
Data Transfers Highly efficient Lynx V2 DMA engine;bus mastering
Power +3.3V @ 630 mA, +12V @ 500 mA
Size 5.0” H X 7.4” W X 0.75” D (half-size PCI Express card)
Shipping Weight 1 pound
Certifications CE and FCC Class B
RoHS Certified

Distribué par Steinberg France
