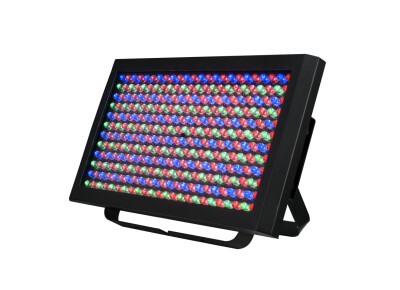

ADJ (American DJ) Profile Panel RGBA

Optical:

• Bright indoor LED Color Panel with 288, 10mm LEDs (72 Red, 72 Green, 72 Blue, & 72 Amber LEDs)

• Long life (Rated at 100,000 hrs.)

• Beam angle: 30 degrees

Connection:

• powerCON In/Out

• Power Cord Daisy Chain up to 20 fixtures Max @ 120V

• Linkable via 3-pin XLR cable

Control:

• DMX-512 Protocol

• Electronic Dimming: 0 - 100%

• 6 Operational modes: Built-in programs, Sound mode, Static Color mode, Auto Run, RGBA Dimmer mode, & DMX mode

• Compatible with the UC IR Remote Control & Airstream IR

Features:

• Great as an architectural wall wash or for performance stages where traditional stage lighting emit a lot of heat onto performers

• Smooth RGBA color mixing (fast or slow color change operation)

• Color strobe effect

• Low power consumption

• Very low heat output

• Run all night – no duty cycle

• 4-button LED display on rear panel

• Includes mounting bracket to hang on truss or mount on a wall

Electrical:

• Power Draw Total (All LED’s @ Full On): 45W, 0.5A @ 120V/60Hz, 42W, 0.2A @ 220V/50Hz,

• Multi-voltage: 100-240V, 50/60Hz powerCON In/Out

• Power Draw: 35W

Dimensions / Weight:

• Dimensions (LxWxH): 16.73” x 3.2” x 10.75” m

• Weight: 7.8 lbs. / 3.5 kgs.
