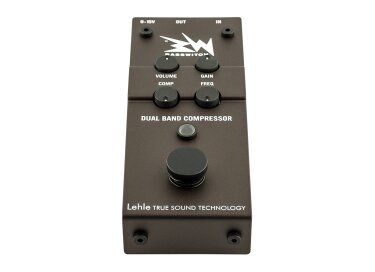

Lehle Basswitch Dual Band Compressor

Ajouter ce produit à
  • Mon ancien matos
  • Mon matos actuel
  • Mon futur matos
Déposer un avis
Prix public : 269 € TTC
Où acheter Basswitch Dual Band Compressor ?
Moins
  • Neuf
  • Occasion
Aucun revendeur ne propose ce produit pour le moment.
Alerte disponibilité
Il n’y a pas de petite annonce pour ce produit.
Alerte nouvelle annonce

Fiche technique

Créée le 14/09/2016
  • Fabricant : Lehle
  • Modèle : Basswitch Dual Band Compressor
  • Catégorie : Compresseurs/Limiteurs Basse
  • Poids du colis : 460 g
  • Autres dénominations : basswitchdualbandcompressor
The Basswitch Dual Band Compressor is a high-end compressor in pedal size built especially for bass instruments. By intelligently linking parameters like attack and release, the amount of controls could be reduced whilst those parameters are dynamically adjusted to the bass-signal. So, operating this device becomes an intuitive, simple and fast act - a clear benefit for live performances. Equipped with two fully fledged high-end compressors working in two adjustable frequency-ranges, the Basswitch Dual Band Compressor allows effective and harmonious compression of bass signals. This includes contouring fast staccato-passages, well-defined slapping-lines and a smooth concentration of the sound.

Technical specifications

Size & Weight
  • Weight: 400 gr
  • Length: 14,9 cm
  • Width: 6,0 cm
  • Overall height: 4,4 cm
Power
  • Voltage range: 9-15V AC/DC
  • Power consumption: max. 100 mA @ 9 V DC
  • Power consumption: max. 110 mA @ 12 V DC



Technical Details
  • Input Impedance: 2.8 MegaOhm
  • Output Impedance: 100 Ohm
  • Input Gain: +/- 12 dB < 0.1 % THD, 1 kHz
  • Output Gain: +/- 28 dB
  • Maximum Input Level: +14 dBu < 1 % THD, 100 Hz
  • Maximum Output Level: +14 dBu < 1 % THD, 100 Hz
  • Frequency Response: 20 Hz - 20 kHz
Compressor Details
  • Compressor design: feedforward
  • Compression characteristics: soft knee
  • Gain Cell: VCA
  • Compression Ratio: 1:1 to 10:1
  • Threshold Range: -38 dBu to -8 dBu
  • Crossover Frequency: 250 Hz to 12 kHz
  • Attack Time: signal dependent
  • ...Low Band: 20 ms to 40 ms
  • ...High Band: 2.5 ms to 5 ms
  • Release Time: signal dependent
  • ...Low Band: 100 ms to 200 ms
  • ...High Band: 10 ms to 20 ms
