Fiche technique
- Fabricant : Proel

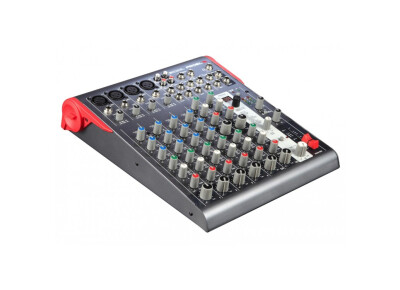

- Modèle : Mi12
- Série : Mi
- Catégorie : Consoles amplifiées
- Autres dénominations : mi 12
- System type: Compact 12-channel 2-bus mixer
- Input Connectors:
- Mic Input: Balanced XLR-F
- Line Input: Balanced JACK
- Input Sensitivity:
- MONO INPUT CHANNEL - Mic Input: from -10 to -50 dB
- MONO INPUT CHANNEL - Line Input: from +20 to -40 dB
- STEREO INPUT CHANNEL - Line Input: +4 / -10 dB
- Input Impedance:
- MONO INPUT CHANNEL - Mic Input: 2 Kohm
- MONO INPUT CHANNEL - Line Input:10 Kohm
- STEREO INPUT CHANNEL - Line Input: 10 Kohm
- Output Connectors: Unbalanced JACK
- Output Levels: Maximum level all outputs: +22 dBu
- Headphones output impedance: 32 ohm
- Mono Input channel equalization:
- HIGH (shelving): ±15 dB @ 12KHz
- MID (peaking): ±15 dB @ 2.5KHz
- LOW (shelving): ±15 dB @ 80Hz
- Effects: 256 (16 presets x 16 variations): HALL, ROOM, VOCAL and PLATE reverbs STEREO and MONO TAP DELAY REV + DELAY, REV + TAP DELAY, REV + CHORUS
- Crosstalk (meas. at 1 KHz): > 82 dBu
- HUM & Noise unweighted: < -93 dBu
- THD + Noise at +4dB, 1kHz: < 0,008 %
- Power Supply: 18 VAC 500 mA (use only supplied AC/AC ADAPTER)
- Power consumption: 32 W
- Weight: 2 lb
- Dimensions (W x H x D): 254x302x60 mm
Source : http://www.proel.com/
»
