Fiche technique
- Fabricant : Inter-M

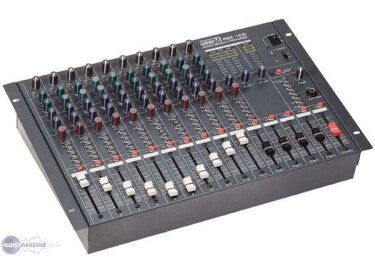

- Modèle : RMX 1426
- Catégorie : Consoles analogiques
- Fiche créée le : 04/01/2009
Specifications
ELECTRICAL
Input Sensitivity/Impedance
Mic Input 1-6 -60dB/600Ω Balanced
Mic Input 7-14 -50dB/600Ω Balanced
Line Input 1-6 -20dB/10kΩ Balanced
Line Inputs 7-14 -20dB/10kΩ Unbalanced
EFX Returns +4dB/10kΩ Unbalanced
Sub Inputs (PGM 1-4, Aux, EFX) +4dB/10kΩ Unbalanced
Output/Impedance
Stereo, PGM 1-4 Output +4dB/600Ω Balanced
AUX, EFX Send +4dB/600Ω Unbalanced
Monitor Output +4dB/600Ω Unbalanced
Headphone Output 100mW/40kΩ
Frequency Response ( +1/-2dB) 20Hz-30kHz
T.H.D (20Hz – 20kHz) Less than 0.1%
Equalization
High ±15db, 12kHz
Low ±15db, 80Hz
Buss Noise Less than –78dB
EIN Less than –128dB
Crosstalk Less than –70dB
Maximum Voltage Gain
Mic(Mono CH) to ST/PGM1~4 84dB
Mic(Mono CH) to AUX 76dB
Mic(Mono CH) to EFX 86dB
Mic(Mono CH) to Monitor 70dB
Mic(St CH) to ST/PGM1~4 74dB
Mic(St CH) to AUX 66dB
Mic(St CH) to EFX 76dB
Mic(St CH) to Monitor 60dB
EFX Return(St CH) to ST/PGM1~4 16dB
SUB In(St CH) to PGM1~4 10dB
Phantom Power +48V
GENERAL
Power Source 100 –240VAC, 50/60Hz
Power Consumption 36W
Weight 735 Kg (16.5 lbs)
Dimensions 482(W) x 104(H) x 310(D) mm
19(W) x 4(H) x 12.2(D) in.
