Alpha recording system model 1000

Description

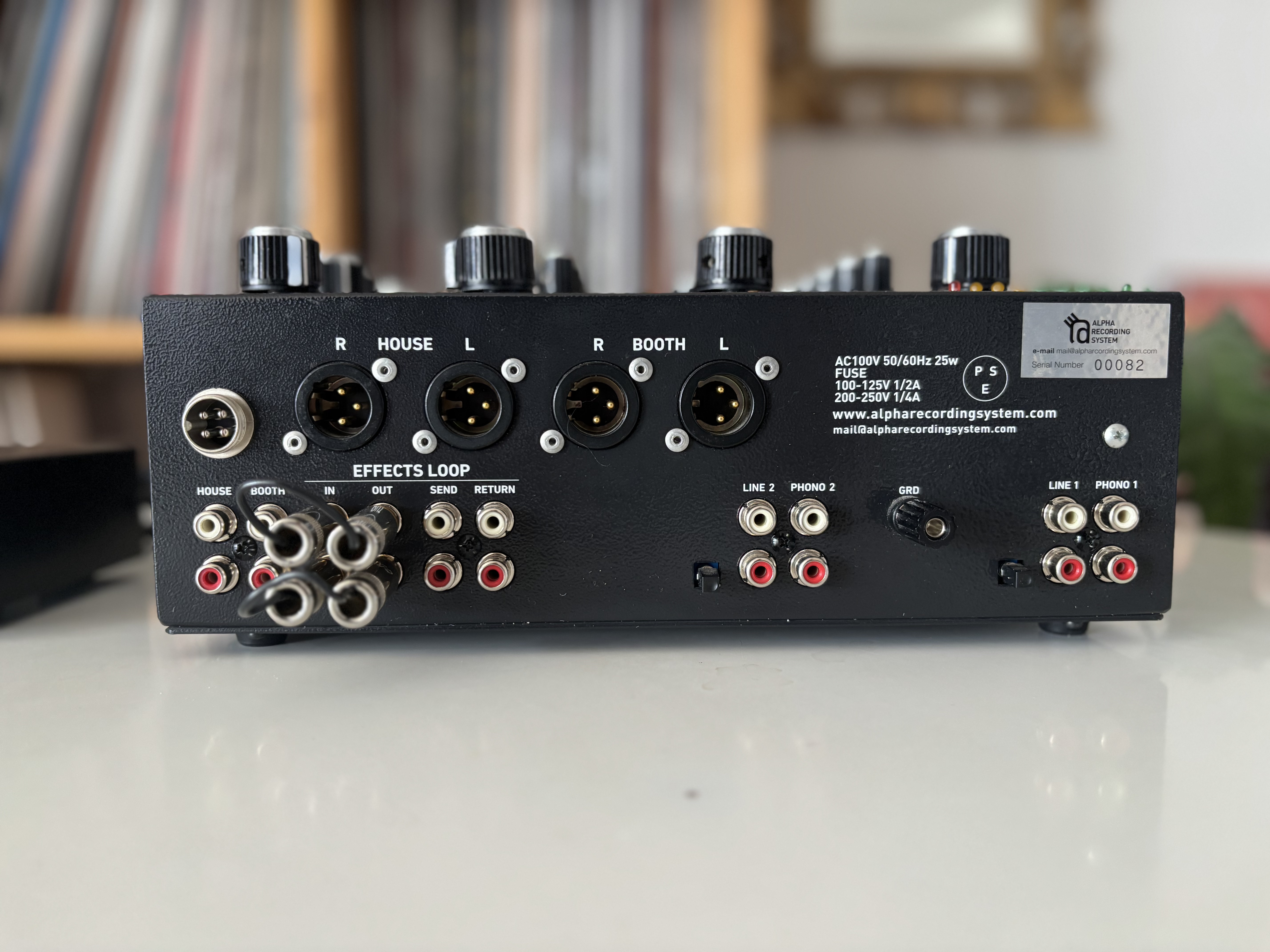

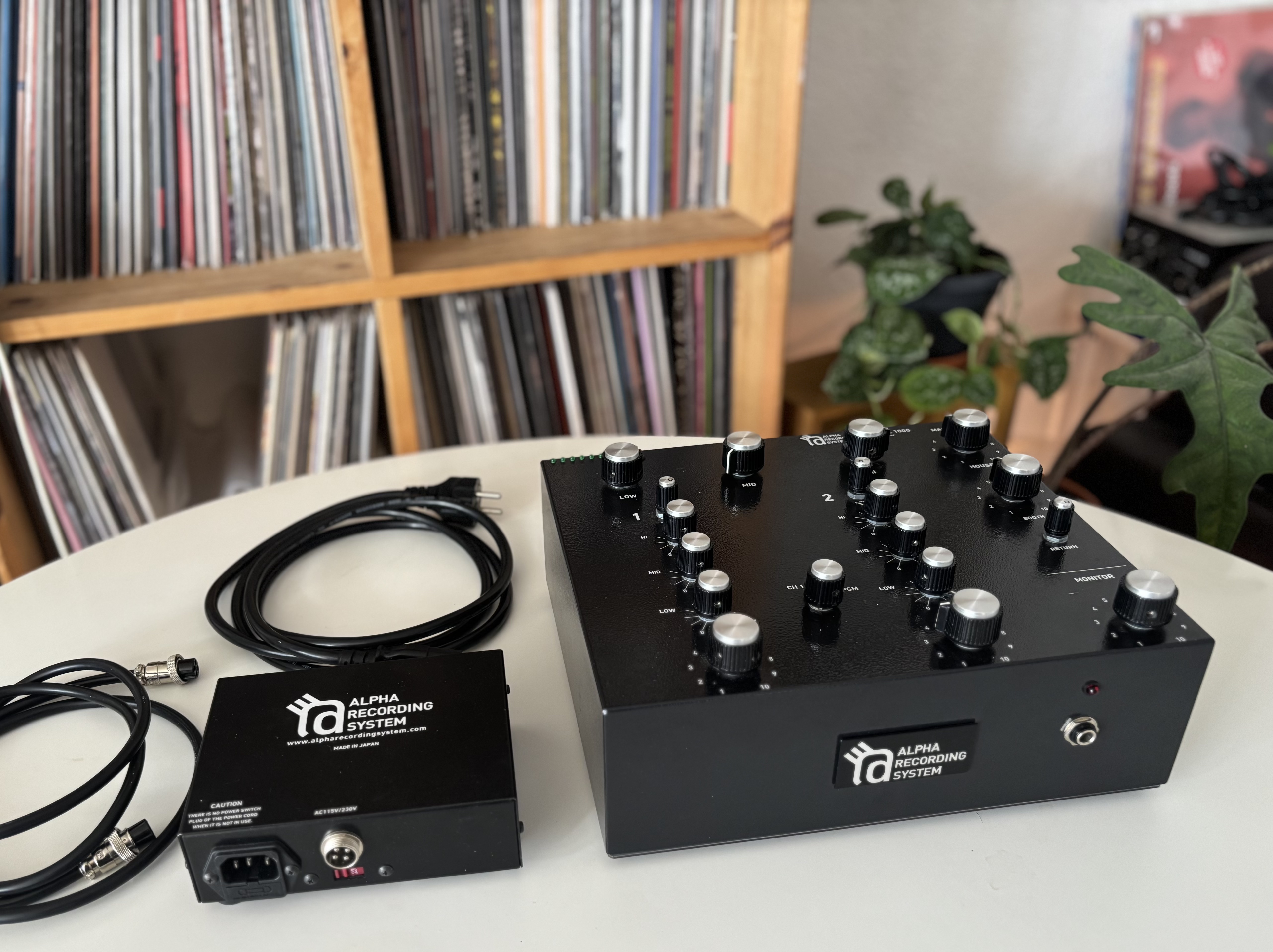

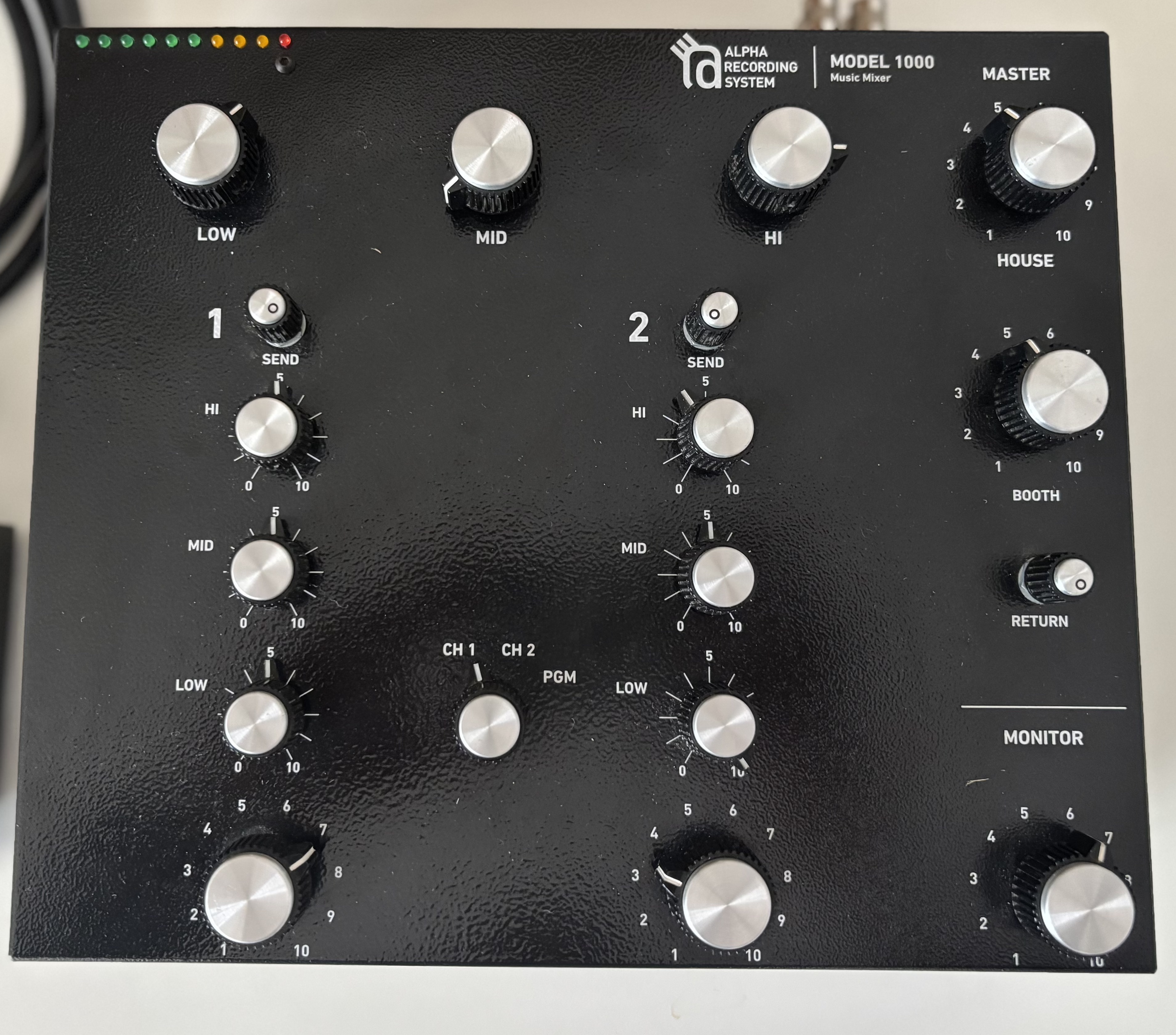

The ARS 1000 is a beautifully designed rotary mixer with deep and powerful low end and precise resolution on the highs creating a lovely warm sound. With 3 Band Isolators across each channel as well as the master and a "send out" for dub mixing plus original ARS rotary faders for a natural sensitive curve it is the ideal mixer for precise transitions through the mix. All expendables are made in Japan by ALPS for their durability giving years of service. With 2 phono and 2 line inputs there is plenty of connectability. Although is mixer is complex inside - on the outside the design is logical and simple to use. 3 band Isolator on Master Output. 3 band Isolator and SEND/RETURN on each channel. Spec: Frequency response +-1db 20hz-20khz Isolator Frequency response (NOT 3BAND EQ) 3BAND ISO 1-4Ch /Master 10 - 300 Hz / 300 - 3000 Hz / 3000 - 20000Hz Headphone Monitor switch: Cue/Pgm Input: 2 x Phono: 47K Ohm 2 x Line: 20K Ohm EFFECT LOOP 1: 20K Ohm EFFECT LOOP 2: 20K Ohm Output: HOUSE: RCA Unbalanced Impedance 600 Ohm/ XLR Balanced Impedance 50 Ohm BOOTH: RCA Unbalanced Impedance 600 Ohm/ XLR Balanced Impedance 50 Ohm EFFECT LOOP 1: RCA Unbalanced Impedance 600 Ohm EFFECT LOOP 2: RCA Unbalanced Impedance 600 Ohm Front panel colour: Black Power requirements: USA-115VAC/EU-230VAC (Switchable) Dimensions: (W)280 x (H)240 x (D)90 mm
