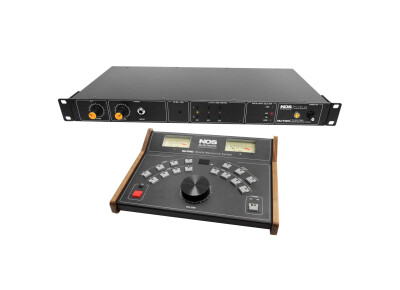

Contrôleur de monitoring New Old Sound Ltd. McTwo

New Old Sound Ltd. McTwo

Ajouter ce produit à

Mon ancien matos
Mon matos actuel
Mon futur matos

Fiche technique

Créée le 12/03/2016

Fabricant : New Old Sound Ltd.
Modèle : McTwo
Catégorie : Contrôleurs de monitoring
Autres dénominations : mc two, mc 2 , mc two studio monitoring system, mctwo studiomonitoringsystem, mctwostudiomonitoringsystem, mc 2 studio monitoring system

Studio Monitoring System

Features

Five stereo inputs (2 digital and 3 analog)
24-Bit DAC for Digital Inputs (>120dB dynamic range)
Passive Audio Path – mechanical relay and 1% resistors provides 64dB with 1dB steps Volume control
Three sets of monitor outputs; each with passive volume trims
TALKBACK microphone Internal/External with volume to feed CUE outputs
Large mechanical VU meters
Front panel headphone jacks with volume control
MAIN and CUE stereo output have independent input source
Stereo, (L+R) Mono, (L-R) Mono functions
Mute Function
Remote control ability is up to a distance of 10 meters

Tehnical SpecificationsAudio Inputs

Audio Inputs Type ¼” TRS Passive-Balanced

Input Impedance 10 KOhm

S/N Ratio Greater than 140dB

THD+N Less than .0005% (1KHz @ 0dBu)

Frequency Response Greater than 1MHz

Digital Inputs

Types XLR for AES and RCA for SPDIF 75Ohm-coax

Dynamic Range 120dB

THD+N .0025% (1KHz @ -1dBfs)

Maximum output +22dBu (Transformers-Balanced)

Sample Rates 44.1K, 48K, 88.2K, 96K, 176.4K, 192K

Audio Outputs Speakers

Type ¼” TRS Transformer-Balanced

Gain Trim Range -10dB to +10dB

Main Level Range -64dB to 0dB

Cue

Type ¼” TRS

Output Impedance 51Ohm

THD+N Less than .003% (1KHz @ 0dBu)

Frequency Response 10Hz-50KHz, -.5dB

Dim Attenuation 20dB (Talkback activated)

Headphones

Type ¼” TRS Active Stereo

Maximum Output 150mW/channel @ 60 Ohm load

THD+N .0015% (150mW/channel @ 60 Ohm load)

Frequency Response 10Hz-50KHz

Talkback

Dynamic Microphone Input Type XLR Female Balanced

Input Impedance 2400 Ohm

Internal Microphone Type Electret Condenser

Sensitivity -42dB

Mic Preamp Gain Range 15-55dB

Input Meters Mechanical VU meter

Power Supply

Type Transformer/Internal Linear

Power Consumption 40VA

Physical Main unit

Package Type 1U

Dimensions 19(W) X 1.75(H) X 5.50(D) inches

Weight 5.0lbs

Control unit

Dimensions 12.5(W) X 3.5(H) X 9.0(D) inches

Weight 2.5lbs
