Fiche technique
- Fabricant : Teile

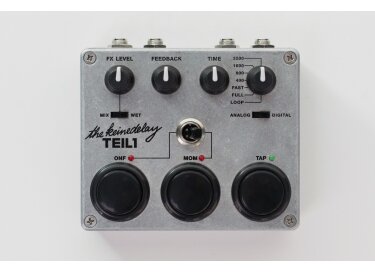

- Modèle : Teil1
- Catégorie : Effets & Multi-effets DJ
- Autres dénominations : teil 1
MODE SELECT:
3200: Delay time = 1600ms - 3200ms•
1600: Delay time = 800ms - 1600ms•
800: Delay time = 400ms - 800ms•
400: Delay time = 200ms - 400ms•
FAST: Delay time = 1ms - 50ms•
FULL: Delay time = 1ms - 3200ms•
LOOP: ( Max 12 sec.) Loops are recorded and repeated
FEEDBACK: Amount of delayed signal fed back to the input. More Feedback will result in more repetitions of your signal.In LOOP mode this pot controls the grain length when the TIME is stretched.
TIME: Speed of delay repetitions in the range of selected delay time mode (see MODE SELECT). As the knob is turned to the left, the delay time gets faster. In LOOP mode, it’s possible to speed up (turn left) or slow down (turn right) the entire loop with this knob. Centre position will be the original speed, however by default loops will play at original speed until the knob is first moved after recording.
ANALOG/DIGITAL: Switch between analog or digital sound.• DIGITAL is clean and clear, without colouring the sound of the repetitions.• ANALOG mode adds a high-cut filter and mild modulation of the delay time.
FX Level: Volume of delayed signal.
MIX/WET: Switch between either 100% WET delayed signal, or a MIX with the original signal.
Manuel complet ici: https://teile-elektronik.com/wp-content/uploads/2016/09/TEIL1-Manual.pdf?v=11aedd0e4327
