Fiche technique

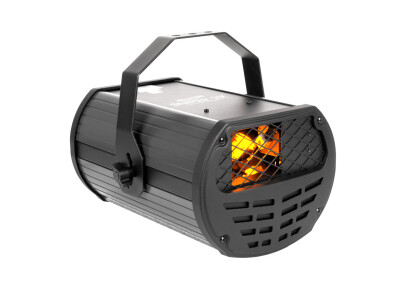

- Fabricant : Elation Professional
- Modèle : sniper 2r
- Catégorie : Effets DMX
- Autres dénominations : sniper2r, sniper 2 r, sniper2 r
132W Phillips™Platinum 2R Lamp
3° Precision Beam
3 Facet Rotating Prism
Liquid Sky, Laser Wave and Cone Effects
X / Y and Z High-Speed Mirror System
(14) Dichroic Colors + White
(17) Static Gobos
FEATURES
Multi Effect Luminaire, Beam, Scanner, Laser Simulator
3° Precision Beam
3 Facet Rotating Prism
X / Y and Z High-Speed Mirror System
SOURCE
132W Platinum 2R Lamp
6,000 Hour Average Life
PHOTOMETRIC DATA
Measured with 3° Beam Full On
45,010 LUX 4,181 FC @16.4’ (5m)
12,050 LUX 1,119 FC @32.8’ (10m)
5,633 LUX 523 FC @49.2’ (15m)
3,178 LUX 295 FC @65.6’ (20m)
2,276 LUX 212 FC @82.0’ (25m)
EFFECTS
Strobe
Electronic Dimmer
3 Facet Rotating Prism
Multiple Pattern Macros
COLOR
(14) Dichroic Colors + White
GOBOS
(17) Gobos + Open
CONTROL / CONNECTIONS
(4) DMX Channel Modes (14 / 16 / 18 / 20)
4 Button Control Panel
5pin DMX In/Out
powerCON In/Out
SIZE / WEIGHT
Length: 14.2" (361mm)
Width: 12.0" (305mm)
Vertical Height: 11.6" (295mm)
Weight: 21.0 lbs. (9.5 kg)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
220W Max Power Consumption
Multiple Unit Power Linking (max 7 @120V / 14 @230V)
104°F (40°C) Max Ambient Temperature
APPROVALS / RATINGS
CE | cETLus | IP20
INSTALLATION
Rigging: Clamps (Not Included)
Working Position: Any (360°)
Distribué par Elation professional
