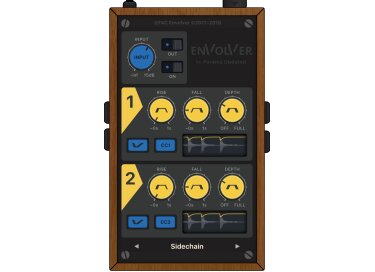

Fred Anton Corvest Envolver

Input

• Gain (up to 15db) Use it carefully
• Audio output activated or mute
• Bypass

Output envelope 1 (L) and 2 (R)

• Rise - defines the time the envelope takes to rise. Set to minimum to catch the transient.
• Fall - defines the time the envelope takes to fall. Set to maximum for more slew between peaks
• Depth - provides attenuation or amplification of the envelope

• Multi-waveform graph - envelope contour layered over input signal. Touch the graph to freeze the display temporarily.
• Invert - invert the envelope
• CC# - number of the control change messages where the envelope is sent (channel 1)
