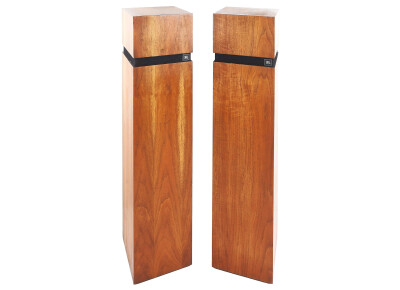

JBL Aquarius 4

• Fabricant : JBL
• Modèle : Aquarius 4
• Catégorie : Enceintes Hi-Fi
• Fiche créée le : 26/05/2024

SYSTEM COMPONENTS:

LOW FREQUENCY DRIVER: LE8T-2

Cone Kit:                              C8R2115

Nom. Impedance:          8 Ohm

Dynamic Test Input V:     4

Sweep Frequency Hz:   20-1200

D.C. Resistance Ohms: 5.1 min/5.9 max

Gap Gauge:                  .048"

Notes: Bond 2 foam pads to underside of dome.

If Not Serviceable, Replace With: LE8T-H

Visual Change:           Yes

Baffle Modification:       No

Exact Acoustic Replacement:

No. Use as last resort. Replace both units in a stereo pair.

Additional Parts Currently Available':

Dome:                       21219

Trim Gasket:              21812

HIGH FREQUENCY DRIVER: LE20-1

Diaphragm Kit:             D8RLE20

Nom. Impedance:          8 Ohm

Dynamic Test input V:     6

Sweep Frequency Hz:             1000-6000

D.C. Resistance Ohms:          3.7 min/4.2 max

Gap Gauge:            .029"

Notes:      Test With Network.

If Not Serviceable, Replace With: 035TiA

Visual Change:        Yes

Baffle Modification:  No

Exact Acoustic Replacement:  No. Use as last

resort. Replace both units in a stereo pair.

Additional Parts Currently Available':

Trim Ring:               21600

SYSTEM SPECIFICATIONS:

Nom. Impedance: 8 ohm

Power Capacity:   35 Watts Continuous Program

Crossover Frequency:        6000 Hz

Sensitivity:             73dB (1 Watt @ 15 Feet 4.57 m)  86.2dB (1 Watt @ 1 m)

Enclosure Dim:     40" x 10" x 10" D

102cm x 25cm x 25cm

Shipping Weight:  52 lbs. - 24 kg.

Additional Parts Currently Available':

Binding Posts: Red: 10243

Black: 10244

JBL consumer products NY 4/94 rev B

Distribué par Freevox
