Fiche technique

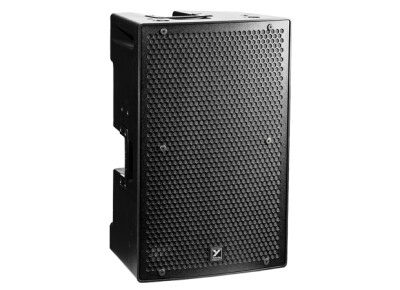

- Fabricant : Yorkville
- Modèle : PS12P
- Catégorie : Enceintes de sono amplifiées
- Fiche créée le : 24/10/2019
Specifications
System Type Active Loudspeaker
Active or Passive Active
Program Power (Watts) 1400 watts (4400 watts peak)
Max SPL (dB) 133dB Peak (128dB Continuous)
Frequency Response (Hz +/- 3dB) 45Hz to 26kHz
Crossover Frequency (Hz) 1.25kHz
Driver Configuration 12-inch / 1-inch
HF Driver(s) 38mm Voicecoil w/ 1-inch Exit
HF Dispersion (°H x °V) 85 x 50
HF Protection Thermal/Peak Limiter
LF Driver(s) 12-inch (3 inch voicecoil)
LF Protection Thermal/Multiband Peak Limiter
LF Processing Dynamic Bass Extension
Cooling Scheme Passive
Power Cable Detachable IEC
Power Consumption (typ/max) 2.4A/3.0A @ 120Vac 1.2/2.5 A @230Vac
Inputs 1/4-inch,XLR, RCA
Inputs - 1/4" Jacks Yes (x2)
Inputs - XLR Yes (x2)
Input Sensitivity (Vrms Sine) 1.23 Vrms +4dBu
Mixer Controls Sub Mode HPF, Bass Boost, Mixer Enable
Level Controls Master Level, Mic Level, Line Level
LED Indicators Power, Limit, Clip
Bar Handles Yes
Pole Mount Adapter (1 3/8"-3.5cm) Yes
Enclosure Materials ABS
Baffle Material ABS
Grille Perforated Metal
Dimensions (DWH xbackW, inches) 13.5 x 16.7 x 26.5
Dimensions (DWH xbackW, cm) 34.3 x 42.5 x 66.7
Weight (lbs/kg) 60 / 26.3
Distribué par Major Audio
Manuels et autres fichiers
