Fiche technique
- Fabricant : Yorkville

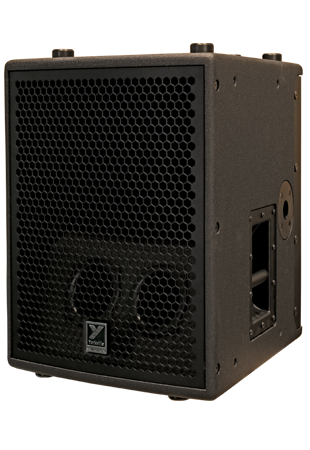

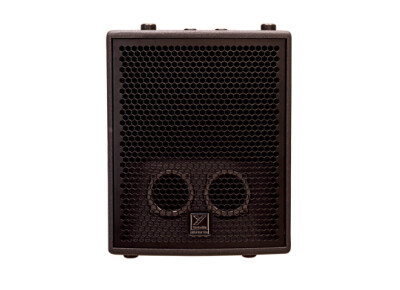

- Modèle : SA102
- Catégorie : Enceintes de sono amplifiées
- Autres dénominations : sa 102
Specifications
|
System Type |
Active Subwoofer |
|
Active or Passive |
Active |
|
Program Power (Watts) |
1200 Watts Program (2400 Watts Peak) |
|
Biampable |
Biamp |
|
Measured Max SPL (C-Weighted, Max Hold) |
127 dB Cont. 133 dB Peak |
|
Frequency Response (Hz +/- 3dB) |
60Hz-18k |
|
30x45 Asymmetrical (7 Up, 38 Down) |
|
|
Crossover Frequency (Hz) |
750Hz |
|
Cabinet Configuration |
Patented Synergy Horn and Paraline Lens Technology |
|
Driver Configuration |
1x10" LF Woofer, 1xHF Compression Driver |
|
HF Driver(s) |
4" Diaphragm/Voice Coil, Neo B&C DE1090TN |
|
HF Program Power (Watts) |
120 watts Program, 240 watts Peak |
|
HF Impedance (Ohms) |
8 ohm Load |
|
HF Protection |
Peak and Average Limiting |
|
LF Driver(s) |
1x10" Neo Woofer with 3" Voice Coil B&C 10NW76 |
|
LF Program Power(Watts) |
400 watts Program, 800 watts Peak |
|
LF Impedance (Ohms) |
2 ohm Load |
|
LF Protection |
Excursion, RMS |
|
HF Power Amplifier (Watts) |
300 watts Program, 500 watts Peak |
|
HF Amplifier Type |
3-Tier Class H |
|
LF Power Amplifier (Watts) |
900 watts Program, 1600 watts Peak |
|
LF Amplifier Type |
Class D |
|
Cooling Scheme |
Convection |
|
Power Cable |
Removable Locking Powercon True Input and Loop Thru Output |
|
Power Switch |
Yes |
|
Power Consumption |
2VA/3.2VA |
|
Inputs |
1 XLR, 2 x XLR Loop |
|
Input Sensitivity (Vrms Sine) |
Line in 1.4 at center, 0.56 at max |
|
Level Controls |
Volume |
|
EQ Controls |
HF Boost select, Fullrange/Sub switch |
|
LED Indicators |
Power, Limit, Clip |
|
Enclosure Materials |
Multiply 15mm Birch Plywood |
|
Standard Rigging Hardware |
1/4-20 Eyebolts (4 Top, 4 Bottom) |
|
Stacking Feature |
Interlocking UHMW Feet (Top and Bottom) |
|
Covering / Finish |
Paint |
|
Dimensions (DWH xbackW, inches) |
21.250 x 17.375 x 22.750 x 6.750 |
|
Dimensions (DWH xbackW, cm) |
54 x 45 x 58 x 17 |
|
Weight (lbs/kg) |
69/31.3 |
