Fiche technique
- Fabricant : Crest Audio
- Modèle : V12
- Catégorie : Consoles analogiques
- Fiche créée le : 31/01/2010

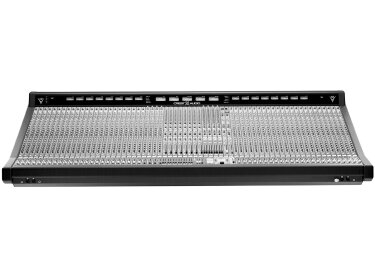

Crest Audio top-of-the-line FOH mixer is the V12 (similar class and feature to the Midas XL4) is well-suited for a range of live concert and theatrical applications. The V12 is available in several frame sizes, from 24- to 48-input, all provided with an additional four stereo-input channels. Four-band parametric EQ is available on all mono and stereo-input modules, which also offer 18dB/octave highpass filters and true LCR panning. There are 12 VCA groups for level and mute control, and the console has up to eight mono and five stereo-output mixes, plus 28 additional outputs. Fully balanced busing increases immunity to outside interference, and programmable muting of inputs and all outputs is standard. An optional link system can accommodate up to three main consoles and two sidecar expanders to create a 212 mono/stereo-input console.
The sonic performance of the V12 is sure to please discriminating sound engineers and audiences alike, even when the console is pushed hard in demanding applications.
In order to maintain high-headroom with low-noise,V12 circuits exclusively employ the latest-generation of integrated circuits (operated on +/-20 volt rails) and studio-grade proprietary-design microphone pre-amplifiers.
Dual-VCA elements are the best available from THAT Corporation,
offering improved performance over single-element VCA designs.
Phase-shift has received special attention in the design, revealing less
than five-degrees of phase-shift on lower frequencies and less than
18-degrees on upper frequencies ... better performance than that
observed even with known top class analog consoles.
Prices for the V12 range from $76,000 for a 52-input model (48 mono plus four stereo-input channels) to $67,000 for the 44-input, $58,000 for the 36-input and $49,000 for the 28-input. The 28-input V12 sidecar is $44,000.
Distribué par audia
