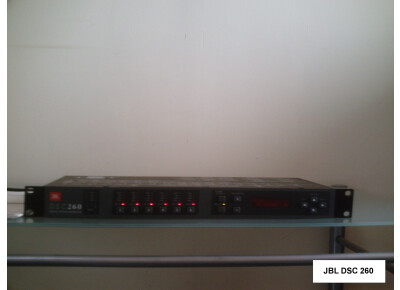

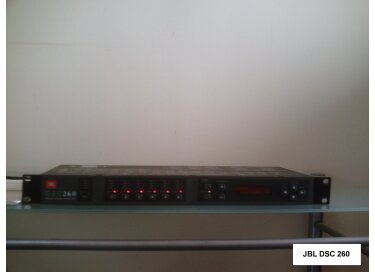

JBL DSC 260

• Fabricant : JBL
• Modèle : DSC 260
• Catégorie : Filtres actifs
• Fiche créée le : 20/02/2011

Key Features:
- Two Channel Digital Controller : Two channel controller with six outputs assignable to either or both inputs
- Comprehensive Crossover : 12, 18, 24 or 48 dB/octave
- Crossover Filters : Butterworth or Linkwitz-Riley Slope Topologies
- Mid-Filter Type Limiters with variable threshold
- Equalization and Signal Delay : Signal Delay of up to 600 ms in 21ms steps on inputs and outputs, up to 30 bands of assignable
- Parametric EQ
- Convenient Storage and Recall, pre programmed for JBL Systems, 60 user defined presets, remote Midi Recall

Specifications:
- Inputs: 2 channels, Max. level +20dBu, 10kOhms impedance, Electronically Balanced, XLR connectors, pin 2+
- Outputs: 6 channels, individually configurable, Max level +10dBu into 600 Ohms, Electronically Balanced,
XLR connectors, pin 2+
- Dynamic Range: >100 dB
- THD: <0.05%, 20Hz-20kHz, @+10dBu
- Configuration: Stereo 2 and 3 way, Mono 4, 5 and 6 way
- Crossover: Butterworth or Linkwitz-Riley with slopes of 12, 18, 24 or 48dB per octave
- Front Panel Controls: Softkeys for programming functions. Mute on each output and LED level meters on each input and outputs with Clip, mute and limit
- Display: 2 x 16 Character Backlit LCD
- Limiters: Mid Band Limiters with variable threshold of -10 to +10dBu
- Frequency Response: 20Hz - 20kHz <+-0.5dB
- Power Requirement: 100-240 Volts 50/60Hz +-10%
- Sample Rate: 46.875kHz
- Assignable Equalization: An array of between 8 and 30 bands of parametric equalizer can be assigned to the inputs and outputs. Dependant upon slopes of crossovers used.
- Dimensions: 44.4 x 483 x 203 HxWxD 1.75" x 19" x 8"
- Weight: 2.8 kg (6.2 lbs)

Distribué par Freevox
