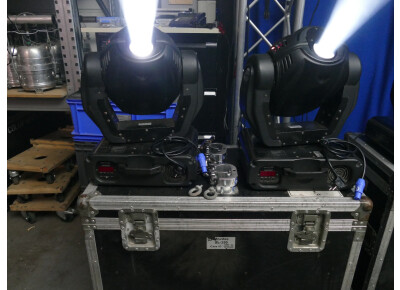

Movitec SL-350

• Fabricant : Movitec
• Modèle : SL-350
• Catégorie : Lyres
• Fiche créée le : 19/04/2022

Power supply:
EU-model:Voltage..........................208/230/240 V AC, 50/60 Hz ~
-Fuse..............................T 3.15 A@230V
US-model: Voltage............................100/120/208/230/240 V AC, 50/60Hz ~
-Fuse..............................T 6.3 A@120V
-Power consumption.........500VA
Lamps:
Philips MSD 250 or MSD250/2 GY9.5
Optical system:
-High luminous-efficiency parabolic mirror and double condenser system
-Multi-step zoom (15°,18°,21°,24°,26°)
-All lenses are anti-reflection coated
Colours:
Colour - wheel :
- 7 dichroic-filters plus white,colour-wheel with variable rotation speed in both directions
Colour/static gobo - wheel:
- 3 dichroic-filters plus white
Static gobos:
- 3 dichroic gobos plus an open position
- Outside diameter= 37.3 mm, image diameter= 31 mm,thickness=1.1mm
- Material:high temperature borofloat or better glass
Rotating gobos:
-Rotating gobo-wheel with 5 interchangeable rotating gobos plus open
-Rotating gobo-wheel cont. rotation
-4 metal gobos and 1 glass gobo rotating in both directions at different speeds
-Rotating gobos can be turned by 360°,the adjusted position is memorized
-Gobo indexing
-Metal gobos:outside diameter= 37.3 mm, image diameter =31.5 mm,
stainless steel,thickness=0.15mm
-Glass gobo:outside diameter= 37.3 mm, image diameter =31.5 mm,high temperature borofloat or
better glass, max.thickness=4mm
Strobe:
-Strobe effect with variable speed (1 - 10 flashes per second)
-Preprogrammed variable/random strobe and dimmer pulse-effects
Dimmer:
-Smooth dimmer from 0 - 100 %
Prism:
-3-facet-prism rotating in both directions at different speeds
-Macro-function for rotating gobos/rotating prism combinations
Focus:
-Remotely controllable motorized focus from near to far
Motors:
-10 high quality stepping-motors controlled by microprocessors
